Laminated Tube Filling And Sealing Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-6A
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Laminated Tube Ultrasonic Filling And Sealing Machine Application: Food,Medical,Chemical,Commodity,Beverage
Capacity: 100BPH-1500BPH Qualified Rate: More Than 99%
Machine Size: 800x900x1700 Mm Warranty: 1 Year Warranty
Feature: Ultrasonic Sealing, PLC Control, Touch Screen Hopper Volume: 30-40L(optional)
Packaging Material: Plastic Soft Tube, Aluminum Plastic Tube,Laminated Tube Driven Type: Electric Pneumatic Combined
Weight: More Than 190kg
High Light:

Laminated Tube Filling And Sealing Machine

,

100BPH Tube Filling And Sealing Machine

,

190kg Tube Filling And Sealing Machine


Product Description

Laminated Tube Ultrasonic Soft Tube Filling Machine And Sealing Machine



Application:

  • This machine is designed specially for plastic soft tube filling and sealing. (load tubes by hand)
  • It works for both liquid and sticky products like cream, honey, tooth paste etc
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on. Same machine can work for both plastic and plastic aluminium composite



Feature:

  • The filling volume is adjustable on touch screen. It can fill 5-300ml liquid or sticky products.
  • Ultrasonic sealing method, sealing effect is good. And it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark
  • it has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up



Work flow:

  • Load tube by hand
  • Orientation automatically
  • Filling automatically
  • Ultrasonic sealing
  • Tail cutting automatically



Parameter:



Speed  100-1500 bph
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >99%
Ultrasonic power rate 1.0KW
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Machine size 800*900*1700mm

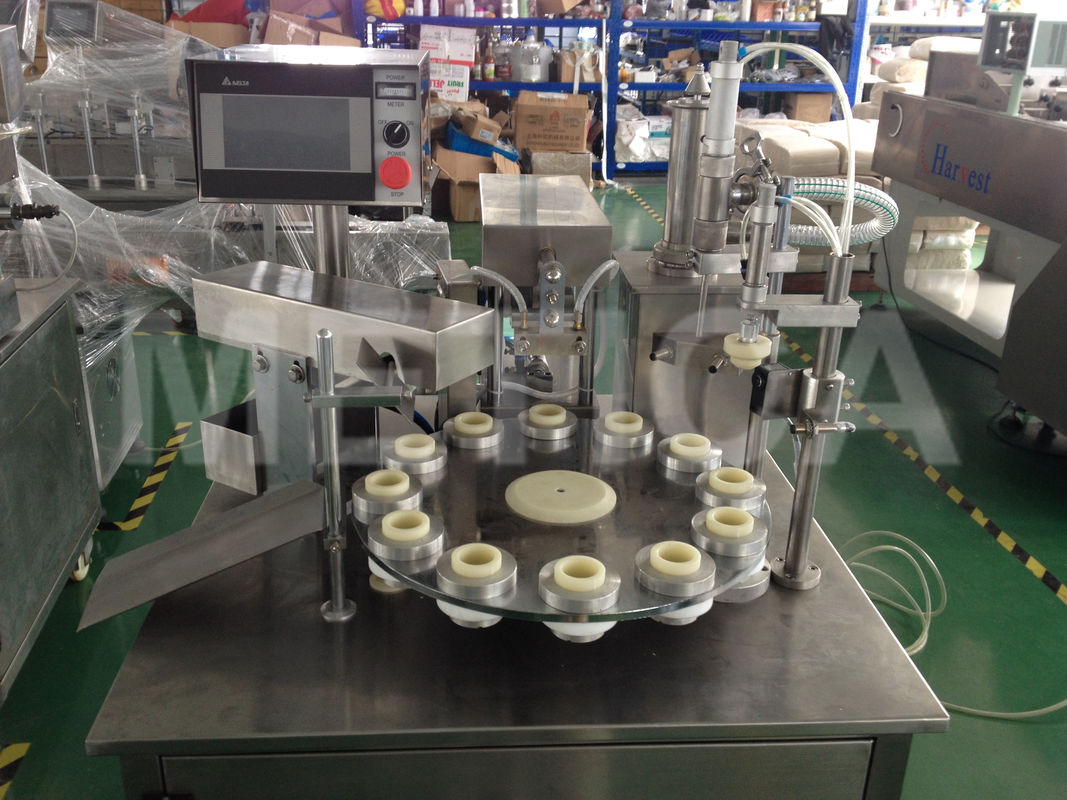

Laminated Tube Filling And Sealing Machine 0

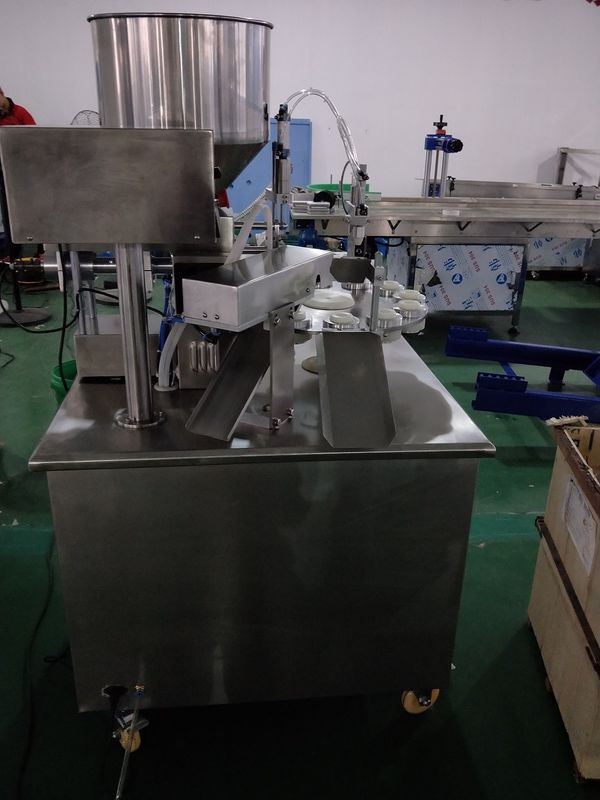

Laminated Tube Filling And Sealing Machine 1

Laminated Tube Filling And Sealing Machine 2

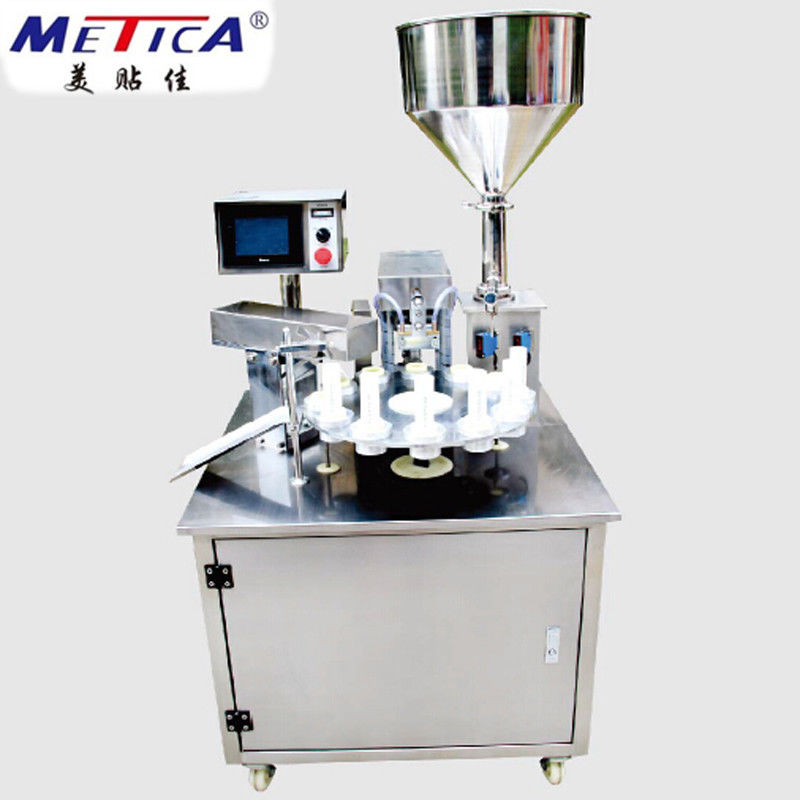

Laminated Tube Filling And Sealing Machine 3

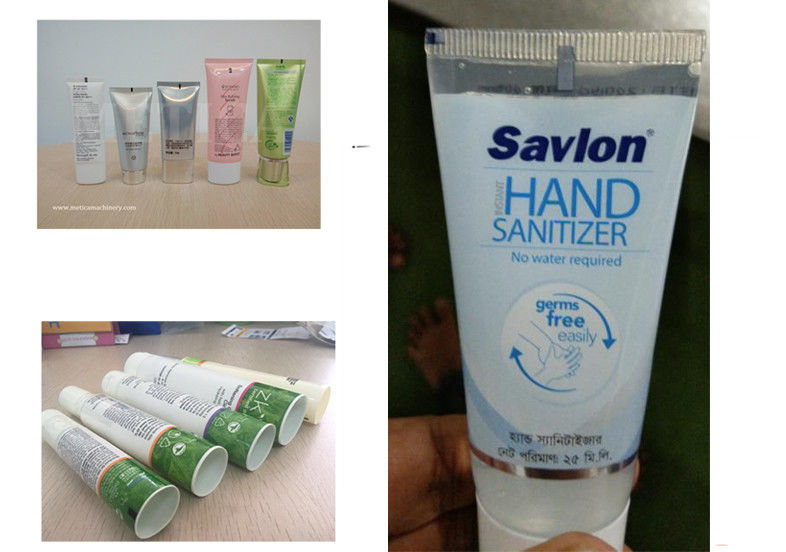

Samples display:

Laminated Tube Filling And Sealing Machine 4
