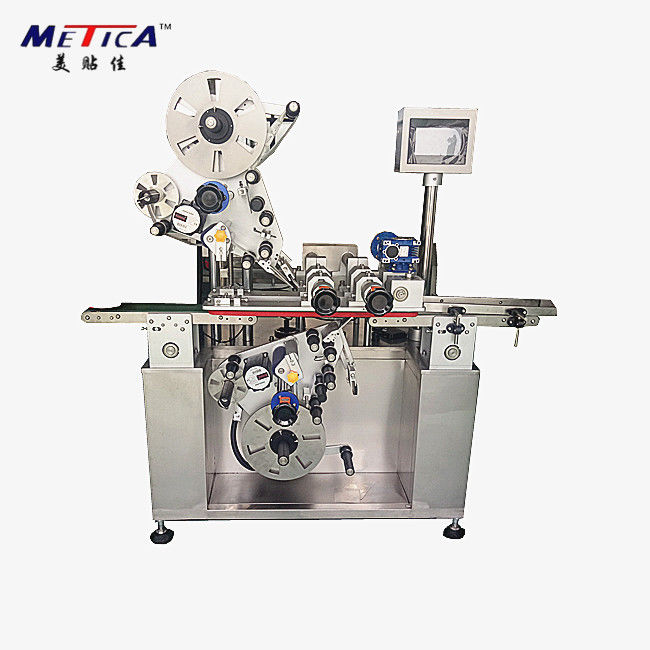

2 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-230
Minimum Order Quantity: 1 SET
Price: USD 6000-12000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Compact Powder Box Top And Bottom Labeling Machine, Box Labeling Machine Application: Cosmetics,Food,Beverage,Medical...
Capacity: 1000-1200 BPH (depends On Product Size) Labeling Accuracy: About +/-1mm
Machine Size: 160x80x140 Cm³ Warranty: 12-month
Automatic Grade: Fully Automatic Labeling Type: Adhesive Sticker Labeling Machine
Voltage: 220V 50/60HZ Packaging Type: Box/Bottle/Jars
High Light:

Label Applicator Machine For Small Bottles 220V

,

Label Applicator Machine 50hz


Product Description

Compact Powder Box Automatic Top And Bottom Labeling Machine Bottle Labeling Machine



Labeling Application

  • Use:widely used in cosmetics industry.​

  • Label applicable: adhesive labels; adhesive films; electronic supervision code, bar code etc.

  • The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely (it can be fixed easily after adjustment). All these make the change of different products and winding of labels more simple and saving time.



Labeling Machines Features

  • 2 Labeling Heads, Special designed for Labeling from Top to the objects, and it's adjustable for different sized products
  • Labeling machine produced accordance with GMP Standard and CE certificated
  • Automatic Labeling, work independently or connected to a production line
  • Easy to operate on Touch Screen, labeling controlled by PLC
  • Labeling Steadily, strong S/S frame construction
  • High Labeling Speed and Labeling Accuracy, no products, no labeling



Option Function For The Labeling Machine :

  • Coder Printer to print batch number, production date, expiry date and so on on the label when labeling
  • Clear Label sensor for transparent label
  • Remote control is available



Parameter:

Speed 600-12000 bph (related to product size)
Labeling accuracy  +/- 1mm
Products applicable 15<width≤250mm(can be customized), length>10mm
labels applicable adhesive stickers/opaque or transparent
10≤width≤150mm, 10mm≤length≤1500mm
Power supply 220V 50hz 1kw
Application

stick labels on paper, box...

Air supply 0.6MPa(If with a code printer)
Feature PLC, Touch Screen

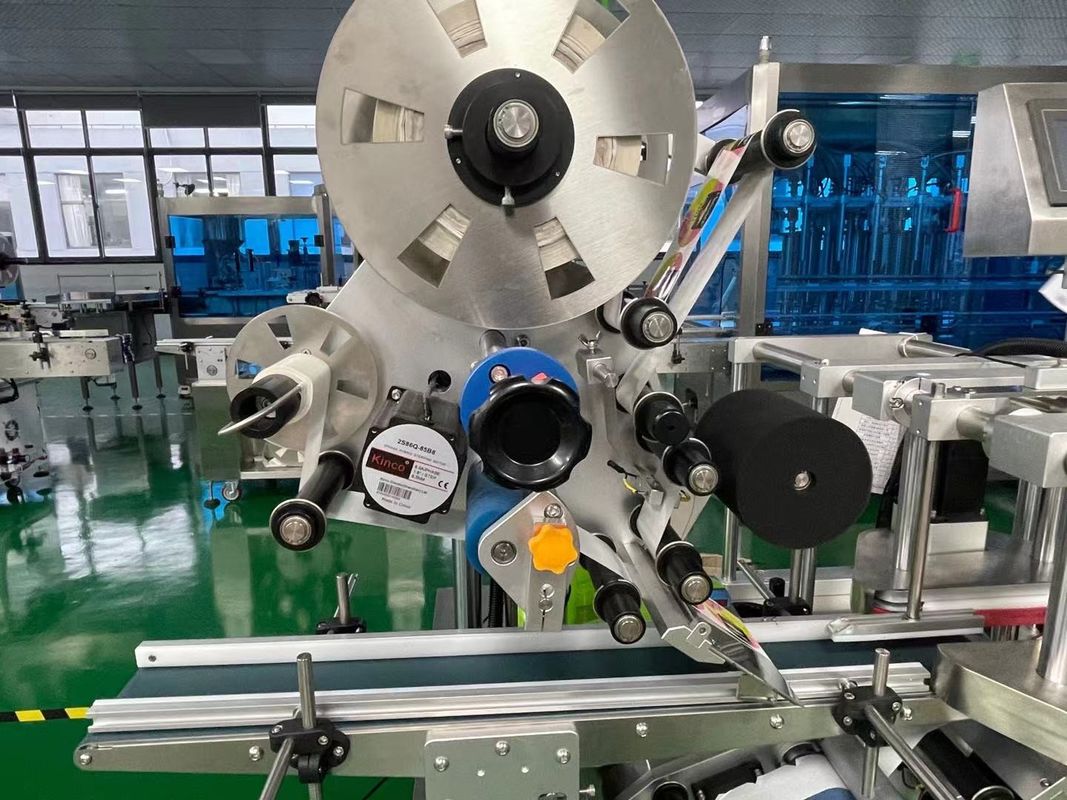

2 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz 02 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz 12 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz 22 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz 3

2 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz 4

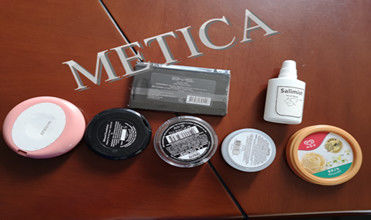

Samples display:

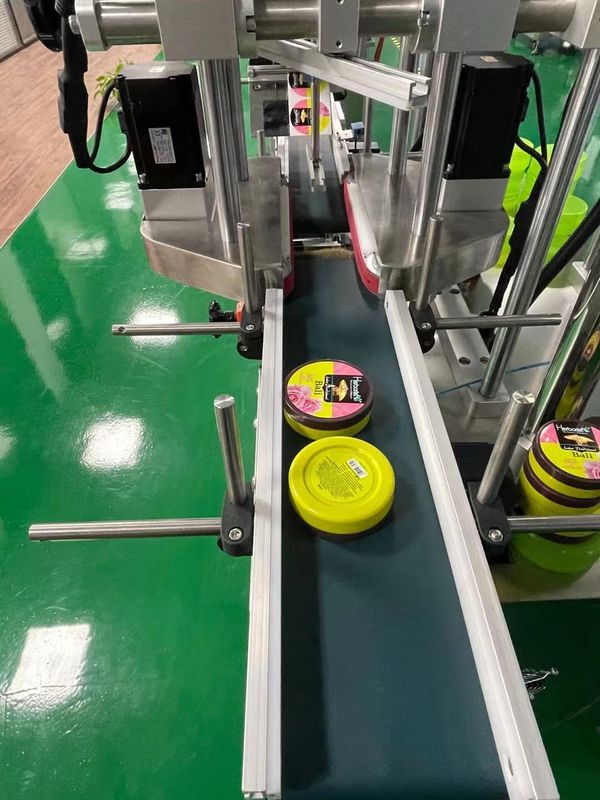

2 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz 5





2 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz 62 Labeling Heads Label Applicator Machine For Small Bottles 220V 50hz 7
