50-500ml Deodorant Liquid Filling And Capping Machine Bottle Filler Capper

50-500ml Deodorant Liquid Filling And Capping Machine Bottle Filler Capper

400kg Liquid Filling And Capping Machine

500ml Liquid Filling And Capping Machine

Deodorant Bottle Filler Capper

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTFC-1000

Contact Us
Request A Quote
Product Details
Name:
Roll-on Bottle Filling Capping Machine
Application:
Chemical,Medical,Commodity
Capacity:
1000-2000BPH
Filling Accuracy:
>=99%
Machine Size:
2500*1200*1650 Mm
Warranty:
One Year
Type:
Filling Machine, Capping Machine In One
Automatic Grade:
Automatic
Filling Volume:
50-500ml
Weight:
400kg
Bottle Type:
Plastic Bottle And Glass Bottle
Function:
Roll-on Bottle Filling And Capping In One
High Light:

400kg Liquid Filling And Capping Machine

,

500ml Liquid Filling And Capping Machine

,

Deodorant Bottle Filler Capper

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 10000-20000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
25-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

50-500ml Deodorant Filling Plugging-In Capping In One Roll-On Bottle Monoblock Filling And Capping Machine



Brief introduction

  • This machine is widely used in pharmaceutical, health care industries 10-500ml plastic (glass) bottle filling capping, such as alcohol,hand soap,oral liquid, topical agent, syrup, vaccine, nails water etc.
  • It adopts 4 nozzles piston type filling, rotating plate positioning capping method. No bubble, no spill. Filling accurate, good performance, easy to maintain and operate.
  • It is advised to choose dust cover, glass pump, stainless steel pump, ceramic pump or peristaltic pump.

Spec and Feature

  • Different bottle need to change the table and other lifter parts.
  • Anti-dripping tray,If customer need,we can add the anti-dripping tray near the filling nozzles.
  • Four filling nozzles and one capping station,one capping head
  • control by PLC,easy to operate,Siemens touch screen and PLC.
  • The filling capping machine in one can be applicable to the glass bottle and plastic bottle.Widely used in the cosmetics, health care industries.
  • Cap applicable: common screw cap,anti-theft ring screw cap,spiral cap,press-in-cap,aluminum cap

Parameter

Speed  1200-2000bph (customizable)
Filling accuracy  >=99%
Filling volume 100-500ml(can be customized)
Filling method

servo motor + piston

Power supply 220V 50hz 2kw
Bottles applicable glass dropper bottle, plastic bottle
Caps applicable press caps/ screw caps/Dropper cap

Application

Liquid or viscosity liquid
Feature PLC, touch screen, fully automatic

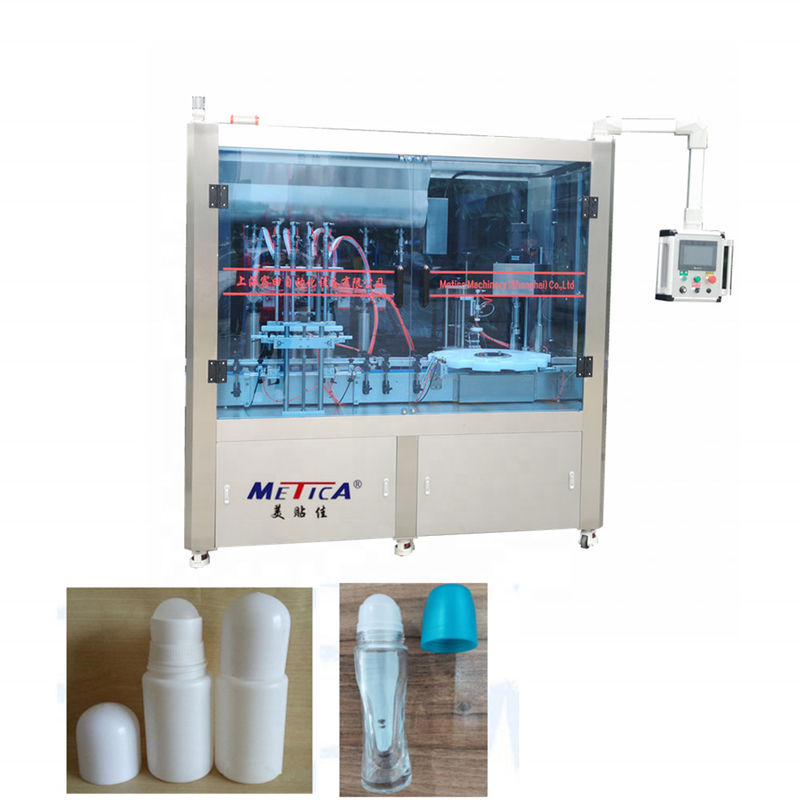

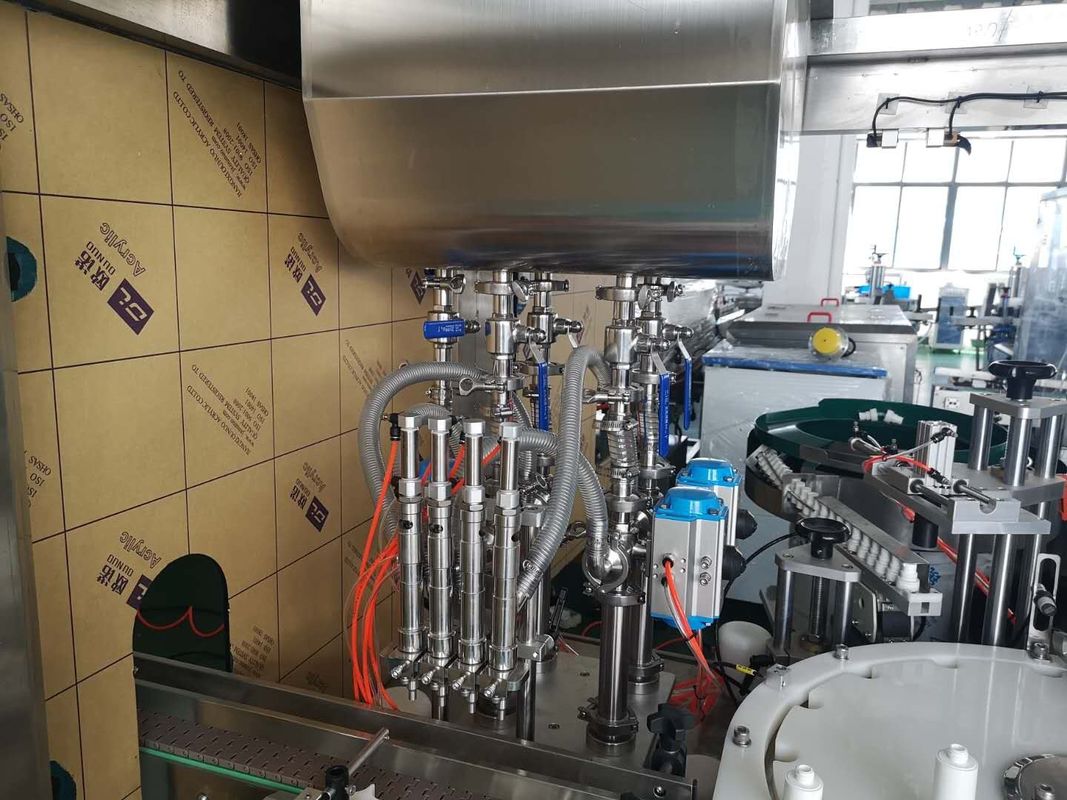

50-500ml Deodorant Liquid Filling And Capping Machine Bottle Filler Capper 0

50-500ml Deodorant Liquid Filling And Capping Machine Bottle Filler Capper 1

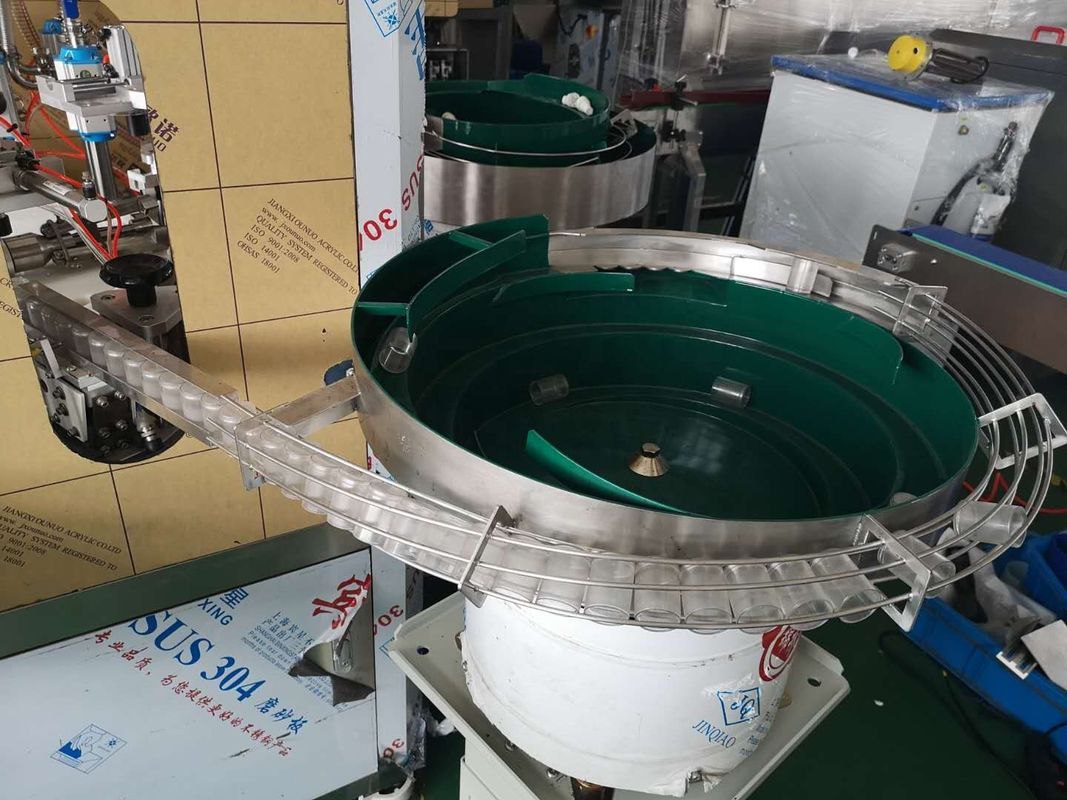

Cap feeder:

50-500ml Deodorant Liquid Filling And Capping Machine Bottle Filler Capper 2

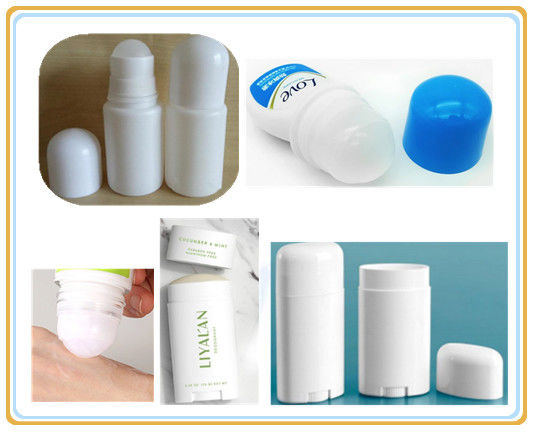

Samples display:



50-500ml Deodorant Liquid Filling And Capping Machine Bottle Filler Capper 3
