Peanut Butter Jam Filling Capping Labeling Machine 1500bph-3000bph

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-3000
Minimum Order Quantity: 1 SET
Price: USD 10000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Peanut Butter And Jam Filling Machine Capacity: 1200-3000 BPH(related To Filling Volume)
Filling Accuracy: More Than 99% Length Of The Line: Around 9000 Mm
Warranty: One Year Warranty Application: Beverage,Food,Chemical,Medical Etc..
Bottle Type: Plastic Bottle, Glass Bottle,PET Plastic Bottle... Other Name: Peanut Butter Bottling Machine Line
Driven Type: Electric Packaging Type: Bottles,Cans,jars
High Light:

Peanut Jam Filling Capping Labeling Machine

,

Filling Capping Labeling Machine 1500bph

,

peanut butter filling machine 3000bph


Product Description

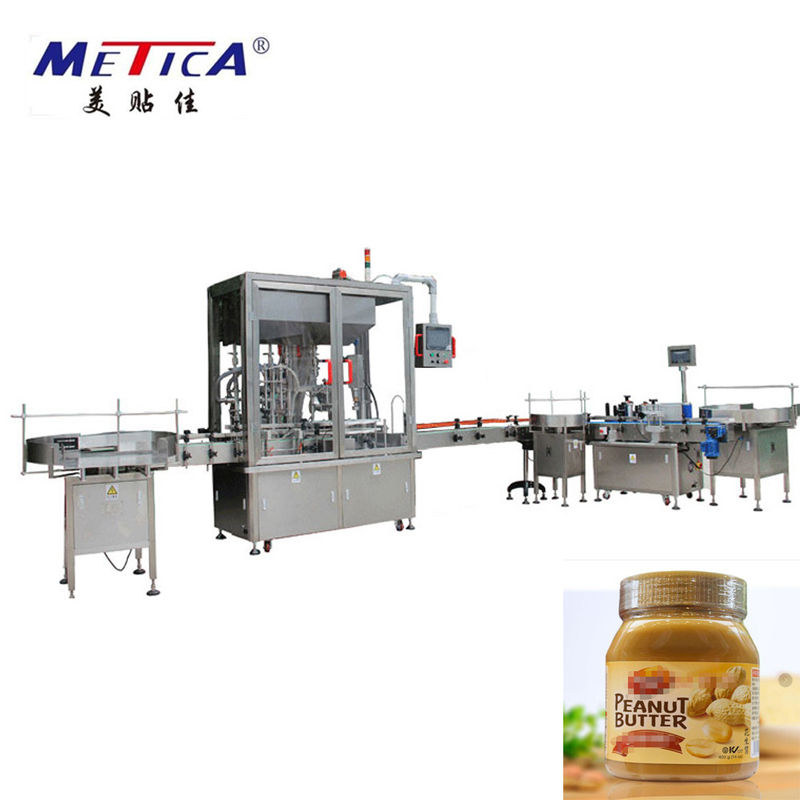

Food Grade Automatic Peanut Butter And Jam Filling Capping Labeling Machine Pet Bottle Bottling Production Line



Application

  • This bottling line is widely used in Beverage,Food,Chemical,Medical industries 100-1000 ml plastic (glass) bottle filling capping, such as tomato sauce, jam, syrup and similar products
  • It adopts 4 nozzles piston type filling, rotating plate positioning capping method. No bubble, no spill. Filling accurate, good performance, easy to maintain and operate.

Spec and Feature

  • The line includes: Turn Table, Filler and Screw Capper in one, Labeler
  • Automatic run, PLC control, Operate on Touch Screen,
  • The contact parts use 316L stainless steel
  • Suitable for the volume 10-1000 ml liquid or low viscosity products
  • Applicable for many types of caps: screw caps, Anti-Theft ring screw caps, Spiral Caps, Aluminium Caps and etc



Work process:

  • 1)Put bottles on turn table feeding bottles to filling machine automatically
  • 2)Bottles conveyed to filling machine to fill automatically
  • 3)Bottle conveyed to capping machine cap automatically after filling
  • 4)Bottle conveyed to labeling machine label automatically
  • 5)Collect bottles with a turn table(optional)



Speed  1500-3000bph (customizable)
Filling accuracy  >=99%
Filling volume 50-500ml,100-1000mll(customizable)
Filling method piston + servo motor driven, diving nozzles
Power supply 220V 50hz 5kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Total length 9meters
Feature PLC, touch screen, tank, level meter







Peanut Butter Jam Filling Capping Labeling Machine 1500bph-3000bph 0

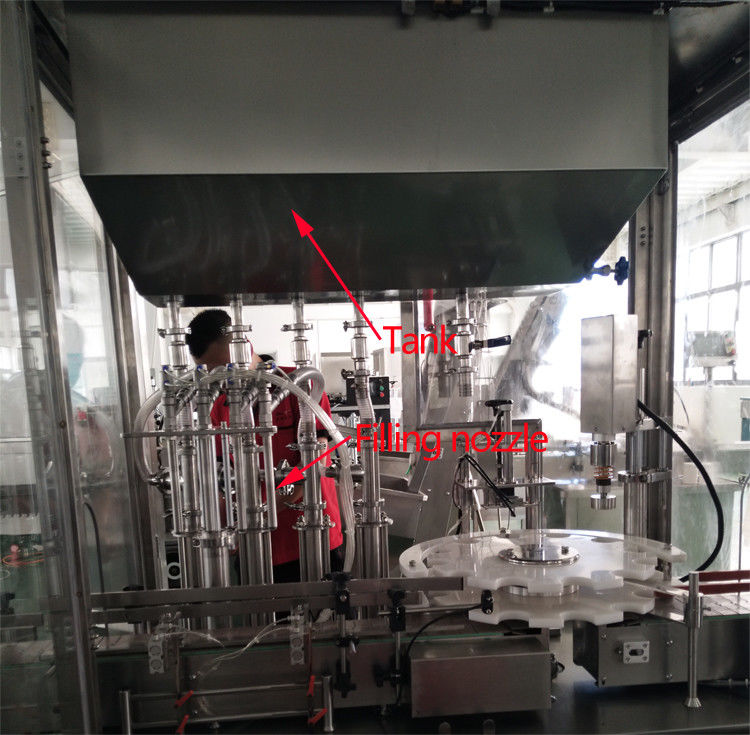

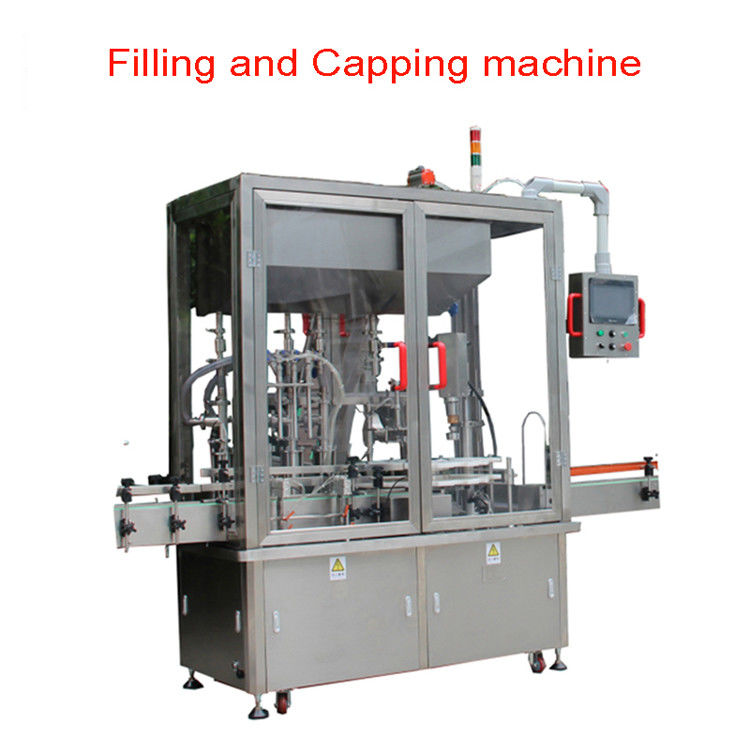

Filling capping machine in one:

Peanut Butter Jam Filling Capping Labeling Machine 1500bph-3000bph 1Peanut Butter Jam Filling Capping Labeling Machine 1500bph-3000bph 2

Peanut Butter Jam Filling Capping Labeling Machine 1500bph-3000bph 3



Labeling machine:

Peanut Butter Jam Filling Capping Labeling Machine 1500bph-3000bph 4





Samples display:

Peanut Butter Jam Filling Capping Labeling Machine 1500bph-3000bph 5
