Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Price: USD 13000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Peanut Butter Filling Machine Application: For Peanut Butter, Honey, Sauce, Edible Oil Filling
Capacity: 1000-1500 BPH Filling Accuracy: More Than 99%
Machine Size: 2400x1350x1730 Mm Warranty: 1 Year Warranty
Automatic Grade: Automatically Driven Type: Electric;pneumatic
Voltage: 110V/220V, 50/60HZ Packaging Type: Bottles,Cans,Barrel, Jars And Other Container
Filling System: Servo Motor And Piston Driven, Diving
High Light:

Automatic Bottle Filling Machine 1500bph

,

Peanut Butter Filling Machine 1000bph

,

60HZ Bottle Filling Machine


Product Description

Automatic peanut butter and paste products Bottling machine Bottle Filling Machine



Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as honey, sauce, jam and edible oil...
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.

Spec and Feature

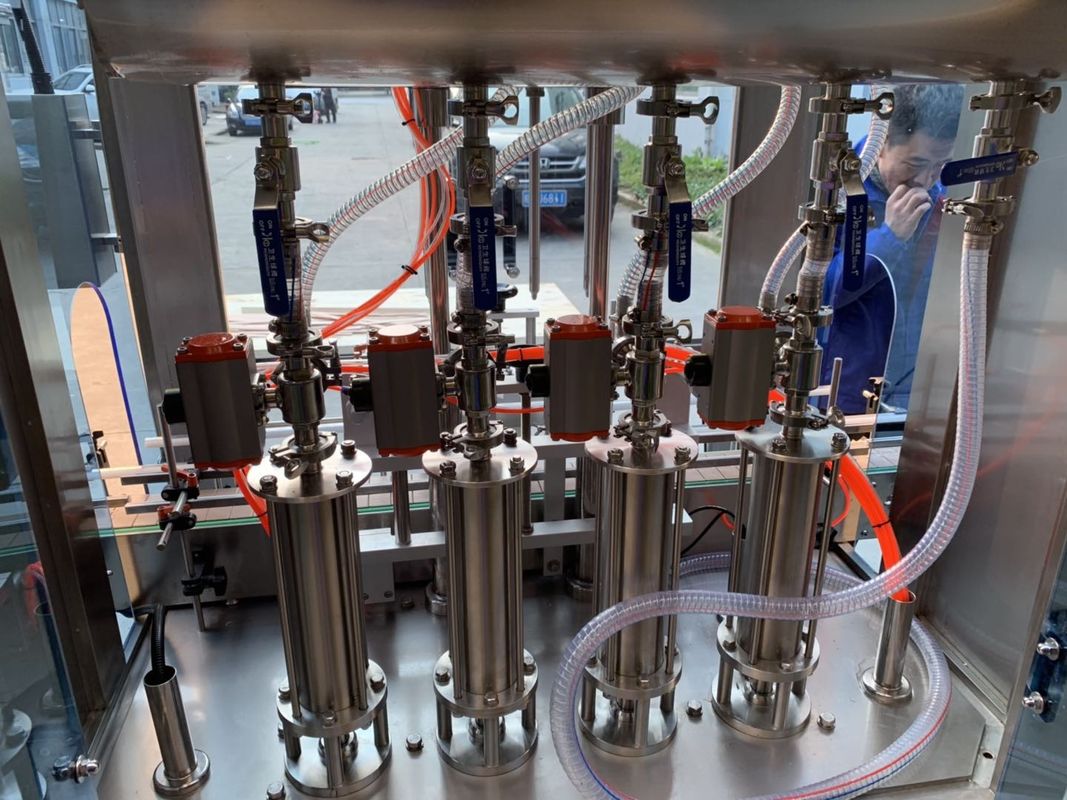

  • Adopts piston + servo motor driven fillin system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • Compact models, operation stability, simple operation, easy cleaning

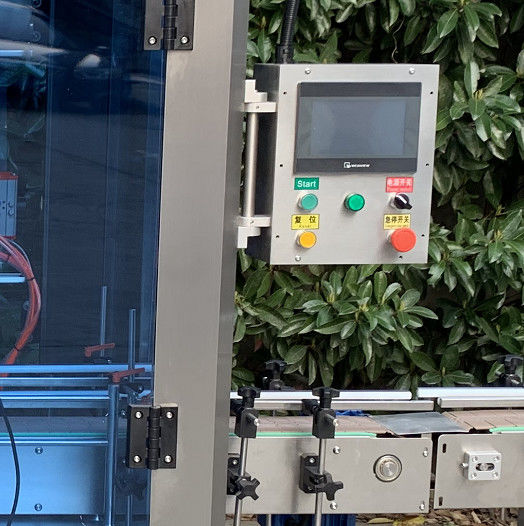

  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line

Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter

Speed  1000-1500bph (customizable)
Filling accuracy  >=99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method piston + servo motor driven
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter,high accuracy

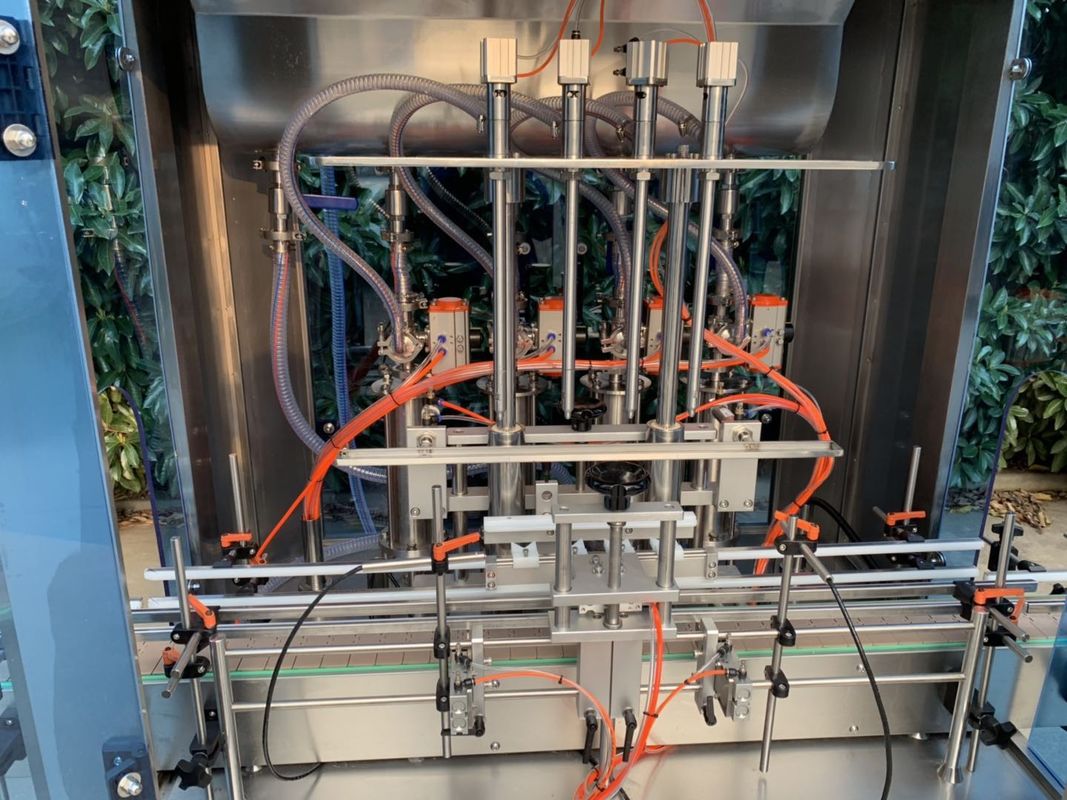

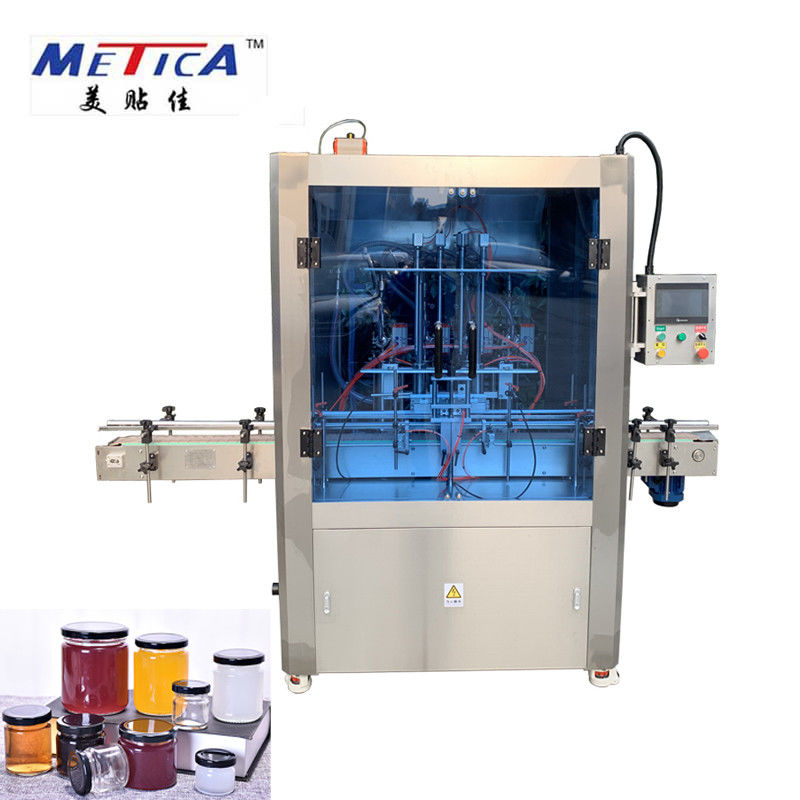

Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph 0



Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph 1

Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph 2

Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph 3

Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph 4





Samples display:

Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph 5

Automatic Bottle Filling Machine Peanut Butter Filling Machine 1000bph-1500bph 6
