5g-500g Potato Chips Packing Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: ZL-180SF
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Potato Chips And Similar Products Bag Packing Machine Application: Food,Medical,and So On
Capacity: 1600-6000BPH Machine Size: 130*90*220 Cm³
Warranty: One Year Warranty Automatic Grade: Full Automatic
Type: Potato Chips Products Bag Filling And Sealing Machine In One Voltage: 220V, 50/60Hz (can Be Customized)
Control System: Servo Motor Driven + PLC Control Function: Weighing, Automatic Bag Making, Filling, Sealing In One
High Light:

500g Potato Chips Packing Machine

,

5g Potato Chips Packing Machine

,

6000BPH Potato Chips Packing Machine


Product Description

Automatic Granular Products Bag Filling Machine With Weighing Scale Bag Packing Machine



Application

  • Suitable for automatic quantitative packaging of granular materials, such as Biscuits, Potato chips and so on

Machines Features

  • 1. The whole machine adopts 3 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;
  • 2. The whole machine is assembled with 3mm & 5mm thick stainless steel sheet metal, and the operation is stable; and the core components are specially optimized design, and the packaging speed is fast;
  • 3. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling, and the packaging bag-shaped effect is neat and beautiful;
  • 4. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable performance and durability;
  • 5. The design of the whole machine has passed CE certification.



Parameter:

Model ZL-180SF M10L0.5/M10L1.6 M14L0.5/M14L1.6
Speed 20-100bag/minute 20-70bag/minute 20-100bag/minute
Package weight 5-500g 3-100g/5-500g 3-100g/5-500g
Packaging error According to the metering device ±0.2-1g/±0.3-2g ±0.2-1g/±0.3-2g
Control System Servo driver + color touch screen MCU+color touch screen MCU+color touch screen

Bag size:

Roll film width:

L:50—190mm,W:50—150mm

110mm—320mm

Roll film thickness:

Suitable packaging material:

0.06—0.12mm

PP,PE,PVC,PS,EVA,PET,PVDC+PVC,OPP+composite CPP etc..

Power 220v/50Hz/2kw
Optional device for packaging machine Charging device Drainage device Safety switch Clipping removal device Punching device Encoder
Combination weigher optional device Collection hopper Checkered board Rotary distributor Teflon spray Waterproof case Operating language
Machine material Main body 3mm&5mm thickness 304 stainless steel
Machine size 1300x900x2200mm Packaging size 1500x1200x1800mm
Weight 400kg Packaging weight 550kg

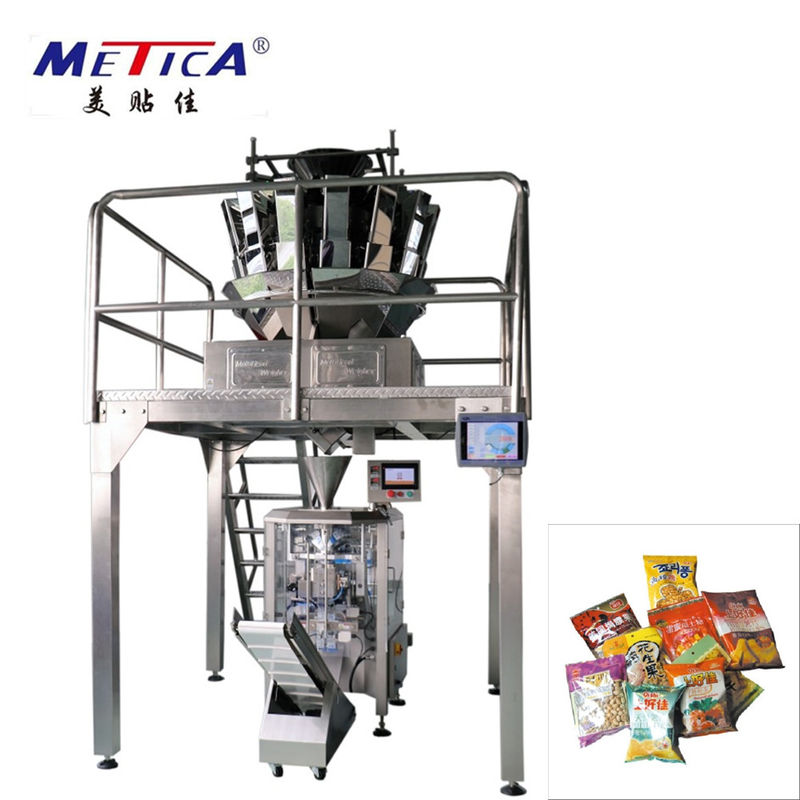

5g-500g Potato Chips Packing Machine 0

Compatible metering device

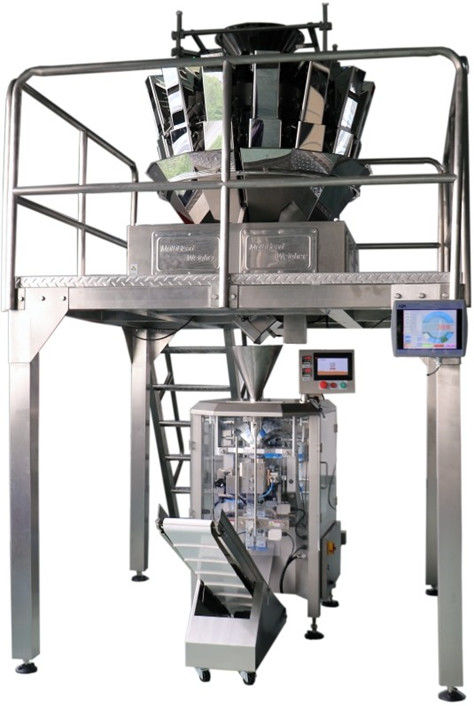

5g-500g Potato Chips Packing Machine 1

5g-500g Potato Chips Packing Machine 2



Samples display:

5g-500g Potato Chips Packing Machine 3
