Pneumatic Semi Automatic Paste Filling Machine CE Approved For Sauce

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTY-1
Minimum Order Quantity: 1 SET
Price: USD 500-1000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Semi Automatic Sauce Filling Machine Application: For Sauce Filling Liquid Or Viscosity Liquid Into Bottle
Capacity: 300-800BPH(Depends On Worker Proficiency ) Filling Accuracy: >=99%
Machine Size: 100*35*35cm Warranty: One Year
Automatic Grade: Semi-Automatic, Manual Driven Type: Electric Or Pneumatic
Packaging Type: Bottles,Cans,Barrel
High Light:

Pneumatic Semi Automatic Paste Filling Machine

,

100*35*35cm Semi Automatic Paste Filling Machine


Product Description

Pneumatic Type Sauce Semi Automatic Liquid And Paste Bottle Filling Machine



Application

  • Widely used in chemical, daily chemical, petro chemical, medicine, pesticide, food, beverage industries etc.
  • To fill liquid products, such as water, oral liquid, physic liquid, cosmetic liquid, milk, chemical liquid, pesticide liquid, drink etc.
  • Semi automatic type



Spec and Feature

  • It is the most economical filling machine. Save time material cost and labor cost.
  • Simple structure; easy to move, use and maintain.
  • The filling quantity is adjustable and more accurate.
  • Piston Filling drive by cylinder
  • one-way valve control material flow direction
  • Change the filling volume by adjusting the spring switch to control the cylinder.



Work flow:

  • Manually load bottles on the machine
  • Automatic filling with 1 or 2 filling nozzles(customizable)
  • Press foot pedal to fill automatically



Paremeter

Speed  300-800bph (customizable)
Filling accuracy  >=99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + air cylinder
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen

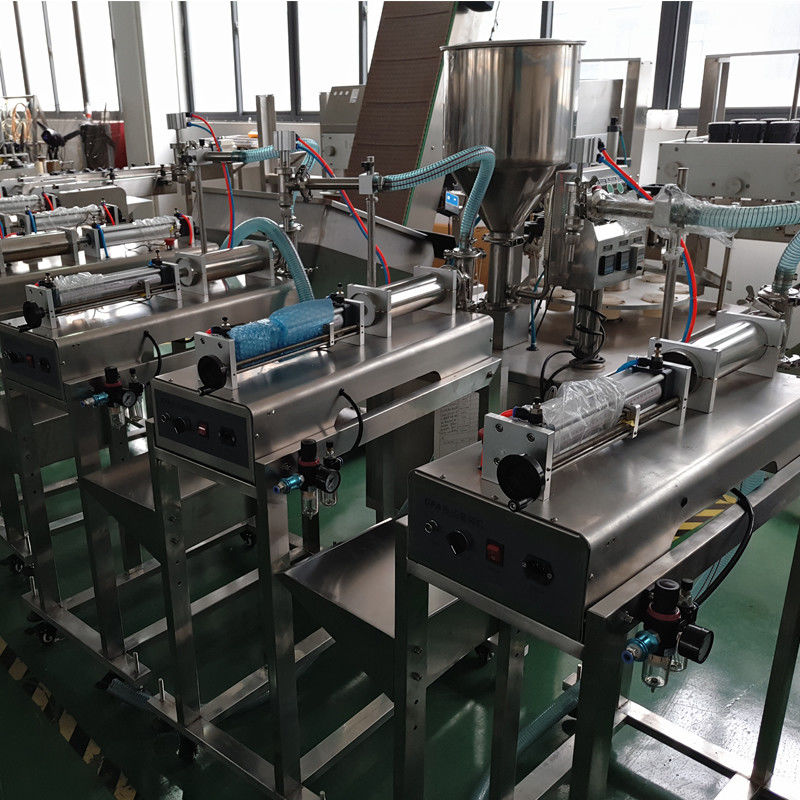

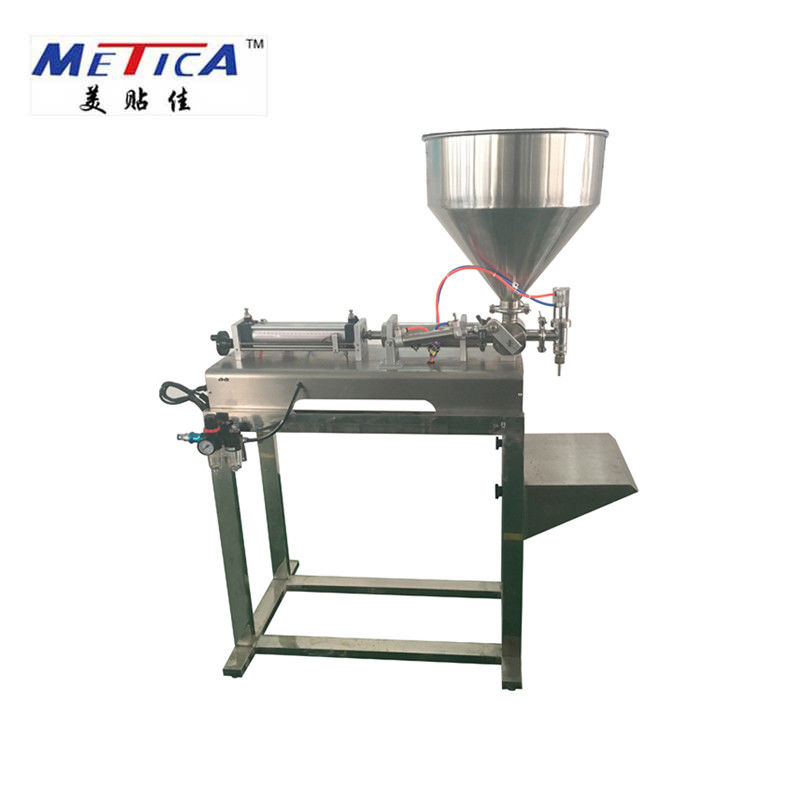

Pneumatic Semi Automatic Paste Filling Machine CE Approved For Sauce 0Pneumatic Semi Automatic Paste Filling Machine CE Approved For Sauce 1





Samples display:

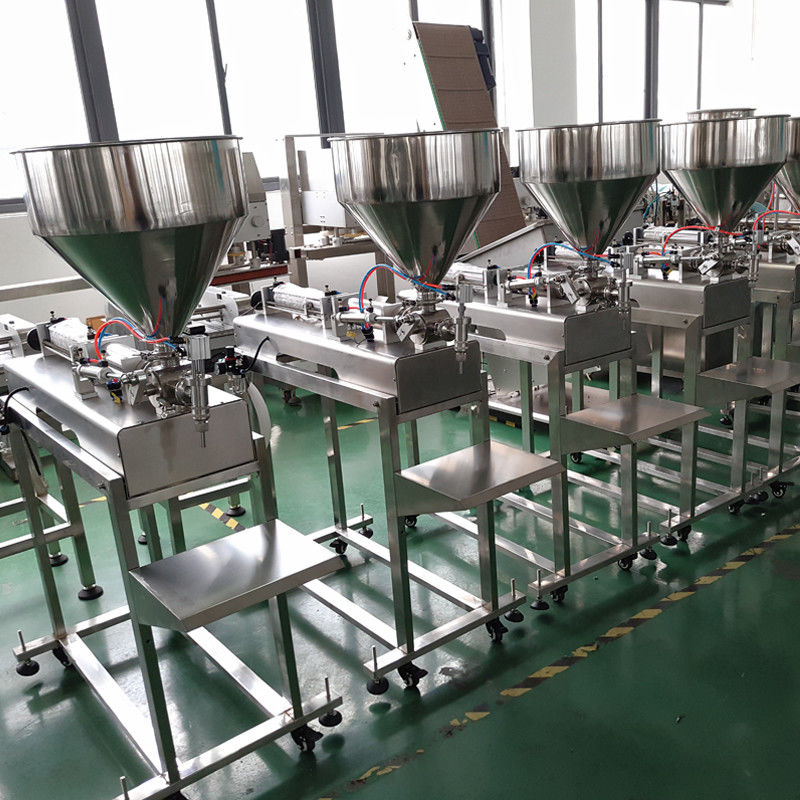

Pneumatic Semi Automatic Paste Filling Machine CE Approved For Sauce 2Pneumatic Semi Automatic Paste Filling Machine CE Approved For Sauce 3

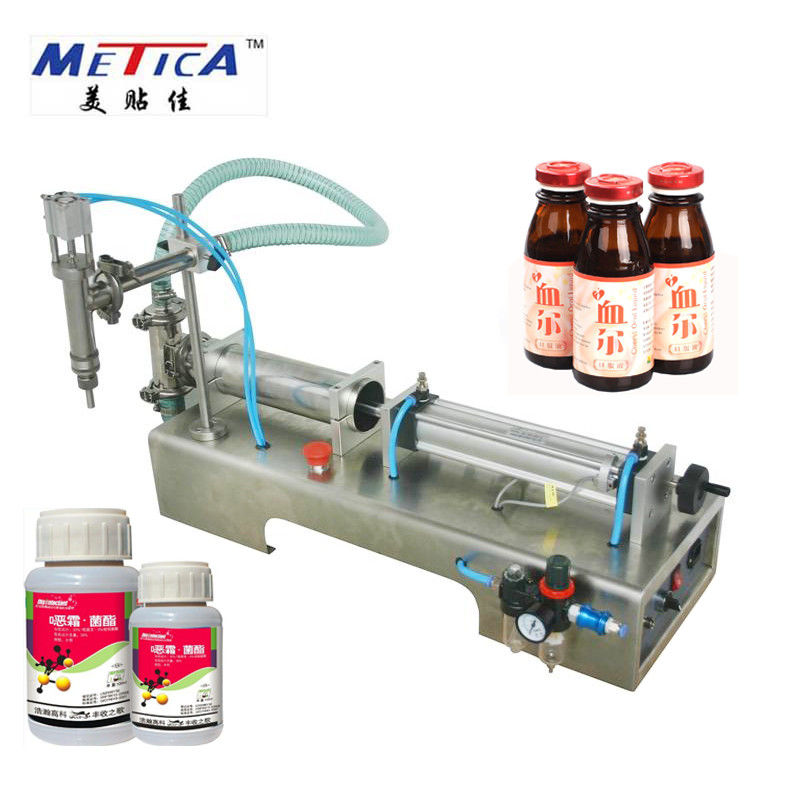

Pneumatic Semi Automatic Paste Filling Machine CE Approved For Sauce 4
