Sewer Cleaning Powder Filling And Capping Machine 0.8MPa Air Supply

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTPF-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Sewer Cleaning Agent Powder Filling Capping Machine Application: For Food And Chemical Industry
Capacity: 1200-2000BPH(customizable) Filling Accuracy: Over 99%
Machine Size: 300(L)*125(W)*230()H Cm³ Warranty: 1-Year
Automatic Grade: Automatic Filling And Capping In One Driven Type: Electric, Pneumatic
Voltage: 110V/220V, 50/60Hz (customizable) Type: Filling Machine For Sewer Cleaning Agent Powders
High Light:

Powder Filling And Capping Machine 0.8MPa

,

2000BPH Powder Filling And Capping Machine


Product Description

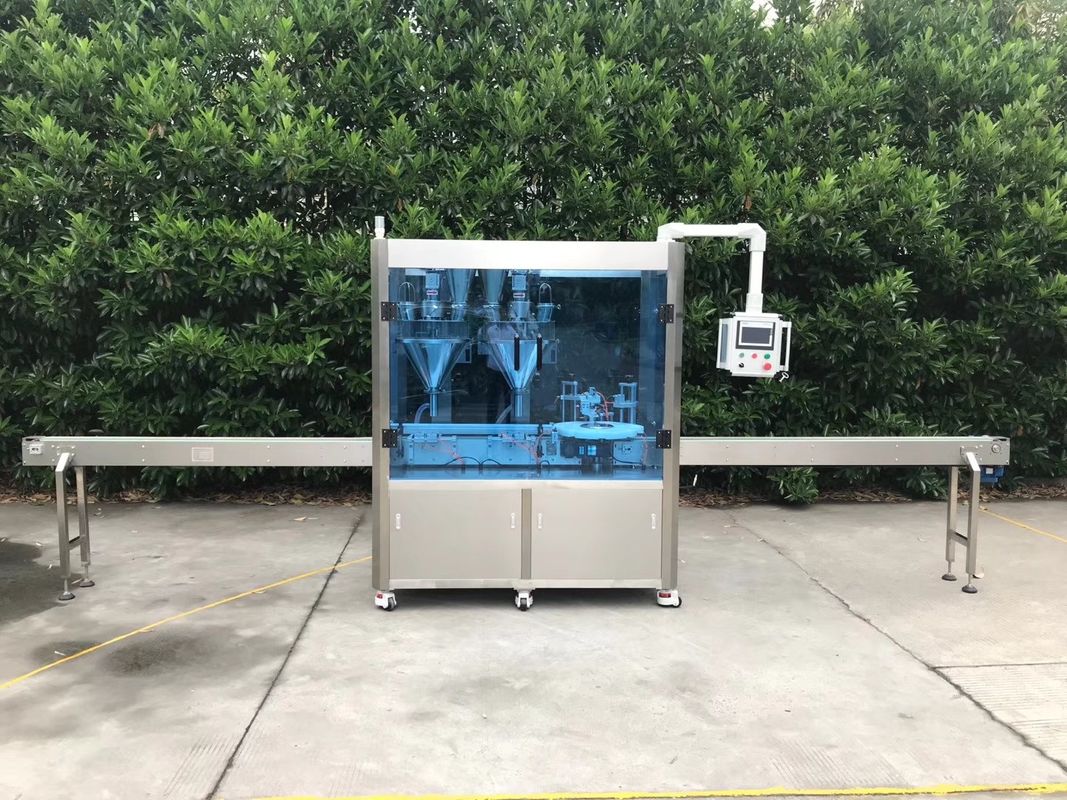

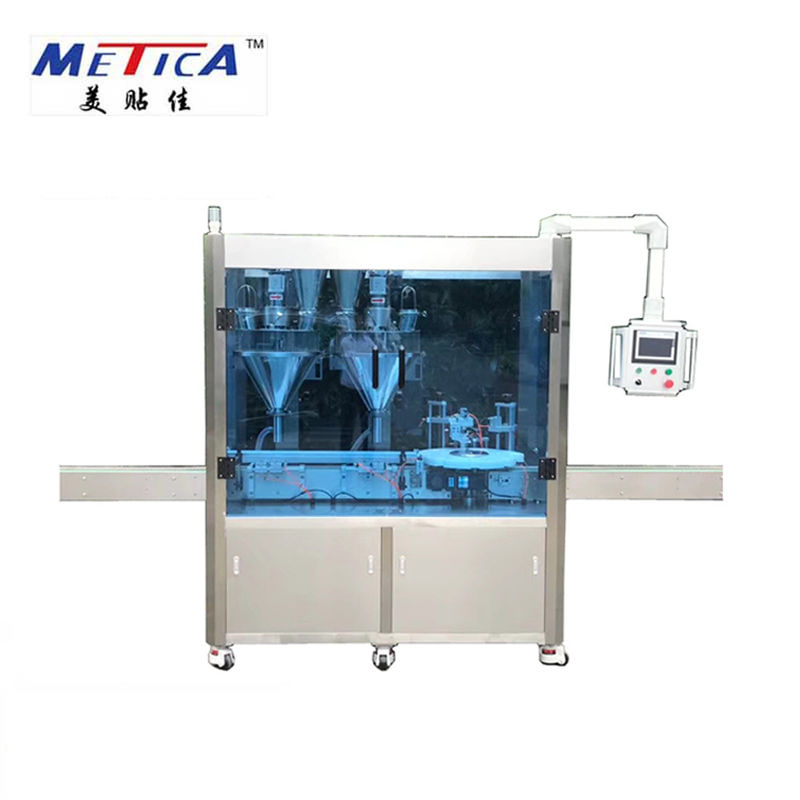

Automatic Sewer Cleaning Agent Powder Filling Capping Machine Monoblock Filling And Capping Machine



Application

  • This machine used for powder products filling into bottle. Such as Sewer Cleaning Agent Powder
  • The filling heads designed according to capacity and product feature. (Can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.



Spec and Feature

  • Adopts servo motor driven filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts one or two filling nozzles, the more filling nozzles, the higher capacity.
  • Filling volume is adjustable in certain filling volume scope.
  • Single nozzle is micro adjustable.
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.

Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping



Technical Parameters

Speed 15-60 BPM(can be customized)
Filling accuracy +/- 2%
Filling volume 10-500 g(can be customized)
Filling method servo motor driven
Power supply 220V 50/60 Hz, 3 kw
Air supply 0.8MPa
Machine size 300*125*230 cm
Bottle applicable A wide shape range
Application Powder products filling
Feature PLC, touch screen



Sewer Cleaning Powder Filling And Capping Machine 0.8MPa Air Supply 0Sewer Cleaning Powder Filling And Capping Machine 0.8MPa Air Supply 1

Sewer Cleaning Powder Filling And Capping Machine 0.8MPa Air Supply 2Sewer Cleaning Powder Filling And Capping Machine 0.8MPa Air Supply 3





Sewer Cleaning Powder Filling And Capping Machine 0.8MPa Air Supply 4Sewer Cleaning Powder Filling And Capping Machine 0.8MPa Air Supply 5

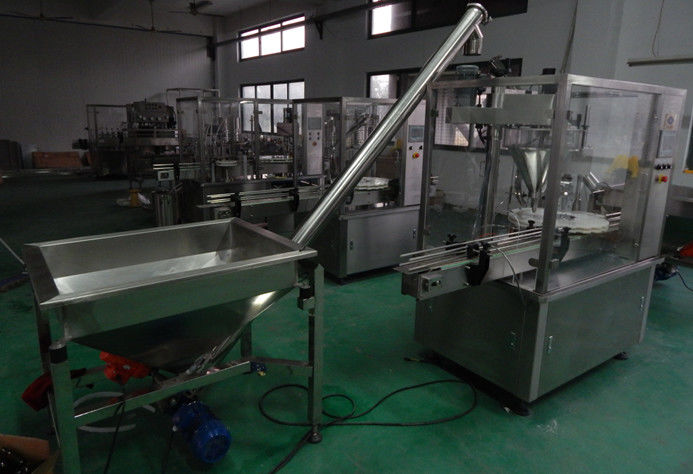

Project Examples

Sewer Cleaning Powder Filling And Capping Machine 0.8MPa Air Supply 6
