380V 8.5KW Stand Up Pouch Filling And Sealing Machine Servo Motor Driven

380V 8.5KW Stand Up Pouch Filling And Sealing Machine Servo Motor Driven

Stand Up Pouch Filling And Sealing Machine

380V Stand Up Pouch Filling Machine

8.5KW Stand Up Pouch Filling Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

GDS100A80F/80K

Contact Us
Request A Quote
Product Details
Name:
Stand-Up Pouch Filling Machine
Application:
Food,Medical,Chemical
Capacity:
3600-4800 BPH(related To Filling Volume)
Machine Size:
1950×1400×1520mm
Warranty:
1 Year
Automatic Grade:
Automatic
Type:
Auto Bag Filling And Sealing Machine
Voltage:
380V, 50/60Hz(customizable)
Control System:
Servo Motor Driven
Function:
Automatic Bag Filling, Sealing And Powder Filling Machine
High Light:

Stand Up Pouch Filling And Sealing Machine

,

380V Stand Up Pouch Filling Machine

,

8.5KW Stand Up Pouch Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
5-10 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

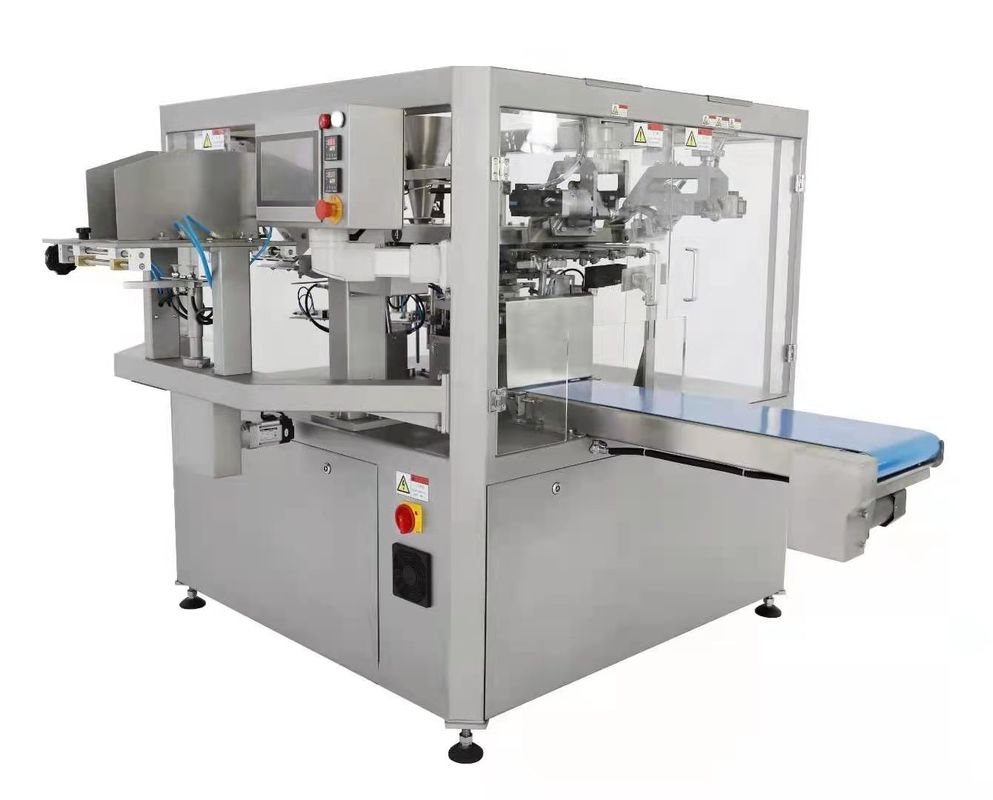

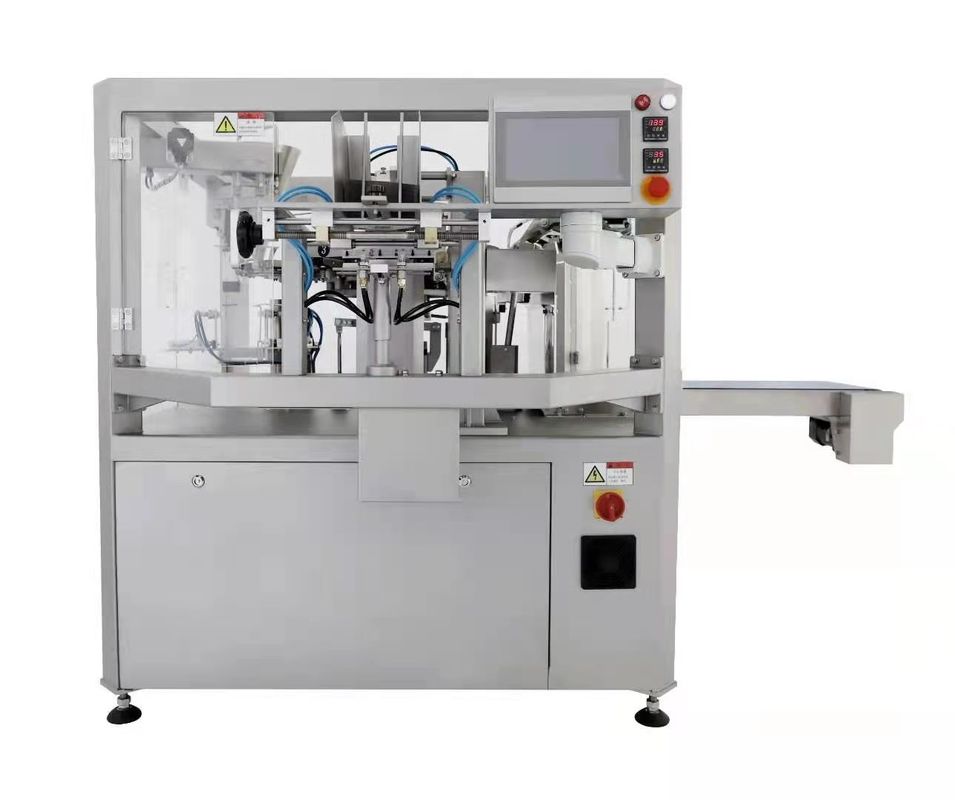

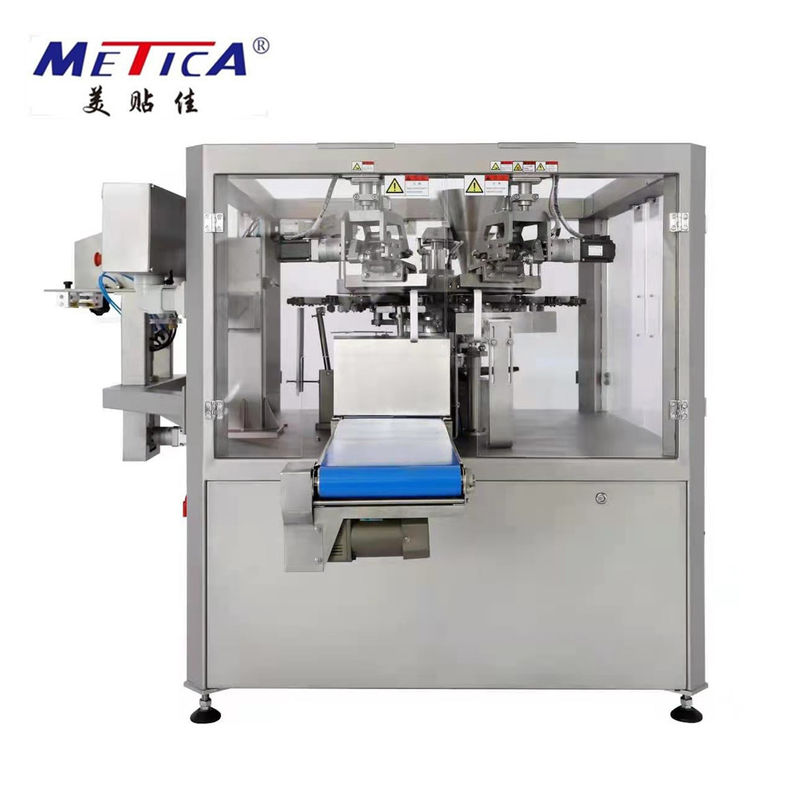

Automatic Stand-Up Pouch Filling Machine Bag Packing Machine



Application

  • This machine is suitable for automatic and fully automatic packaging of small-dose products in small bags, medium bags, various powder forms, and granular forms.



Machines Features

  • 1. The whole machine is a ten-station structure, running by (with motion function) programmable controller PLC, large screen touch Centralized control of the screen, simple and convenient operation.
  • 2. Supporting fault automatic tracking alarm system, real-time display of operating status.
  • 3. The empty bag tracking and detection device can realize the bag without opening, blanking and sealing.
  • 4. The action execution adopts a full servo control system, which is reliable, fast and accurate.
  • 5. The design of the whole machine complies with GMP standards and has passed CE certification.



Parameter:

Model GDS100A GDS80F GDS80K
Speed 82bags/min 70bags/min 60bags/min
Packing specification L≤360mm,W 80-210mm L≤400mm,W 130-250mm L≤400mm,W 150-300mm
Work station 10 stations 8 stations 8 stations
package style Prefabricated bags (flat bags, stand-up bags, zipper bags, handbags, M bags, etc.)
Air source 6kg/cm²,0.4m³/min
Packaging Materials Single layer PE, PE composite film, paper film and various other composite films
Weight around 700Kg around 700Kg around 720Kg
Power 380V, 8.5KW
Machin size 1950×1400×1520mm 1950×1400×1520mm 2100×1500×1520mm



380V 8.5KW Stand Up Pouch Filling And Sealing Machine Servo Motor Driven 0380V 8.5KW Stand Up Pouch Filling And Sealing Machine Servo Motor Driven 1380V 8.5KW Stand Up Pouch Filling And Sealing Machine Servo Motor Driven 2







Samples display:

380V 8.5KW Stand Up Pouch Filling And Sealing Machine Servo Motor Driven 3380V 8.5KW Stand Up Pouch Filling And Sealing Machine Servo Motor Driven 4380V 8.5KW Stand Up Pouch Filling And Sealing Machine Servo Motor Driven 5
