Premade Stand Up Zipper Pouch Packing Machine 60bags/Min GMP Standards

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: GDS100A80F/80K
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Premade Stand Up Zipper Pouch Bag Doypack Bag Packing Machine Application: Food,Medical,Chemical,Commodity
Capacity: 3600 BPH(related To Filling Volume) Machine Size: 2100×1500×1520mm
Warranty: 1 Year Automatic Grade: Automatic Bag Filling And Sealing
Type: Bag Filling And Sealing Machine Voltage: 380V, 50/60Hz
Control System: Servo Driven + Touch Screen Control Function: Automatic Bag, Filling, Sealing, Powder Filling Machine
High Light:

Premade Zipper Pouch Packing Machine

,

Zipper Pouch Packing Machine 60bags/Min

,

GMP Stand Up Pouch Packing Machine


Product Description

Automatic Premade Stand Up Zipper Pouch Bag Doypack Bag Packing Machine



Application

  • This machine is suitable for automatic and fully automatic packaging of small-dose products in small bags, medium bags, various powder forms, and granular forms.



Machines Features

  • 1. The whole machine is a ten-station structure, running by (with motion function) programmable controller PLC, large screen touch Centralized control of the screen, simple and convenient operation.
  • 2. Supporting fault automatic tracking alarm system, real-time display of operating status.
  • 3. The empty bag tracking and detection device can realize the bag without opening, blanking and sealing.
  • 4. The action execution adopts a full servo control system, which is reliable, fast and accurate.
  • 5. The design of the whole machine complies with GMP standards and has passed CE certification.



Parameter:

Speed 60bags/min,The speed mainly depends on the fluidity of the material and the difficulty of packaging
Packing specification L≤400mm,W 150-300mm
package style Prefabricated bags (flat bags, stand-up bags, zipper bags, handbags, M bags, etc.)
Air source 6kg/cm²,0.4m³/min
Packaging Materials Single layer PE, PE composite film, paper film and various other composite films
Weight around 720Kg
Power 380V, 8.5KW
Machin size 2100×1500×1520mm

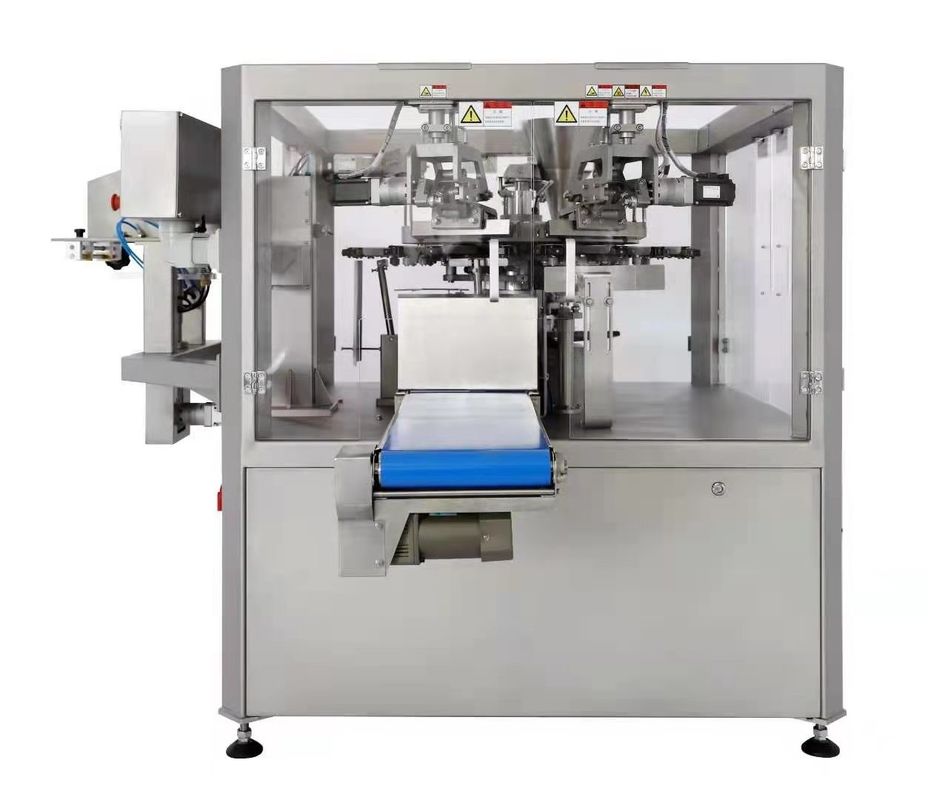

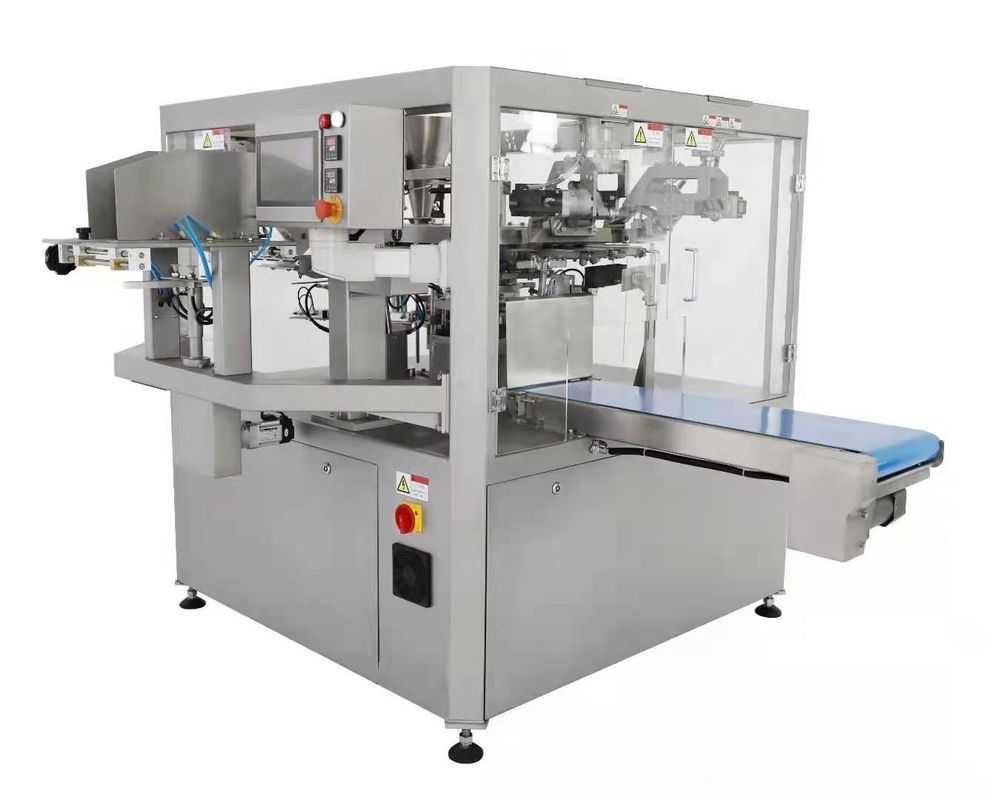

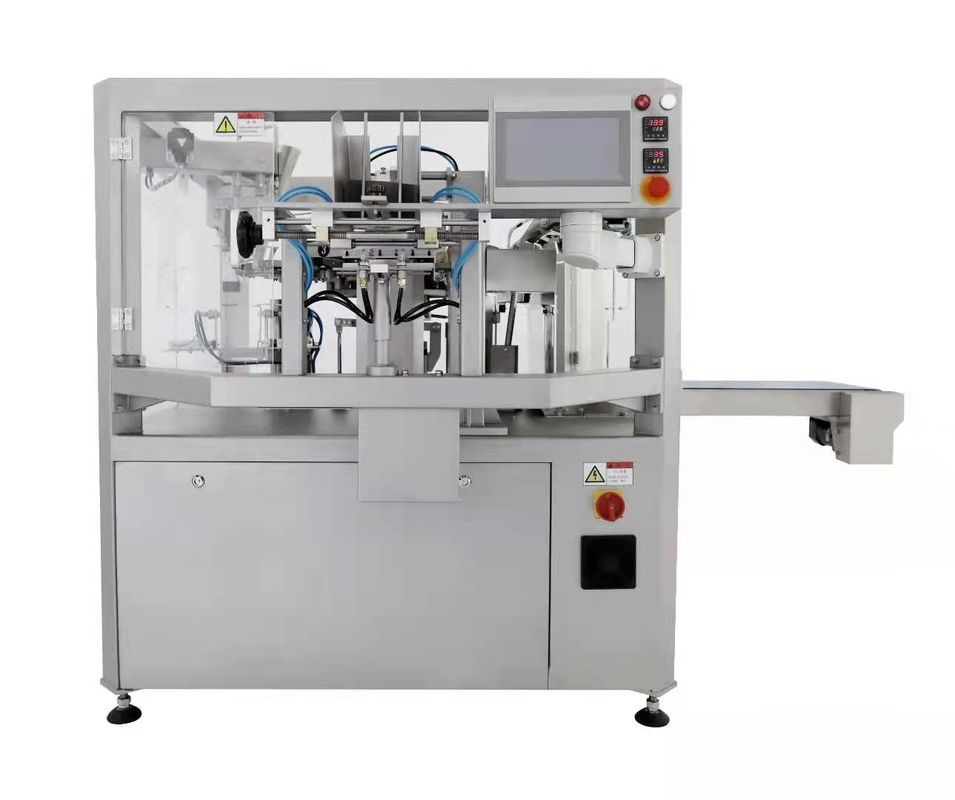

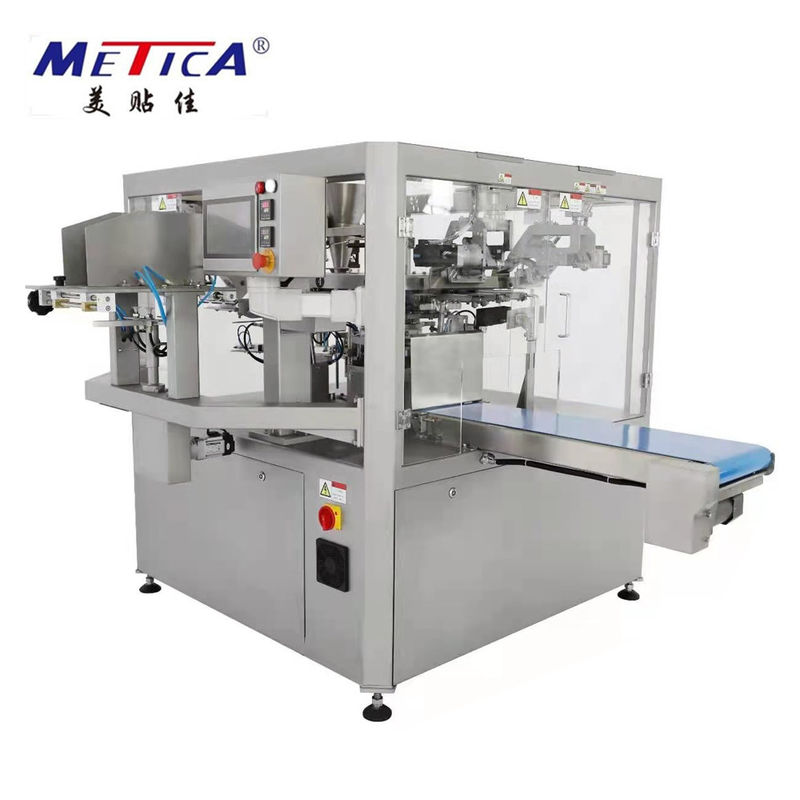

Premade Stand Up Zipper Pouch Packing Machine 60bags/Min GMP Standards 0Premade Stand Up Zipper Pouch Packing Machine 60bags/Min GMP Standards 1Premade Stand Up Zipper Pouch Packing Machine 60bags/Min GMP Standards 2







Samples display:

Premade Stand Up Zipper Pouch Packing Machine 60bags/Min GMP Standards 3Premade Stand Up Zipper Pouch Packing Machine 60bags/Min GMP Standards 4Premade Stand Up Zipper Pouch Packing Machine 60bags/Min GMP Standards 5
