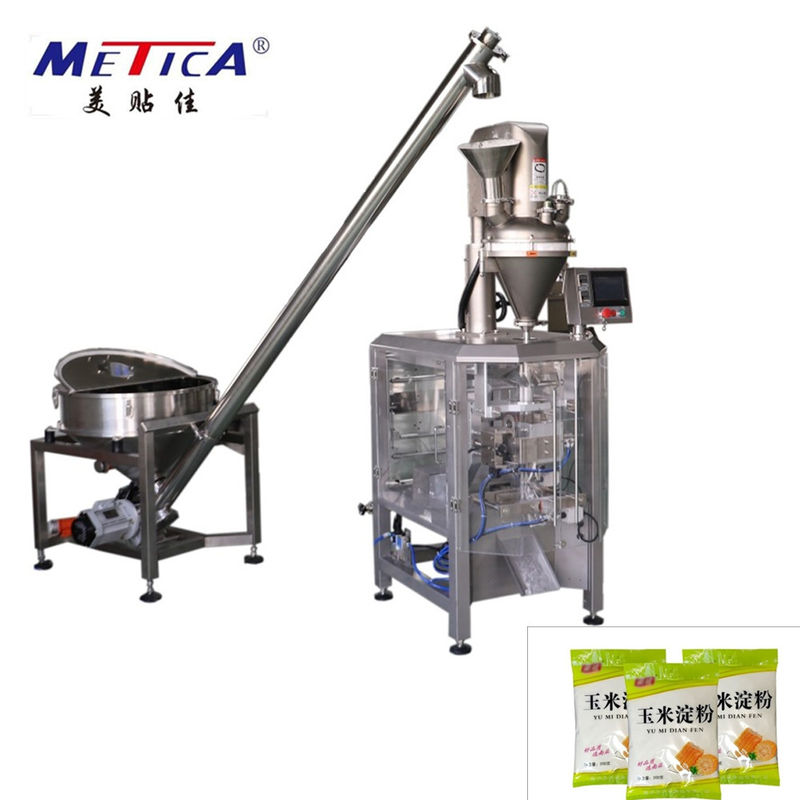

METICA Automatic Bag Filling Machine 20-90bag/Minute For Starch Products

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: ZL-180SF
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Starch Products Products Bag Packing Machine, Bag Filling Machine Application: Food,Medical,Chemical,Commodity And So On
Capacity: 2000-5400 BPH(related To Filling Volume) Machine Size: 130(L)x90(W)x220(H) Cm³
Warranty: One-year Automatic Grade: Automatic Bag Making,filling And Sealing
Type: Starch Products Bag Filling And Sealing Machine Voltage: 110V Or 220V, 50/60Hz(customizable)
Control System: Servo Driven + Touch Screen Control Function: Automatic Starch Products Bag Making, Filling, Sealing, Powder Filling Machine
High Light:

METICA Automatic Bag Filling Machine

,

Automatic Bag Filling Machine 90bag/Minute

,

60Hz Automatic Filling Machine


Product Description

Automatic Starch products Bag Making And Filling Machine With Metering Device Bag Packing Machine



Application

  • Suitable for automatic quantitative packaging of granular materials



Machines Features

  • 1. The whole machine adopts 4 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;
  • 2. The whole machine is assembled with 3mm & 5mm thick stainless steel sheet metal, and the operation is stable; and the core components are specially optimized design, and the packaging speed is fast;
  • 3. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling, and the packaging bag-shaped effect is neat and beautiful;
  • 4. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable performance and durability;

Advantage

  • 1. The whole machine is made of 304 stainless steel, which complies with pharmaceutical production specifications, which is convenient for cleaning and sanitation;
  • 2. The metering screw is precisely manufactured by CNC machine tools, with stable craftsmanship and high metering accuracy;
  • 3. Using servo motor drive control, fast and stable performance, fast production speed.

Parameter:

Model ZL-180SF 15 liter metering screw 30 liter metering screw
Speed 20-90bag/minute 20-90bag/minute 20-80bag/minute
Package weight 5-500g 5-150g 50-500g
Packaging error According to the metering device ±0.3-1% ±0.3-1%
Control System Servo motor driven + color touch screen Servo motor driven Servo motor driven

Bag size:

Roll film width:

L:50—190mm,W:50—150mm

110mm—320mm

Roll film thickness:

Suitable packaging material:

0.06—0.12mm

PP,PE,PVC,PS,EVA,PET,PVDC+PVC,OPP+composite CPP etc..

Power 220v/50Hz/2kw
Optional device for packaging machine Charging deviceDrainage device Safety switch Clipping removal device Punching device Encoder
Machine material Main body 3mm&5mm thickness 304 stainless steel (carbon steel) frame, machine surface sandblasting and no fingerprint processing
Machine size 130x90x22cm Packaging size 150x120x230cm
Weight 400kg Packaging weight 550kg


METICA Automatic Bag Filling Machine 20-90bag/Minute For Starch Products 0

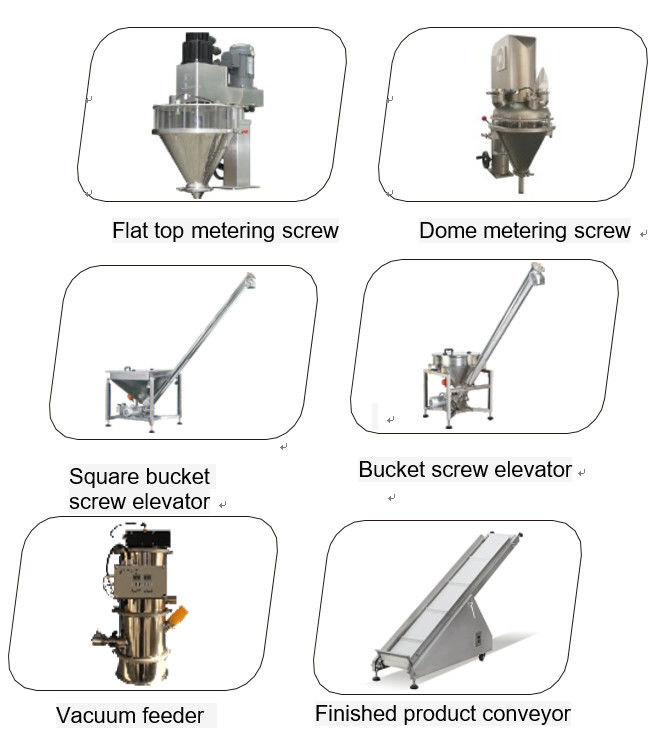

Compatible metering device

METICA Automatic Bag Filling Machine 20-90bag/Minute For Starch Products 1


METICA Automatic Bag Filling Machine 20-90bag/Minute For Starch Products 2

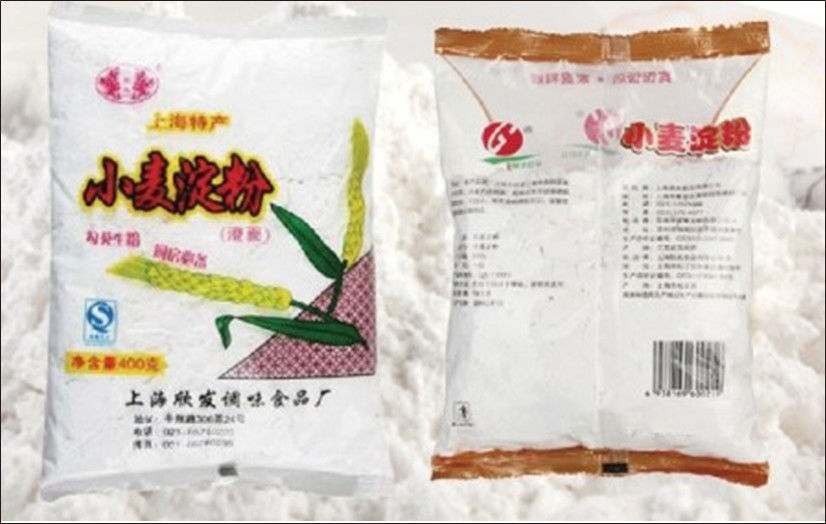

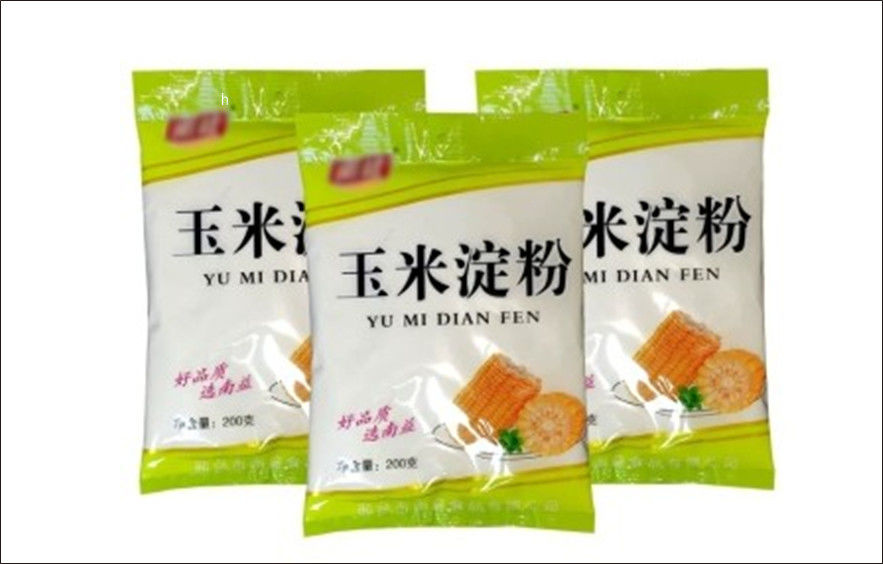

Samples display:



METICA Automatic Bag Filling Machine 20-90bag/Minute For Starch Products 3METICA Automatic Bag Filling Machine 20-90bag/Minute For Starch Products 4
