High Speed Detergent Powder Pouch Packing Machine 220v 50Hz 2kw

High Speed Detergent Powder Pouch Packing Machine 220v 50Hz 2kw

Detergent Powder Pouch Packing Machine

Powder Pouch Packing Machine 220v

2kw Detergent Powder Packing Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

ZL-180SF

Contact Us
Request A Quote
Product Details
Name:
Granular Products Bag Packing Machine, Bag Filling Machine
Application:
Food,Medical,Chemical,Commodity
Capacity:
2000-5400 BPH
Machine Size:
130x90x220 Cm³
Warranty:
1-year
Automatic Grade:
Automatic Bag Making,filling,sealing
Type:
Powder Products Bag Filling And Sealing Machine
Voltage:
110V Or 220V, 50/60Hz
Control System:
Servo Driven + Touch Screen
Function:
Automatic Bag Making, Filling, Sealing, Powder Filling Machine
High Light:

Detergent Powder Pouch Packing Machine

,

Powder Pouch Packing Machine 220v

,

2kw Detergent Powder Packing Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
5-10 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

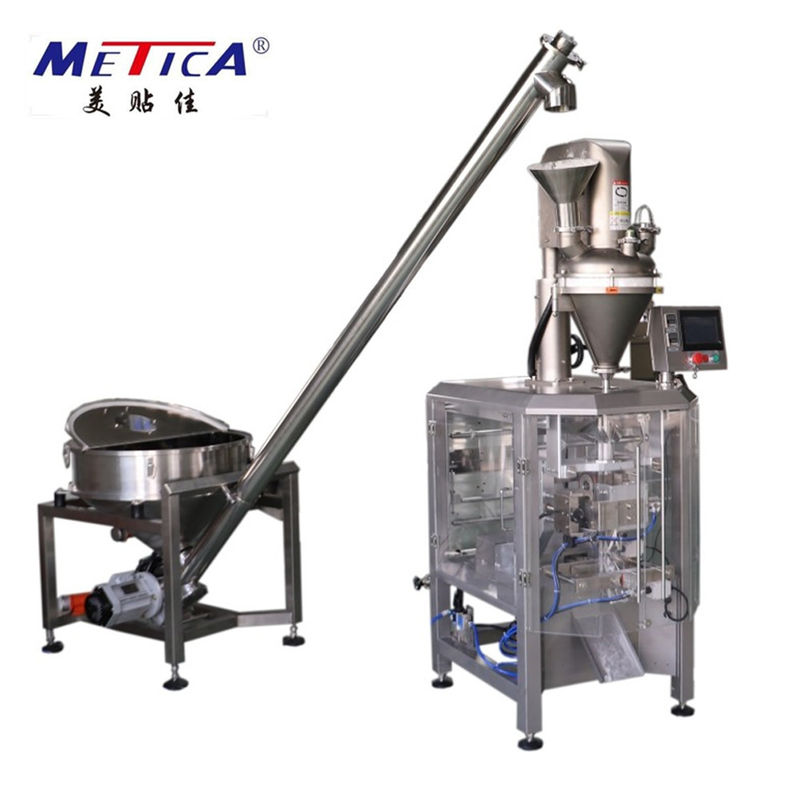

Automatic Powder Products Bag Making And Filling Machine With Metering Device Bag Packing Machine



Application

  • Suitable for automatic quantitative packaging of granular materials



Machines Features

  • 1. The whole machine adopts 4 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;
  • 2. The whole machine is assembled with 3mm & 5mm thick stainless steel sheet metal, and the operation is stable; and the core components are specially optimized design, and the packaging speed is fast;
  • 3. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling, and the packaging bag-shaped effect is neat and beautiful;
  • 4. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable performance and durability;
  • 5. The design of the whole machine complies with GMP standards and has passed CE certification.



Parameter:

Model ZL-180SF 15 liter metering screw 30 liter metering screw
Speed 20-90bag/minute 20-90bag/minute 20-80bag/minute
Package weight 5-500g 5-150g 50-500g
Packaging error According to the metering device ±0.3-1% ±0.3-1%
Control System Servo motor driven + color touch screen Servo motor driven Servo motor driven

Bag size:

Roll film width:

L:50—190mm,W:50—150mm

110mm—320mm

Roll film thickness:

Suitable packaging material:

0.06—0.12mm

PP,PE,PVC,PS,EVA,PET,PVDC+PVC,OPP+composite CPP etc..

Power 220v/50Hz/2kw
Optional device for packaging machine Charging deviceDrainage device Safety switch Clipping removal device Punching device Encoder
Machine material Main body 3mm&5mm thickness 304 stainless steel (carbon steel) frame, machine surface sandblasting and no fingerprint processing
Machine size 1300x900x2200mm Packaging size 1500x1200x2300mm
Weight 400kg Packaging weight 550kg


High Speed Detergent Powder Pouch Packing Machine 220v 50Hz 2kw 0

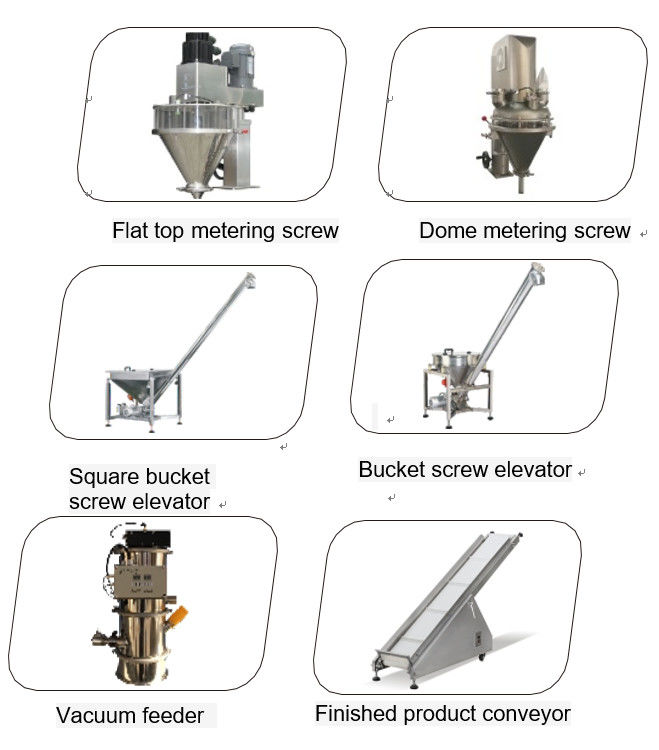

Compatible metering device

High Speed Detergent Powder Pouch Packing Machine 220v 50Hz 2kw 1


High Speed Detergent Powder Pouch Packing Machine 220v 50Hz 2kw 2



Samples display:



High Speed Detergent Powder Pouch Packing Machine 220v 50Hz 2kw 3High Speed Detergent Powder Pouch Packing Machine 220v 50Hz 2kw 4
