2kw Poly Bag Packing Machine Vertical Bag Filling Machine Specially Optimized Design

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: ZL-180SF
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Bag Packing Machine, Bag Filling Machine Application: Food,Medical,Chemical,Commodity,Machinery & Hardware
Capacity: 1200-6000 BPH Machine Size: 1300x900x2200mm
Warranty: One-year Automatic Grade: Automatic Bag Packing
Type: Bag Filling And Sealing Machine Voltage: 220V, 50/60Hz (customizable)
Control System: Servo Driver + Touch Screen Function: Automatic Bag Filling,Sealing
High Light:

2kw Poly Bag Packing Machine

,

METICA Poly Bag Packing Machine

,

Vertical Bag Filling Machine Specially Optimized


Product Description

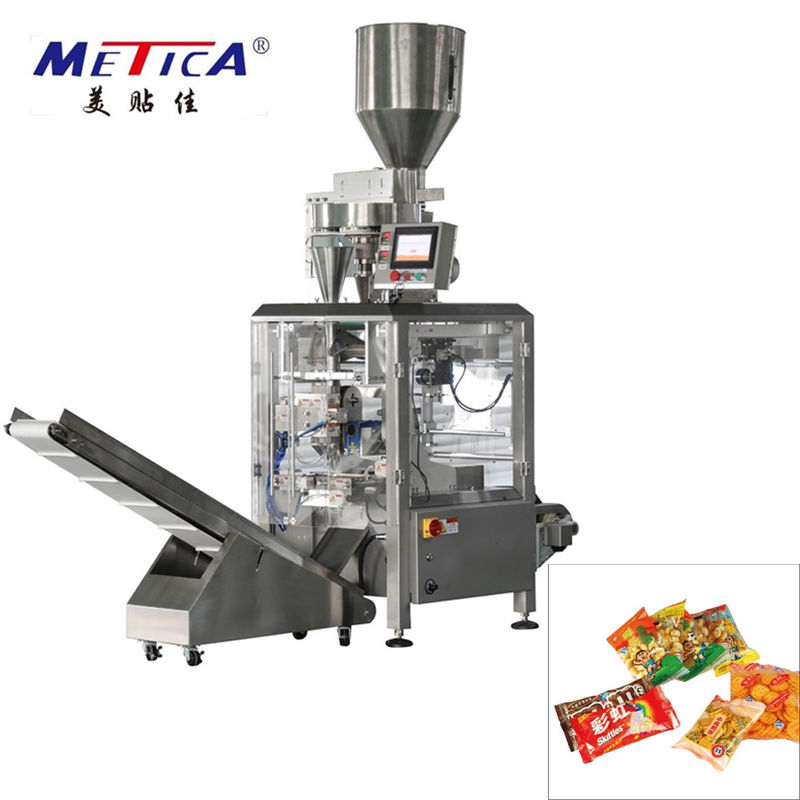

Automatic Vetical Bag Making And Filling Machine With Metering Device Bag Packing Machine



Labeling Application

  • Suitable for automatic quantitative packaging of granular materials



Labeling Machines Features

  • 1. The whole machine adopts 4 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;
  • 2. The whole machine is assembled with 3mm & 5mm thick stainless steel sheet metal, and the operation is stable; and the core components are specially optimized design, and the packaging speed is fast;
  • 3. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling, and the packaging bag-shaped effect is neat and beautiful;
  • 4. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable performance and durability;
  • 5. The design of the whole machine complies with GMP standards and has passed CE certification.



Parameter:

Model ZL-180SF With Servo turntable measuring cup With Pendulum measuring cup
Speed 20-100bag/minute 20-100bag/minute 20-100bag/minute
Package weight 5-500g 5-500g 3-50g
Packaging error According to the metering device ±0.5-3g ±0.1-0.5g
Control System Servo driver + color touch screen Linked control with packaging machine Linked control with packaging machine

Bag size:

Roll film width:

L:50—190mm,W:50—150mm

110mm—320mm

Roll film thickness:

Suitable packaging material:

0.06—0.12mm

PP,PE,PVC,PS,EVA,PET,PVDC+PVC,OPP+composite CPP etc..

Power 220v/50Hz/2kw
Optional device for packaging machine Charging deviceDrainage device Safety switch Clipping removal device Punching device Encoder
Machine material Main body 3mm&5mm thickness 304 stainless steel (carbon steel) frame, machine surface sandblasting and no fingerprint processing
Machine size 1300x900x2200mm Packaging size 1500x1200x1800mm
Weight 400kg Packaging weight 550kg


2kw Poly Bag Packing Machine Vertical Bag Filling Machine Specially Optimized Design 0

Compatible metering device


2kw Poly Bag Packing Machine Vertical Bag Filling Machine Specially Optimized Design 1

2kw Poly Bag Packing Machine Vertical Bag Filling Machine Specially Optimized Design 2

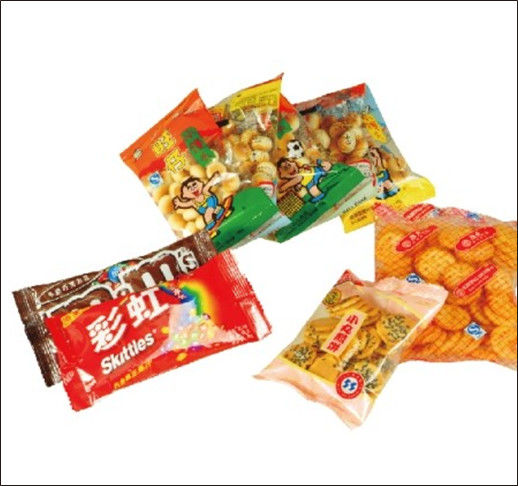

Samples display:

2kw Poly Bag Packing Machine Vertical Bag Filling Machine Specially Optimized Design 3
