1500-4000BPH Monoblock Filling And Capping Machine 500kg For 50ml Cream

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 15000-30000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: 50ml Cosmetics Hand Cream Jar Filling Capping Machine Capacity: 1500-4000 BPH(can Be Customized)
Qualified Rate: Over 99% Machine Size: 2400(L)*1300(W)*1600(H) Mm³
Warranty: One-year Type: Filling Machine, Capping Machine
Automatic Grade: Automatic Filling Filling Volume: 10-100ml(customizable)
Weight: Around 500kg Application: Beverage,Food,Chemical,Medical, Etc...
Product Name: 50ml Hand Cream Products Bottle Filling Machine Bottle Type: Glass Jar And Plastic Jar Is Available
High Light:

4000BPH Monoblock Filling And Capping Machine

,

Monoblock Filling And Capping Machine 500kg

,

50ml monoblock filling machine


Product Description

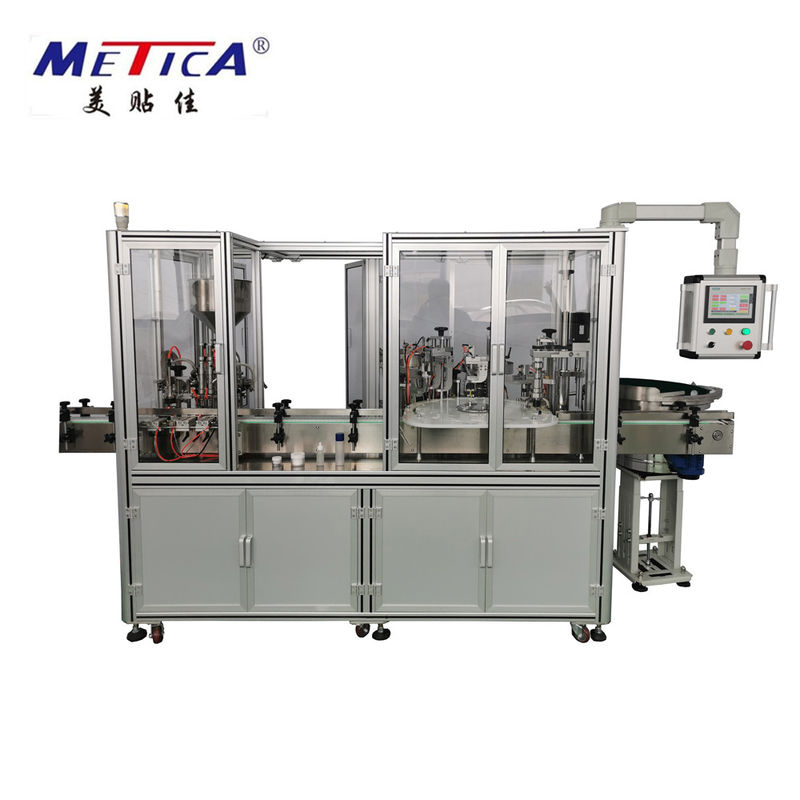

50ml Cosmetic Cream Products Filling Machine Monoblock Filling And Capping Machine


General introduction and advantages

  • 1. Automatic hand cream and lotion filling capping machine, liquid filling capping labeling machine, adopt piston filling method, controlled by micro- computer, filling accurate. (Can be changed to ceramic pump for special work surroundings).
  • 2. Achieve no bottle, no filling; No bottle no capping, No leak, no drool during filling process. Reduce detergent material consumption, increase user's economic benefit.
  • 3. User can adjust speed and filling volume by touch screen setting. Easy to use, to clean, to adjust, to maintain.
  • 4. Connected to the liquid container through corrosion-resistant medical infusion tube.
  • 5. Can work alone or connected to labeling machine to work together.
  • 6. Can be matched with wheels to move the machine easily.

Brief Introduction

  • 1. Make hand cream and lotion bottles enter into conveyor belt in order under the rotary force.
  • 2. Four nozzles servo motor driven filling, high filling speed and precision.
  • 3. High labeling precision, work stable.
  • 4. Less labor, just need one operator, high production efficiency.

Main Features

  • 1) Simple structure in linear type ,easy in installation and maintation.
  • 3) Running in a high automatization and intellectualization,no pollution
  • 4)PLC control, adjust in touch screen, easy operated, less labor

Work flow

  • Manually load bottles on conveyor or turntable(optional)

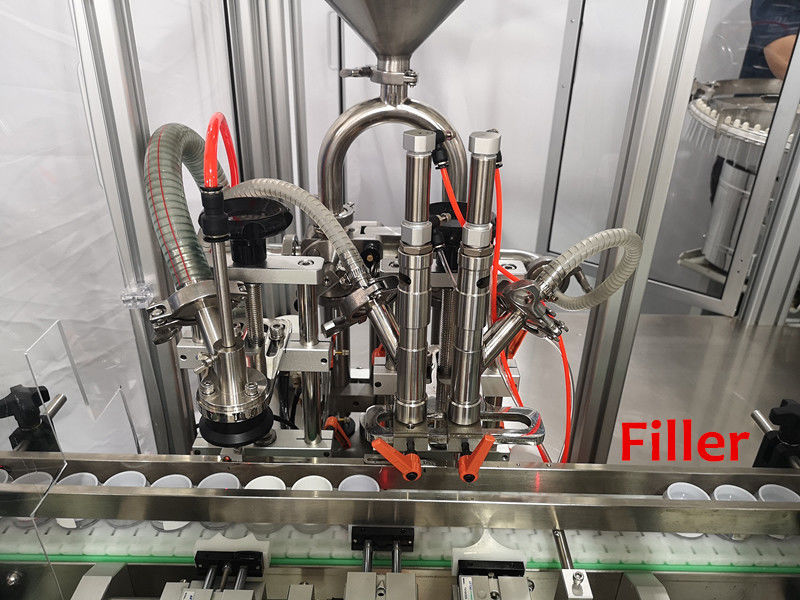

  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically

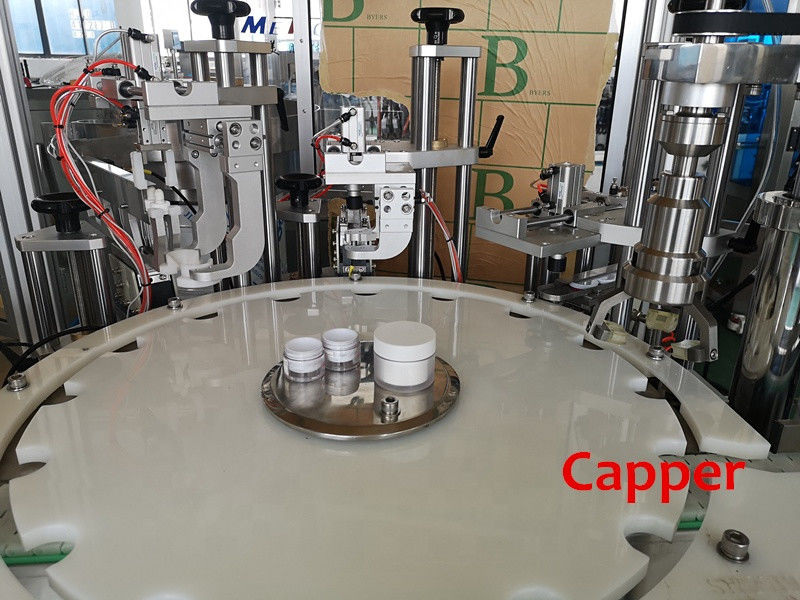

  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping

Parameter:

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Product capacity
2000-4000B/H (Customized)
Noise
lower than 65 decibel
Product applicable
10-100ml (Customized)
Filling applicable
hand sanitaizar 75 % alcoholic
Filling method
Piston + servo motor
Power
220V,50/60Hz(customized)
Filling Precision
±1%
Air
0.6-0.8Mpa
Capping precision
±1%
Filling line Size
6000*1500*1600mm
Labeling precision
±1mm



1500-4000BPH Monoblock Filling And Capping Machine 500kg For 50ml Cream 01500-4000BPH Monoblock Filling And Capping Machine 500kg For 50ml Cream 11500-4000BPH Monoblock Filling And Capping Machine 500kg For 50ml Cream 21500-4000BPH Monoblock Filling And Capping Machine 500kg For 50ml Cream 3



Samples display:

1500-4000BPH Monoblock Filling And Capping Machine 500kg For 50ml Cream 41500-4000BPH Monoblock Filling And Capping Machine 500kg For 50ml Cream 5
