10ml Small Bottle Packaging Machine 0.6 MPa rinsing filling capping machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: /
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: 10ml Small Bottle With Spray Cap And Pen Sprayer Filling And Capping Machine Capacity: 1500-2000BPH(can Be Customized)
Qualified Rate: More Than 99% Machine Size: 1500(L)*1350(W)*1800(H) Mm³
Warranty: 1-year Type: Filling And Capping Machine Monoblock
Automatic Grade: Automatic Cap Feeding, Filling And Capping Weight: More Than 300kgs
Product Name: 10ml Pen Sprayer And Small Bottle With Spray Cap Custom Packaging Machine Application: Chemical,Medical,Commodity,Beverage And So On
High Light:

10ml Small Bottle Packaging Machine

,

Small Bottle Packaging Machine 0.6 MPa

,

2000BPH Rinsing Filling Capping Machine


Product Description

10ml Small Bottle With Spray Cap And Pen Sprayer Filling And Capping Machine Custom Packaging Machine



Application

  • The machine is spceial designed for pen sprayer and similar small bottles with spray cap.
  • The machine is used for all kinds of liquid products filling and capping, mainly small bottle with volume 5-50 ml.
  • Essential Oil, E-Cigarette, Health Care Oil, Eye Drop and similar products is available.

Spec and Feature

  • The machine speed is 20-30 BPM, we can customized higher speed machine according to customers' requirements
  • The whole machine is designed especially for 5-50ml liquid filling, capping
  • Adopts peristaltic pump or piston pump, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • Suitable for single, mass production.
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1 workers



Parameter:

Speed 1500-2000bph (can be customized)
Filling accuracy >99%
Filling volume 5-50ml(can be customized)
Filling method servo motor+ piston or peristaltic pump
Power supply 220V 50/60hz 2kw
Air supply 0.6 MPa
Bottles applicable pen with spray cap
Caps applicable press caps/ screw caps/spray pump cap
Application Liquid or viscosity liquid
Feature PLC, touch screen etc..

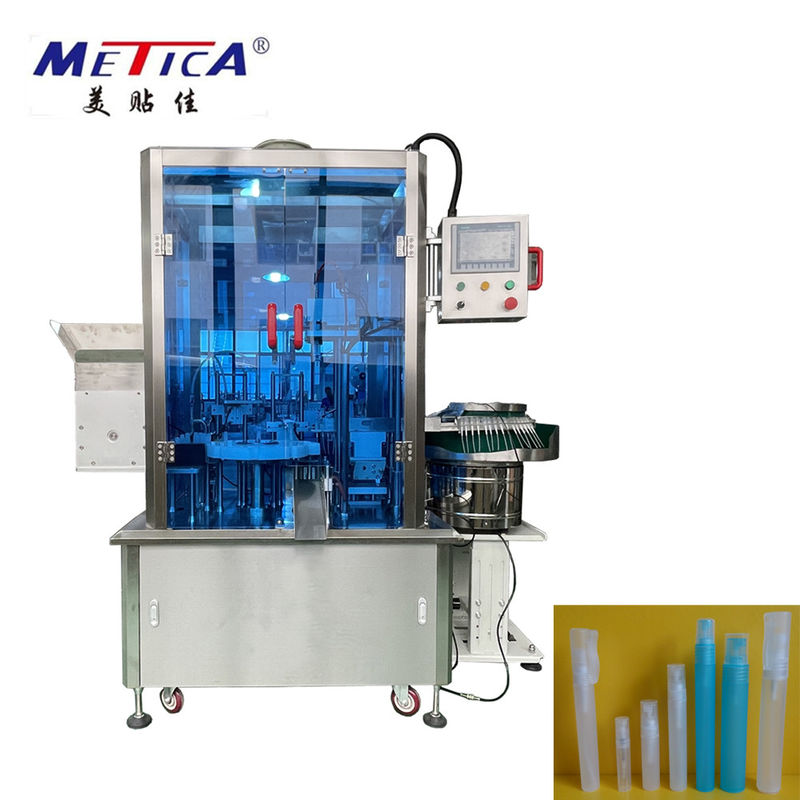

10ml Small Bottle Packaging Machine 0.6 MPa rinsing filling capping machine 0







10ml Small Bottle Packaging Machine 0.6 MPa rinsing filling capping machine 1

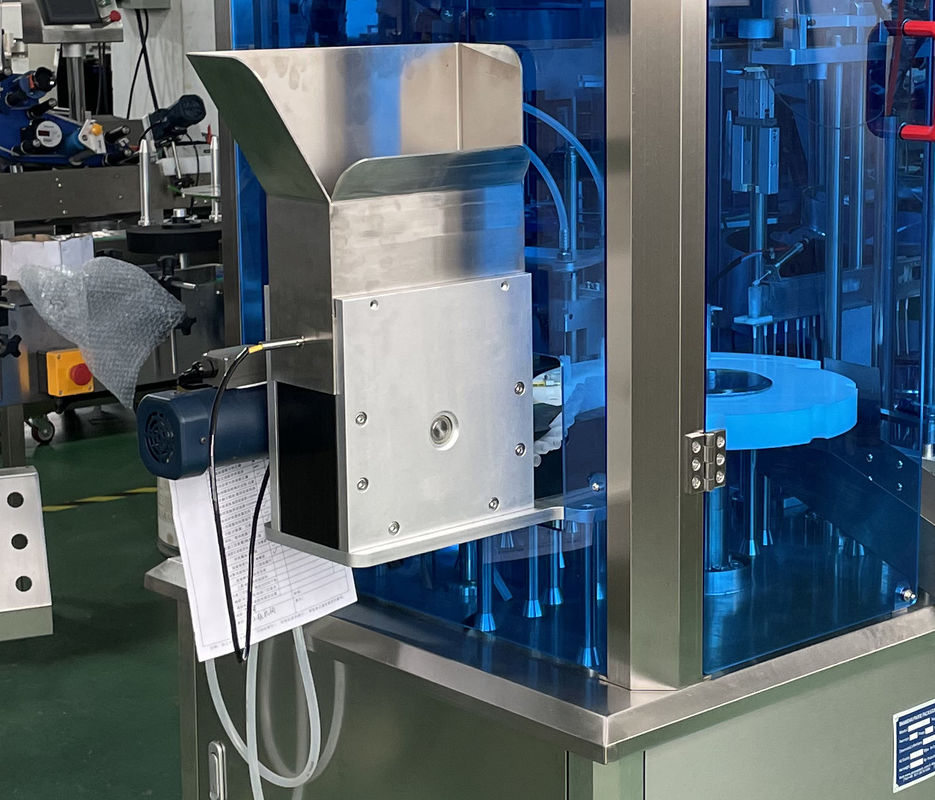

Pen feeder:

10ml Small Bottle Packaging Machine 0.6 MPa rinsing filling capping machine 2

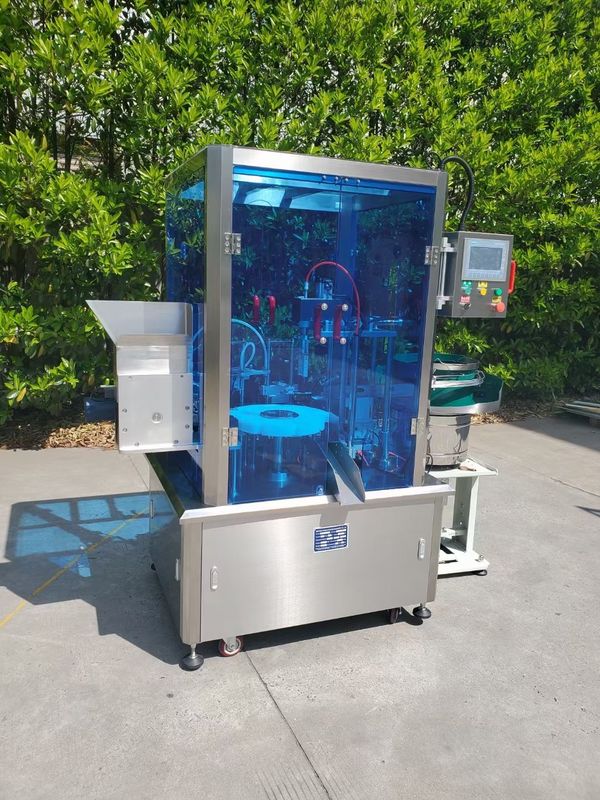

Cap feeder:

10ml Small Bottle Packaging Machine 0.6 MPa rinsing filling capping machine 3

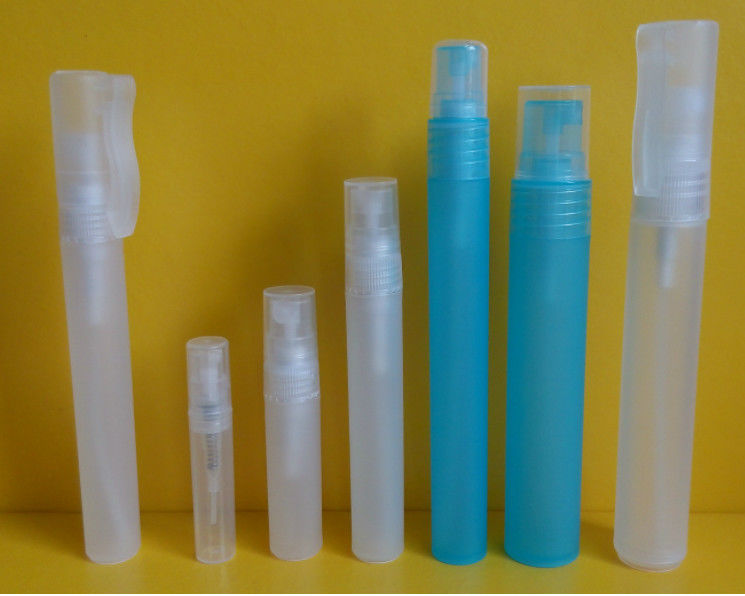

Samples display:

10ml Small Bottle Packaging Machine 0.6 MPa rinsing filling capping machine 4
