1000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Price: USD 13000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: 1000ml Shampoo Bottle Filler, Liquid And Paste Filling Machine Application: Beverage,Food,Chemical,Medical And So On
Capacity: 1000-1500BPH(customizable) Filling Accuracy: Over 99%
Machine Size: 2400(L)*1350(W)*1730(H) Mm³ Warranty: 1-year
Automatic Grade: Filling Automatically Driven Type: Electric And Pneumatic Driven
Voltage: 220V, 50/60Hz Or 380V,50/60HZ Packaging Type: Shampoo Bottles,Cans,Barrel, Glass Jars
Filling System: Servo Motor+piston, Servo Motor Control Diving
High Light:

1000ml Shampoo Bottle Filling Machine

,

4 Nozzle Liquid Detergent Filling Machine

,

1500BPH Shampoo Bottle Filling Machine


Product Description

1000ml Shampoo / Detergent Bottle Filler Liquid And Paste Bottle Filling Machine



Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as Shampoo, Disinfectant, hand sanitizer,Disinfectant, Detergent etc.. Good for 1000 ml liquid products filling.
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.

Spec and Feature

  • Adopts piston + servo motor driven fillin system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line

Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter:

Speed  1000-1500bph (four filling nozzles)
Filling accuracy  >=99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method piston + servo motor driven
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter

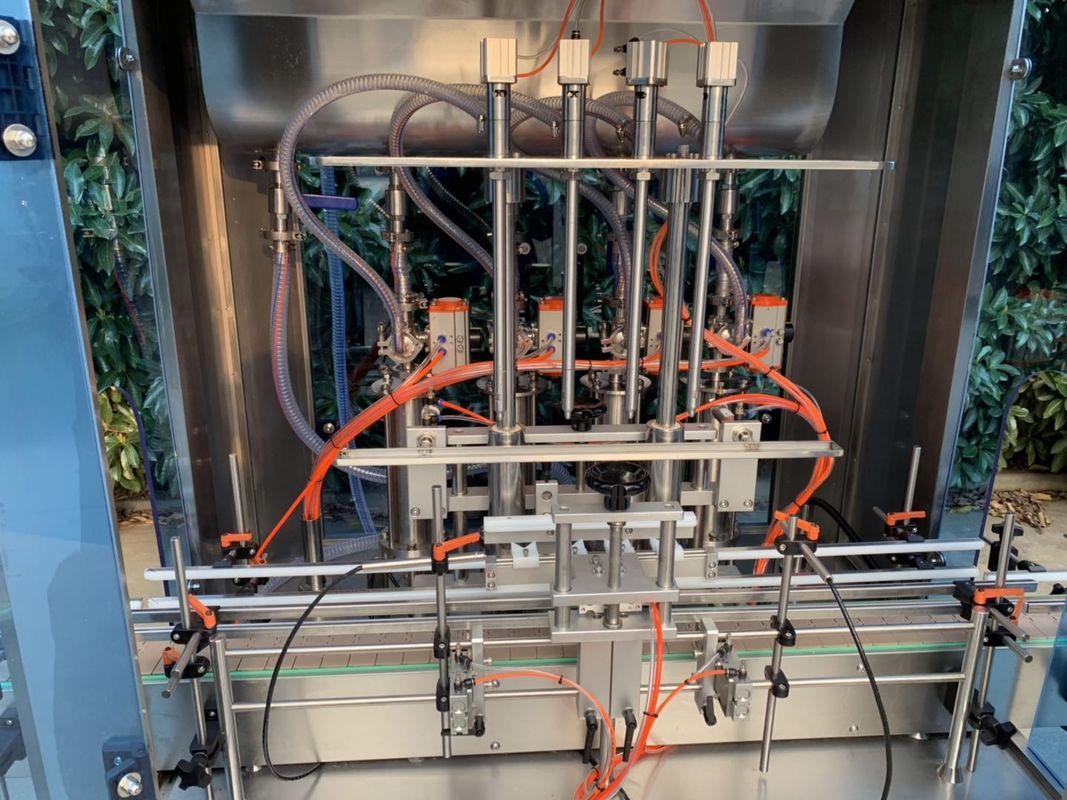

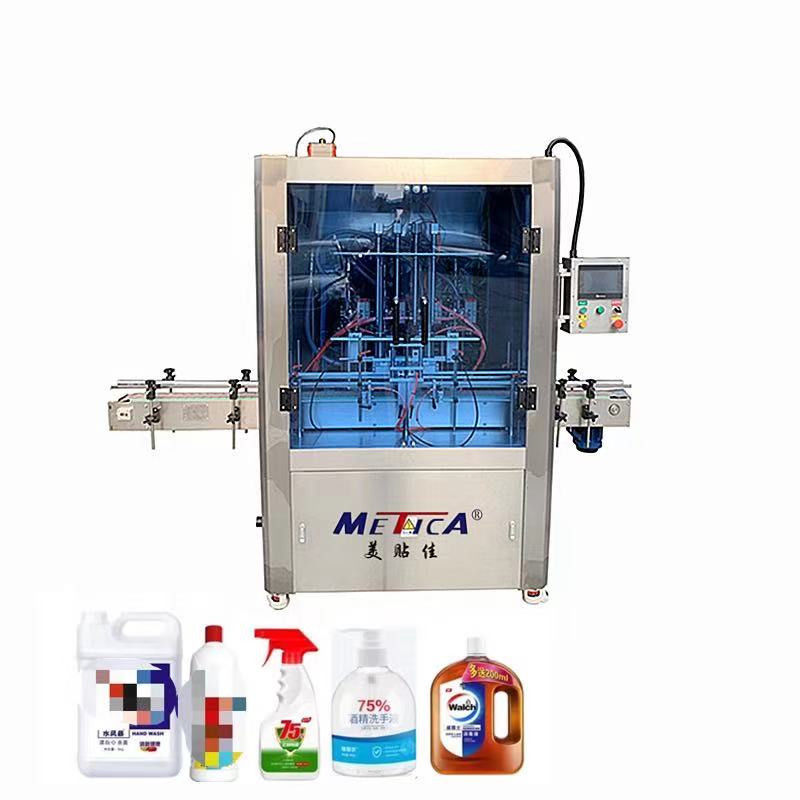

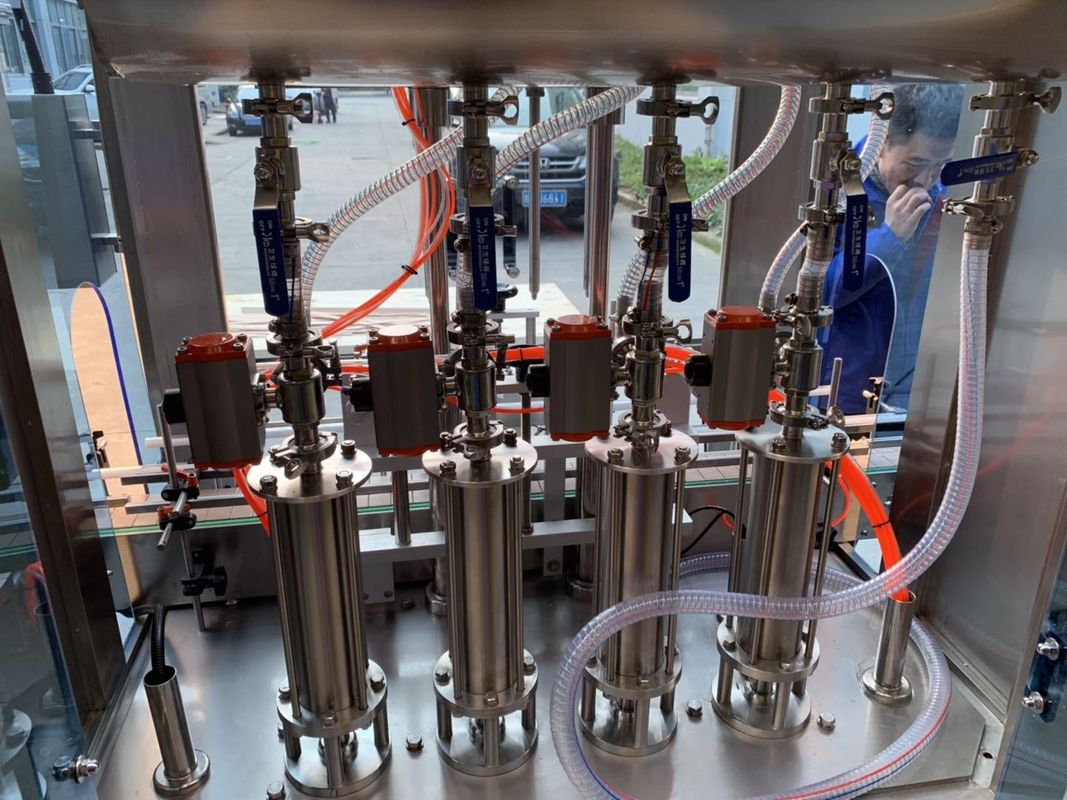

1000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine 0



1000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine 1

1000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine 2

1000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine 3

1000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine 4

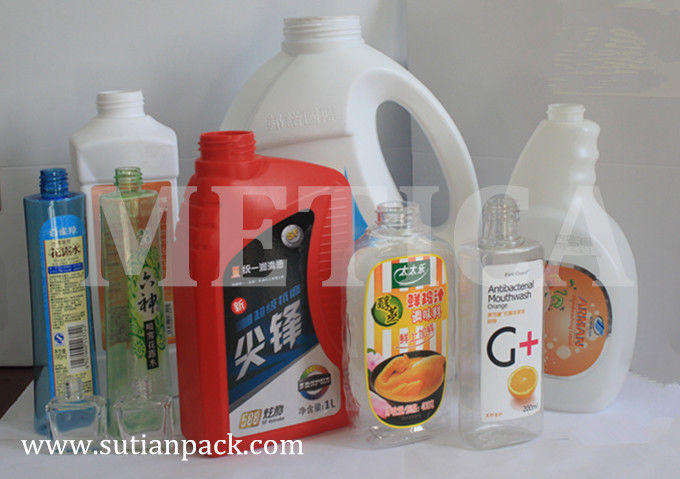

Samples display:



1000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine 51000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine 6

1000ml Shampoo Bottle Filling Machine 4 Nozzle Liquid Detergent Filling Machine 7
