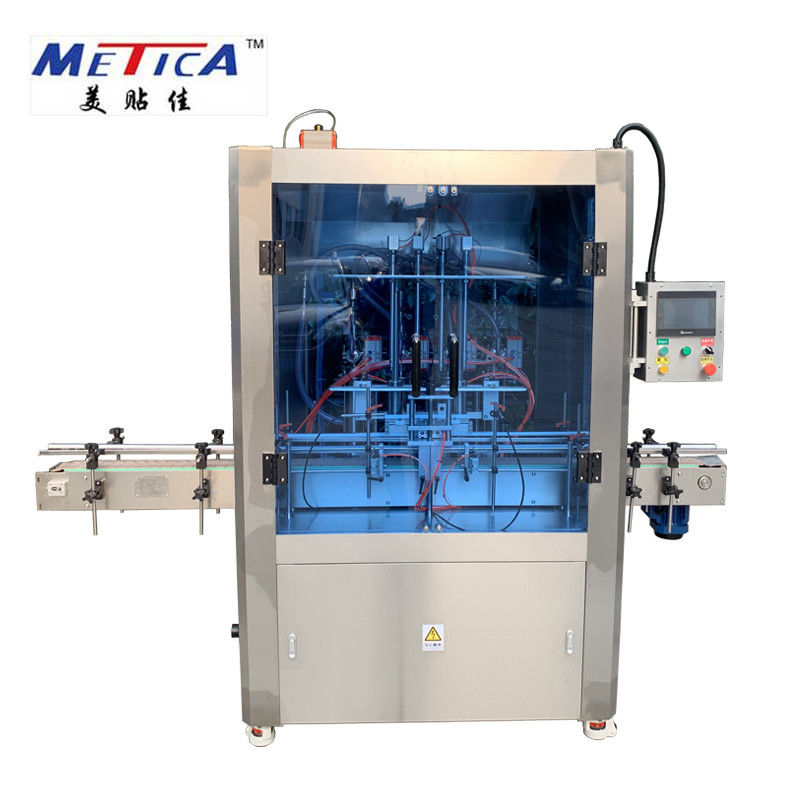

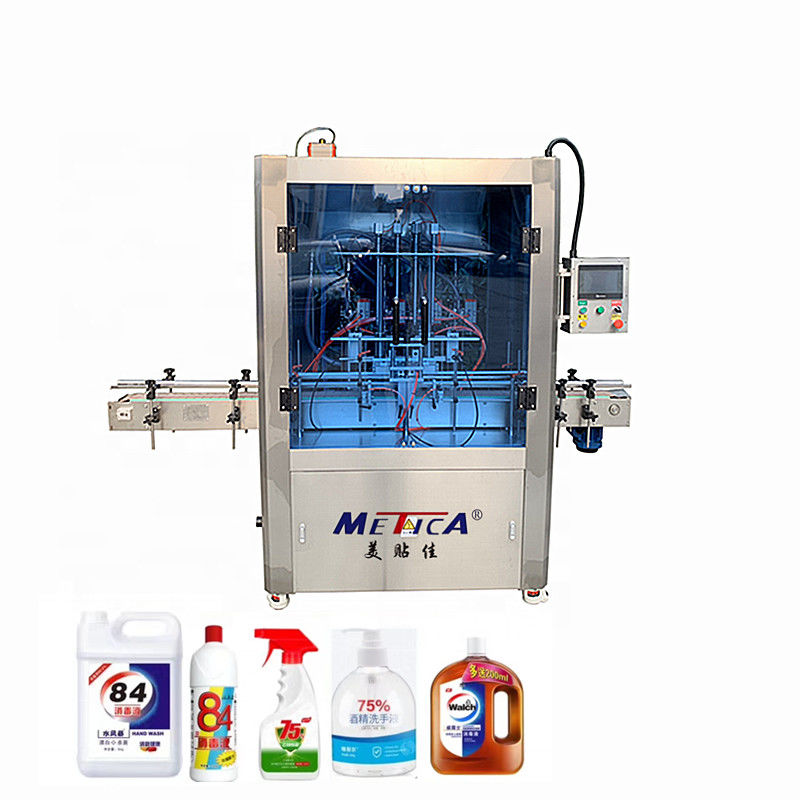

500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Price: USD 13000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: 500ml Hand Sanitizer Filler, Liquid And Paste Filling Machine Application: Beverage,Food,Chemical,Medical
Capacity: 1000-1500 BPH(customizable) Filling Accuracy: More Than 99%
Machine Size: 2400*1350*1730 Mm³ Warranty: One-year
Automatic Grade: Automatic Driven Type: Electric And Pneumatic
Voltage: 220V, 50/60Hz (customizable) Packaging Type: Bottles,Cans,Barrel, Glass Jars
Filling System: Servo Motor Driven Piston, Servo Motor Control Diving
High Light:

500ml Hand Sanitizer Bottle Filling Machine

,

Hand Sanitizer Bottle Filling Machine 50Hz

,

Hand Sanitizer Filling Machine PLC Control


Product Description

500ml Hand Sanitizer / Disinfectant / Detergent Liquid And Paste bottle Filling Machine



Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as Disinfectant and Medical Alcohol, hand sanitizer,Disinfectant / Detergent etc.. Good for 1000 ml liquid products filling.
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.

Spec and Feature

  • Adopts piston + servo motor driven fillin system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line

Work flow

  • Put bottle on conveyor by hand
  • Bottle move to the filling nozzles filling automatically
  • Bottle move out after filling

Parameter:

Speed  1500-2500bph (customizable)
Filling accuracy  >=99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml( can be customized)
Filling method piston + servo motor driven
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter







500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control 0



500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control 1

500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control 2

500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control 3

500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control 4





Samples display:



500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control 5500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control 6

500ml Hand Sanitizer Bottle Filling Machine 50Hz 60Hz PLC Control 7
