Multifunctional Automatic Tube Filling Sealing Machine Ultrasonic Tube Sealing Machine

Multifunctional Automatic Tube Filling Sealing Machine Ultrasonic Tube Sealing Machine

Multifunctional Automatic Tube Filling Sealing Machine

1500BPH Automatic Tube Filling Sealing Machine

Multifunctional Ultrasonic Tube Sealing Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTGF-20

Contact Us
Request A Quote
Product Details
Name:
Multipurpose Oil Cream Soft Tube Filling And Sealing Machine
Application:
Cosmetics And Food, Chemical...
Capacity:
1000-1500BPH(related To Filling Volume)
Qualified Rate:
Around 99%
Machine Size:
1300x950x1700 Mm³
Warranty:
One-year
Feature:
Automatic Filling,sealing And Tail Cutting, Ultrasonic Sealing
Hopper Volume:
Around 30-40 L
Voltage:
220V, 50/60Hz
Automatic Grade:
Fully Automatic
Type:
Tube Filling Sealing Machine
Weight:
About 300kg
Highlight:

Multifunctional Automatic Tube Filling Sealing Machine

,

1500BPH Automatic Tube Filling Sealing Machine

,

Multifunctional Ultrasonic Tube Sealing Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 7000-9000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
15-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

Automatic Multipurpose Oil Cream For Face / Body / Hands Ultrasonic Soft Tube Filling And Sealing Machine



Application:

  • This machine is designed for plastic and composite soft tube filling and sealing. Fully automatic load tube, filling, sealing and tail cutting
  • It works for both liquid and sticky products like hand sanitizer, cream, tooth paste and so on
  • As long as the materials is not very thick, same machine can work for both plastic tube and plastic aluminium composite tube.



Feature:

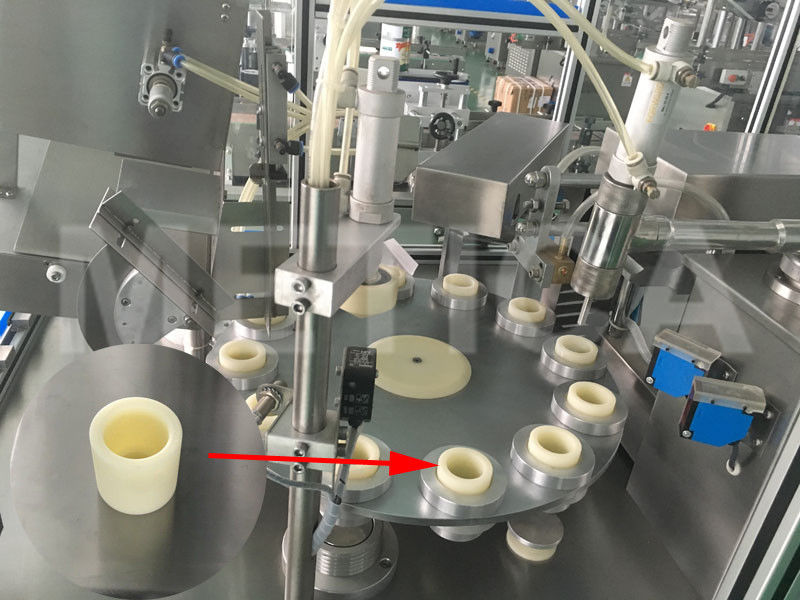

  • it has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up and change filling volume.
  • The filling volume is adjustable on touch screen. It can fill 5-50ml, 50-300ml liquid or sticky products.
  • The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark

Work flow:

  • Load tube automatically
  • Orientation automatically
  • Filling automatically
  • Ultrasonic sealing
  • Tail cutting automatically



Parameter:

Speed  1000-1500 BPH(related to filling volume)
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >=99%
Ultrasonic power rate 1.5KW
Power supply 220V 50hz 1.5kw
Air supply 0.6 MPa
Machine size 1300*950*1700mm
Feature PLC, touch screen, ultrasonic sealing, hopper

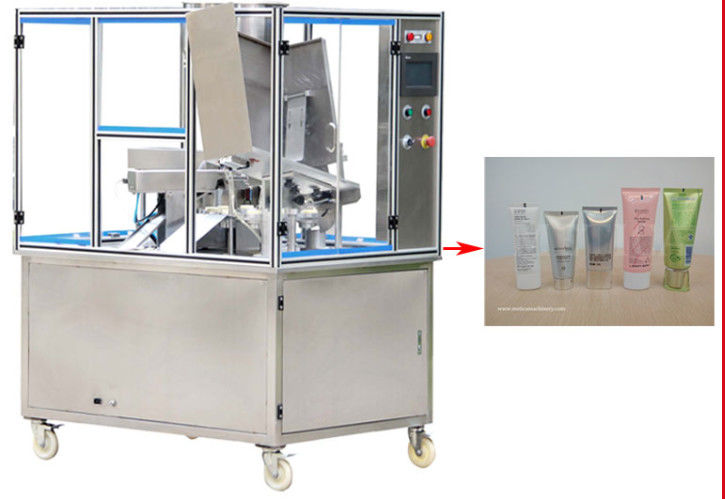

Multifunctional Automatic Tube Filling Sealing Machine Ultrasonic Tube Sealing Machine 0

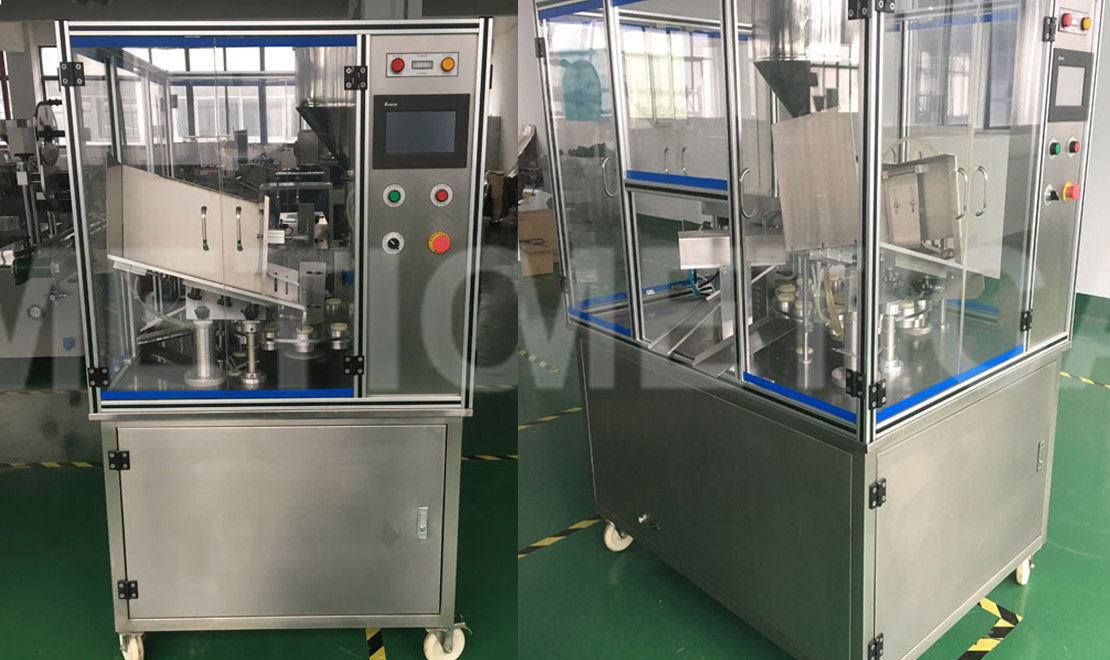

Multifunctional Automatic Tube Filling Sealing Machine Ultrasonic Tube Sealing Machine 1

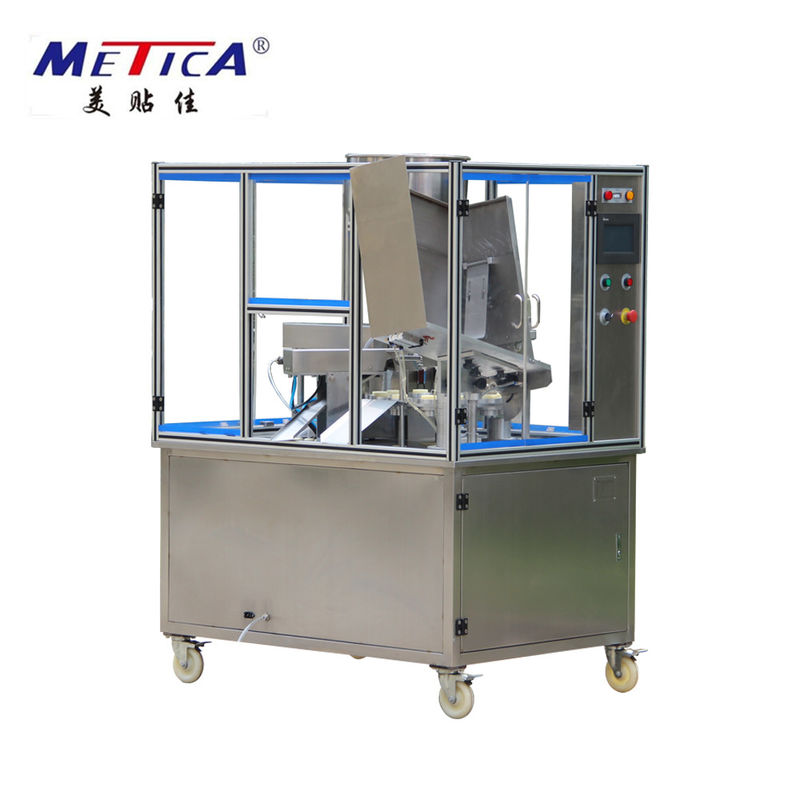

Multifunctional Automatic Tube Filling Sealing Machine Ultrasonic Tube Sealing Machine 2



Samples display:

Multifunctional Automatic Tube Filling Sealing Machine Ultrasonic Tube Sealing Machine 3
