500BPH-1500BPH Automatic Tube Filling And Sealing Machine For Face / Body

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-6A
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Ultrasonic Soft Tube Filling And Sealing Machine Application: Oil Cream Soft Tube Filling, Sealing And Tail Cutting
Capacity: 500-1500BPH Qualified Rate: >=99%
Machine Size: 800*900*1700 Mm³ Warranty: 1-year
Feature: Ultrasonic Sealing, PLC Control Hopper Volume: Around 30-40L
Packaging Material: Plastic Soft Tube, Aluminum Plastic Composite Tube Driven Type: Electric And Pneumatic
Weight: Around 190kg Automatic Grade: Semi-Automatic,manual
High Light:

1500BPH Automatic Tube Filling And Sealing Machine

,

190kg Automatic Tube Filling And Sealing Machine

,

500BPH Automatic Filling And Sealing Machine


Product Description

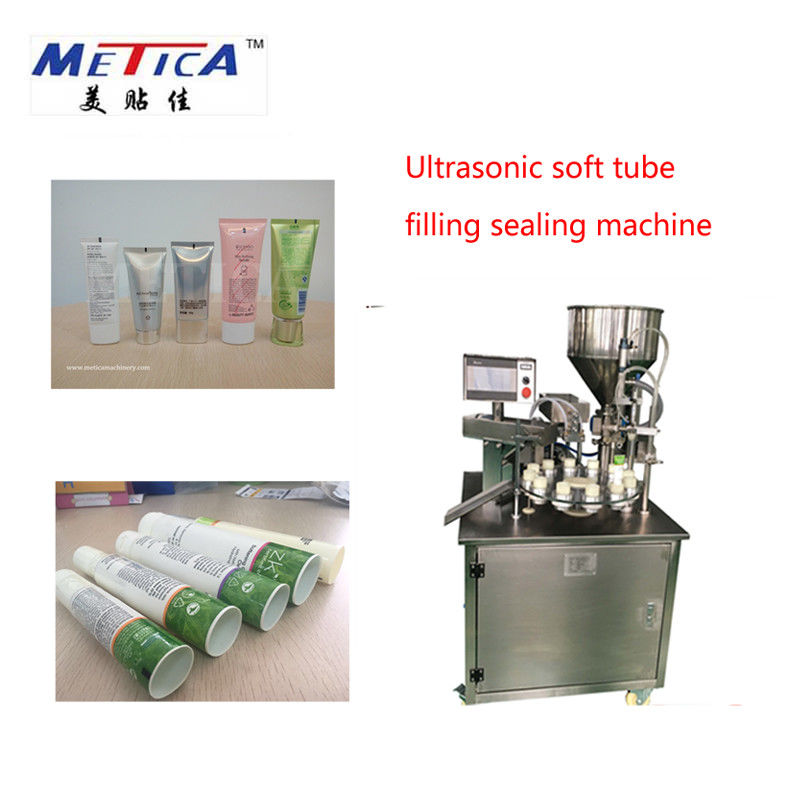

Multipurpose Oil Cream For Face / Body / Hands Ultrasonic Plastic Soft Tube Filling Machine And Sealing Machine



Application:

  • This machine is designed specially for plastic soft tube filling and sealing. (load tubes by hand)
  • It works for both liquid and sticky products like cream, honey, tooth paste etc
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on. Same machine can work for both plastic and plastic aluminium composite



Feature:

  • The filling volume is adjustable on touch screen. It can fill 5-300ml liquid or sticky products.
  • The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark
  • it has tube orientation mechanism to locate the tubes position

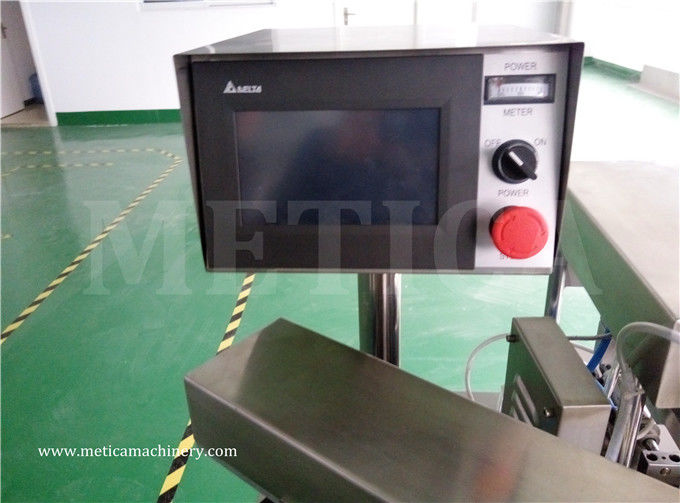

  • It is controlled by PLC and operate on color touch screen, easy to set up

Work flow:

  • Load tube by hand
  • Orientation automatically
  • Filling automatically
  • Ultrasonic sealing
  • Tail cutting automatically



Parameter:



Speed  500-1500 bph
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >99%
Ultrasonic power rate 1.0KW
Power supply 220V 50hz 1kw
Air supply 0.6MPa
Machine size 800*900*1700mm

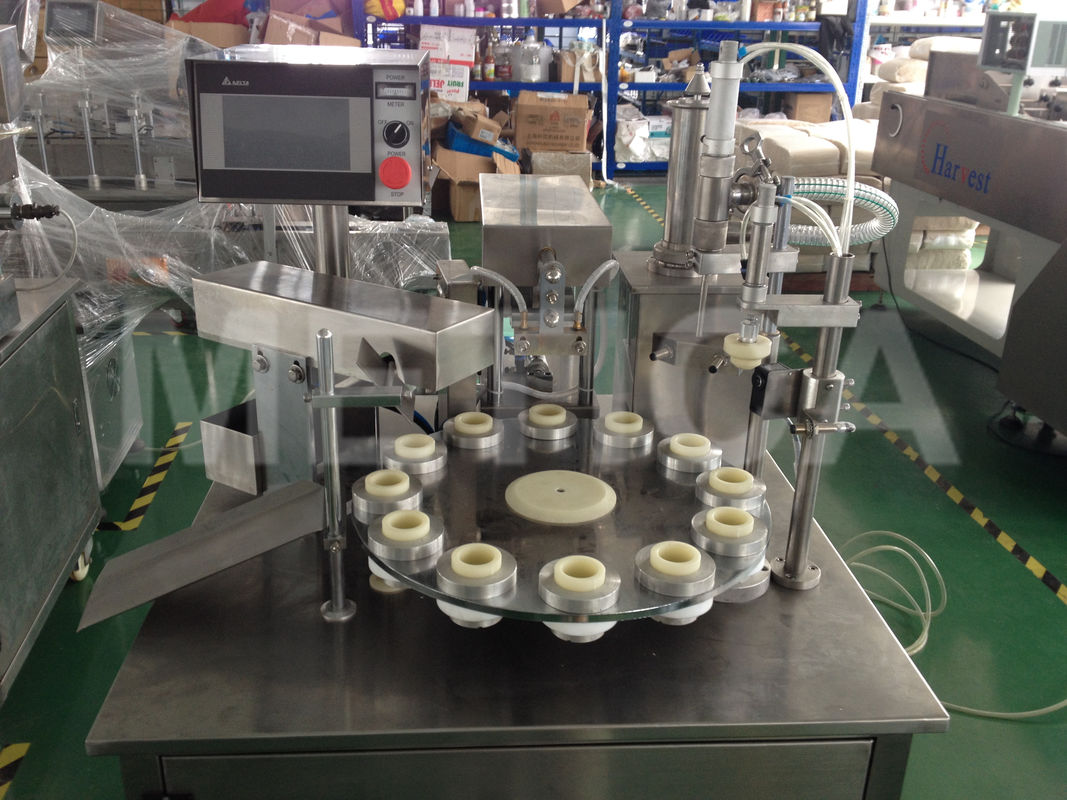

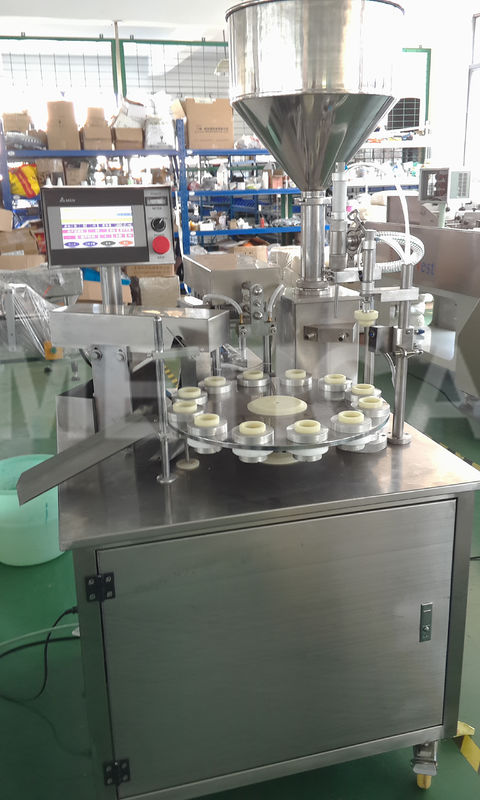

500BPH-1500BPH Automatic Tube Filling And Sealing Machine For Face / Body 0

500BPH-1500BPH Automatic Tube Filling And Sealing Machine For Face / Body 1

500BPH-1500BPH Automatic Tube Filling And Sealing Machine For Face / Body 2

500BPH-1500BPH Automatic Tube Filling And Sealing Machine For Face / Body 3



Samples display:

500BPH-1500BPH Automatic Tube Filling And Sealing Machine For Face / Body 4
