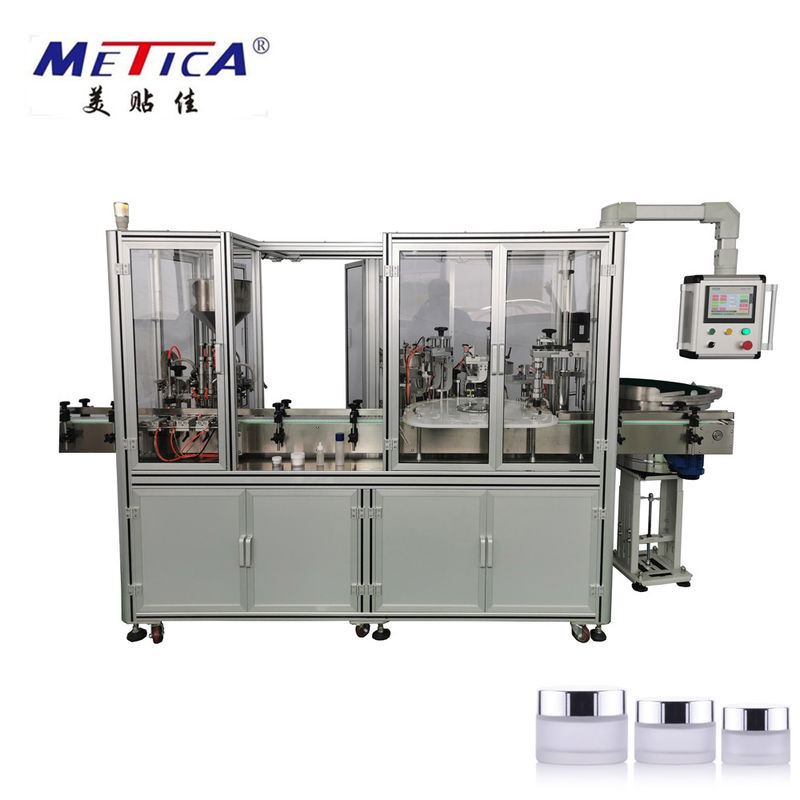

10-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics

10-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics

100ml Cream Filling And Capping Machine

Intellectualization Cream Filling And Capping Machine

High Intellectualization filling capping machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTFC-1000

Contact Us
Request A Quote
Product Details
Name:
Hand Cream Bottle Filling Capping Machine
Capacity:
2000-4000 BPH(customizable)
Qualified Rate:
>99%
Machine Size:
2400*1300*1600 Mm³
Warranty:
One Year
Type:
Filling Machine And Capping Machine Monoblock In One
Automatic Grade:
Automatic Filling And Capping
Filling Volume:
10-100g,100-500g(customizable)
Weight:
About 500kgs
Application:
Beverage,Food,Chemical,Medical,Commodity
Product Name:
Hand Cream Products Bottle Filling Machine
Bottle Type:
Glass Jar And Plastic Jar Or Bottle
High Light:

100ml Cream Filling And Capping Machine

,

Intellectualization Cream Filling And Capping Machine

,

High Intellectualization filling capping machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 15000-30000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
25-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description
Customized Automatic 10 - 100ml Hand Cream Filling Capping Machine For Cosmetics Monoblock Filling And Capping Machine


General introduction and advantages

  • 1. Automatic hand cream and lotion filling capping machine, liquid filling capping labeling machine, adopt piston filling method, controlled by micro- computer, filling accurate. (Can be changed to ceramic pump for special work surroundings).
  • 2. Adopt advanced electrical and pneumatic parts, ensure stable work ability and long use time, high filling precision, capping qualified rate.
  • 3. Achieve no bottle, no filling; No bottle no capping, No leak, no drool during filling process. Reduce detergent material consumption, increase user's economic benefit.
  • 4. User can adjust speed and filling volume by touch screen setting. Easy to use, to clean, to adjust, to maintain.
  • 5. Can be matched with protective cover to forbid pollution.
  • 6. Connected to the liquid container through corrosion-resistant medical infusion tube.
  • 7. Can work alone or connected to labeling machine to work together.
  • 8. Can be matched with wheels to move the machine easily.



Brief Introduction

  • 1. Make hand cream and lotion bottles enter into conveyor belt in order under the rotary force.
  • 2. Four nozzles servo motor driven filling, high filling speed and precision.
  • 3. High labeling precision, work stable.
  • 4. Less labor, just need one operator, high production efficiency.



Main Features

  • 1) Simple structure in linear type ,easy in installation and maintation.
  • 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
  • 3) Running in a high automatization and intellectualization,no pollution
  • 4) PLC control, adjust in touch screen, easy operated, less labor



Work flow:

  • Manually load bottles on conveyor or turntable(optional)

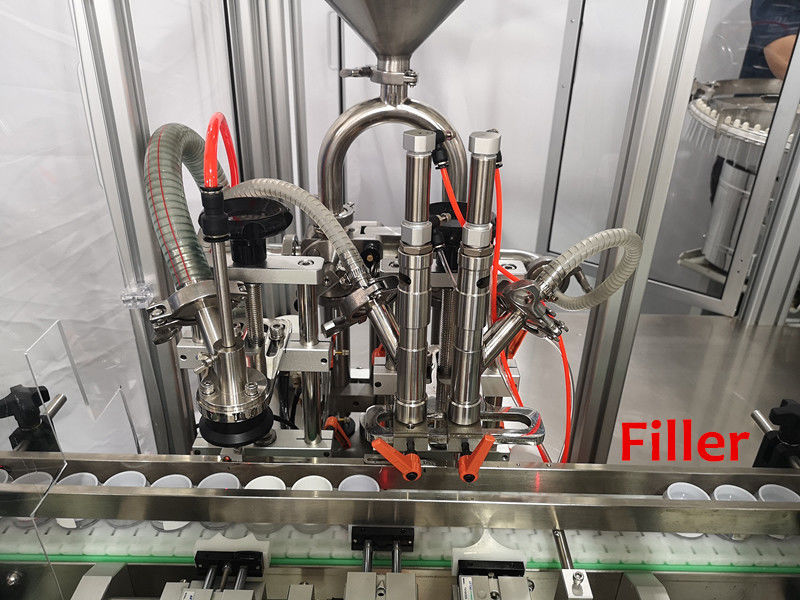

  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically

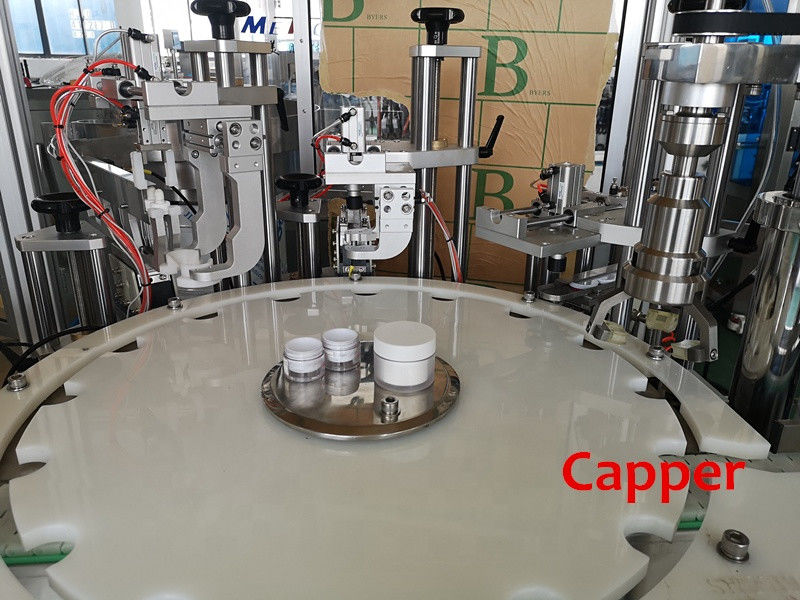

  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping



Parameter:

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Product capacity
2000-4000B/H (Customized)
Noise
lower than 65 decibel
Product applicable
10-100ml (Customized)
Filling applicable
hand sanitaizar 75 % alcoholic
Filling method
Piston + servo motor
Power
220V,50/60Hz(customized)
Filling Precision
±1%
Air
0.6-0.8Mpa
Capping precision
±1%
Filling line Size
6000*1500*1600mm
Labeling precision
±1mm



10-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics 010-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics 110-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics 210-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics 3

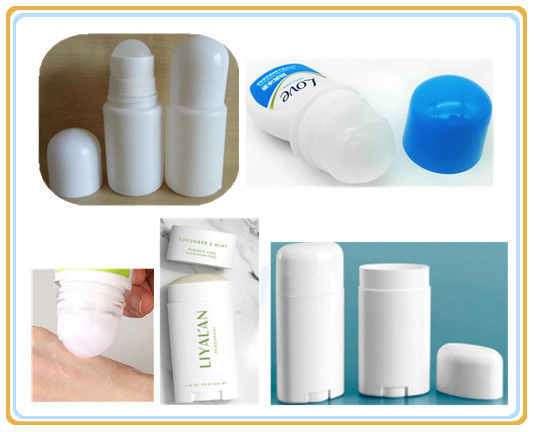

Samples display:

10-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics 410-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics 5
