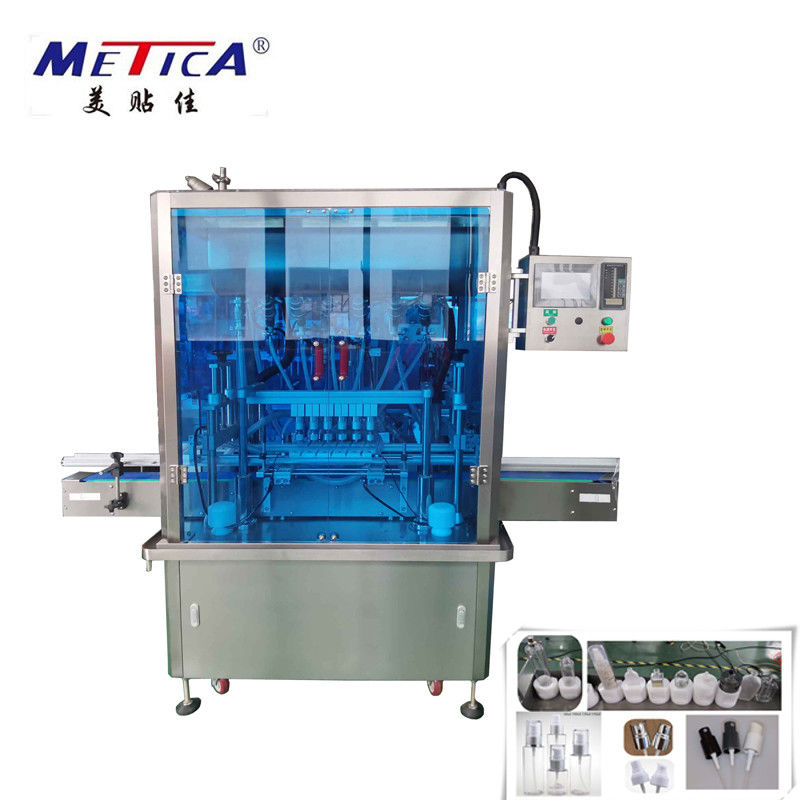

220V Vacuum Liquid Filling Machine , 1.5kw Low Medium Viscosity Liquid Bottling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTVF-1000
Minimum Order Quantity: 1 SET
Price: USD 13000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Vacuum Overflow Foamy Liquid Filling Machine Application: For Foamy Liquid Products Perfume, Hand Sanitizer Etc...
Capacity: 1500-2500BPH (6 Filling Nozzles) Filling Accuracy: >99%
Machine Size: 2400*1350*1730 Mm³ Warranty: One-year
Automatic Grade: Automatic Driven Type: Electric And Pneumatic
Voltage: 220V;50/60HZ Packaging Type: Plastic Bottle And Glass Bottle
Filling System: Vacuum Overflow Filling
High Light:

220V Vacuum Liquid Filling Machine

,

1.5kw Medium Viscosity Liquid Bottling Machine

,

2500BPH Vacuum Liquid Filling Machine


Product Description

Automatic Vacuum Overflow Type Foamy Liquid With Low To Medium Viscosity Bottle Filling Machine



Application

  • This machine used for foamy liquid with low to medium viscosity,such as Perfumr, Disinfectant and Medical Alcohol, hand sanitizer
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.

Spec and Feature

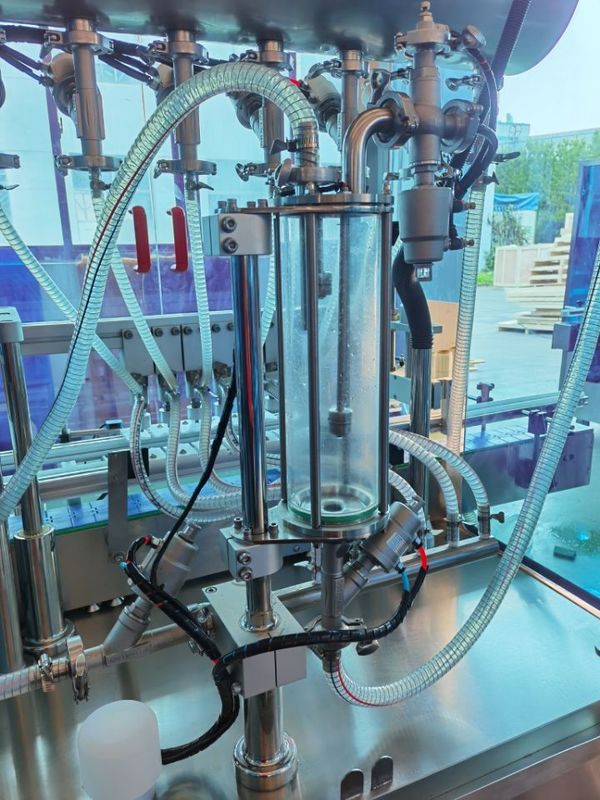

  • Adopts vacuum overflow filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.

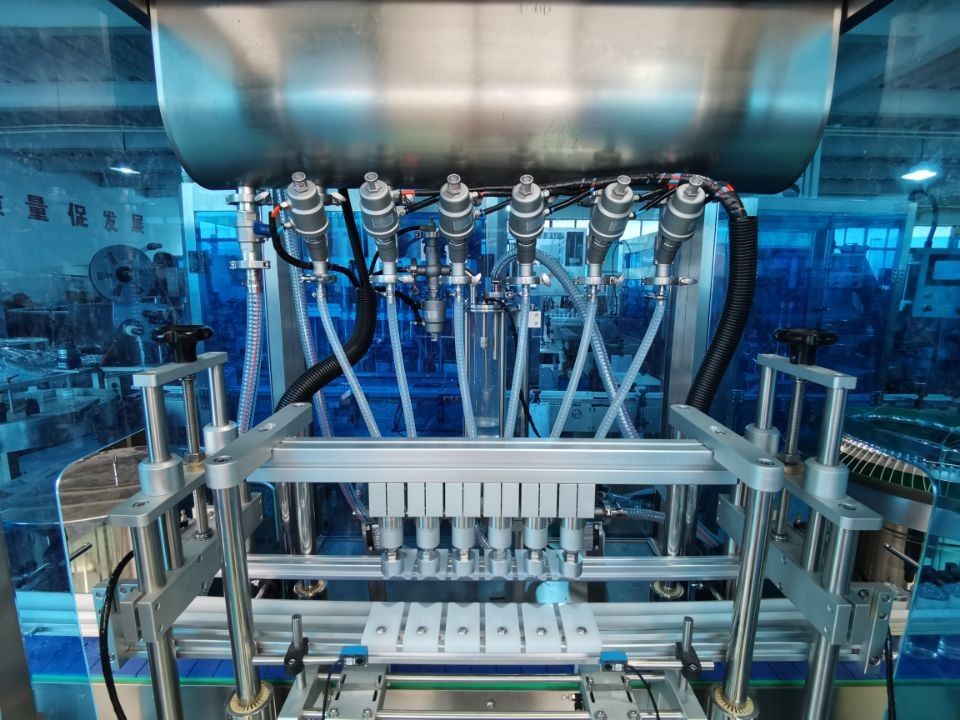

  • Adopts 6 filling nozzles, can change to 4/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line

Parameter:

Filling nozzles
4-12 nozzles
Filing methods
vaccum,overflow type
Application
foamy liquid with low to medium viscosity
Power/Air supply
220V 50/60Hz 1.5kw; 0.8mpa
Feature

 PLC, touch screen

Filling volume 100-1000ml, 200-2000ml(can be customized)
Filling accuracy >99%






220V Vacuum Liquid Filling Machine ,  1.5kw Low Medium Viscosity Liquid Bottling Machine 0

220V Vacuum Liquid Filling Machine ,  1.5kw Low Medium Viscosity Liquid Bottling Machine 1220V Vacuum Liquid Filling Machine ,  1.5kw Low Medium Viscosity Liquid Bottling Machine 2220V Vacuum Liquid Filling Machine ,  1.5kw Low Medium Viscosity Liquid Bottling Machine 3

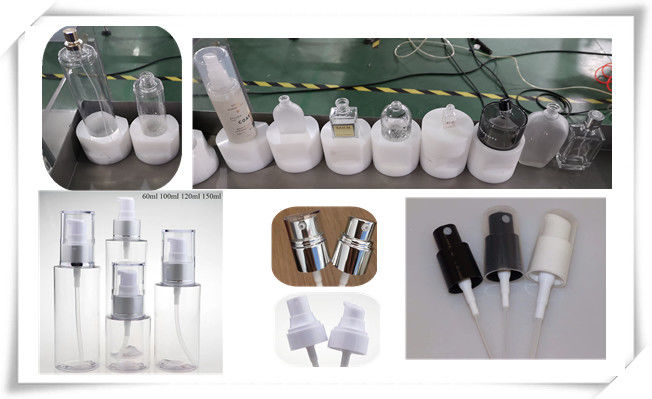

Samples display:

220V Vacuum Liquid Filling Machine ,  1.5kw Low Medium Viscosity Liquid Bottling Machine 4
