Ultrasonic Hand Sanitizer Tube Filling Sealing Machine 30L-40L Hopper volume

Ultrasonic Hand Sanitizer Tube Filling Sealing Machine 30L-40L Hopper volume

1500BPH Tube Filling Sealing Machine

30L Tube Filling Sealing Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTGF-20

Contact Us
Request A Quote
Product Details
Name:
Hand Sanitizer Soft Tube Filling And Sealing Machine
Application:
Cosmetics And Food, Chemical,medical...
Capacity:
1000-1500BPH
Qualified Rate:
>=99%
Machine Size:
1300x950x1700 Mm
Warranty:
One Year
Feature:
Auto Filling, Ultrasonic Sealing
Hopper Volume:
30-40 L
Voltage:
220V, 50/60Hz (customizable)
Automatic Grade:
Automatic Filling And Sealing
Type:
Tube Sealing Machine
Weight:
Around 300kg
High Light:

1500BPH Tube Filling Sealing Machine

,

30L Tube Filling Sealing Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 7000-9000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
15-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

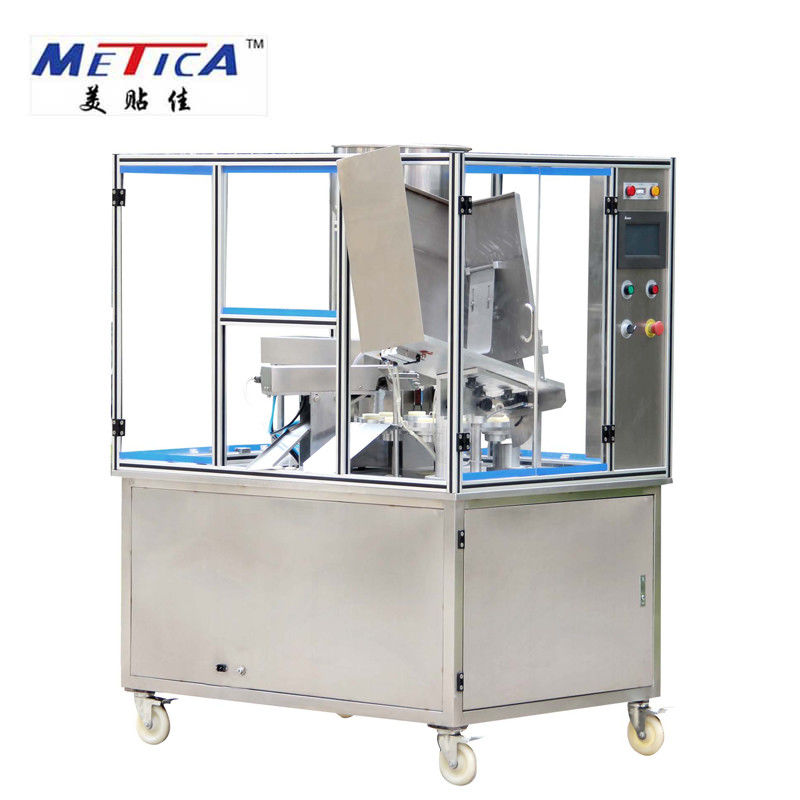

Automatic Ultrasonic Hand Sanitizer Soft Tube Filling Machine And Sealing Machine



Application:



  • This machine is designed for plastic and composite soft tube filling and sealing. Fully automatic load tube, filling, sealing and tail cutting
  • It works for both liquid and sticky products like hand sanitizer, cream, tooth paste and so on
  • As long as the materials is not very thick, same machine can work for both plastic tube and plastic aluminium composite tube.

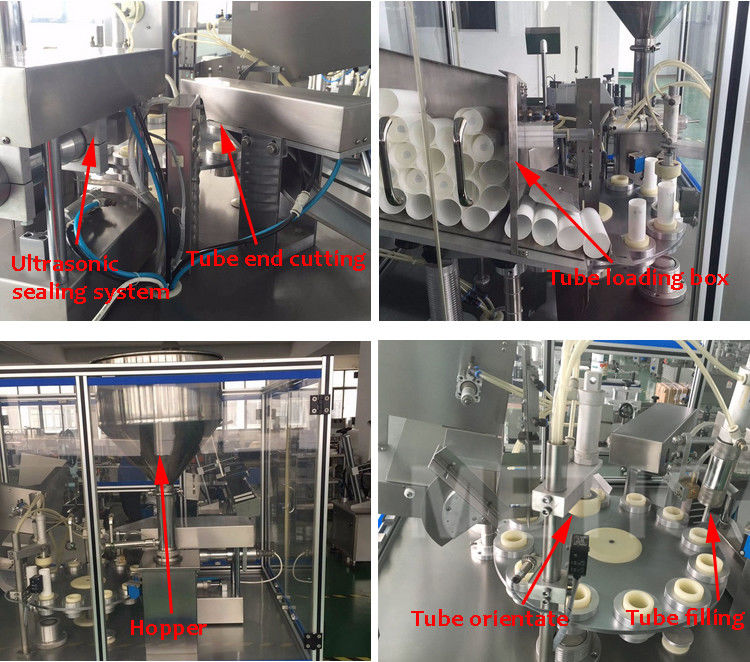

Feature:

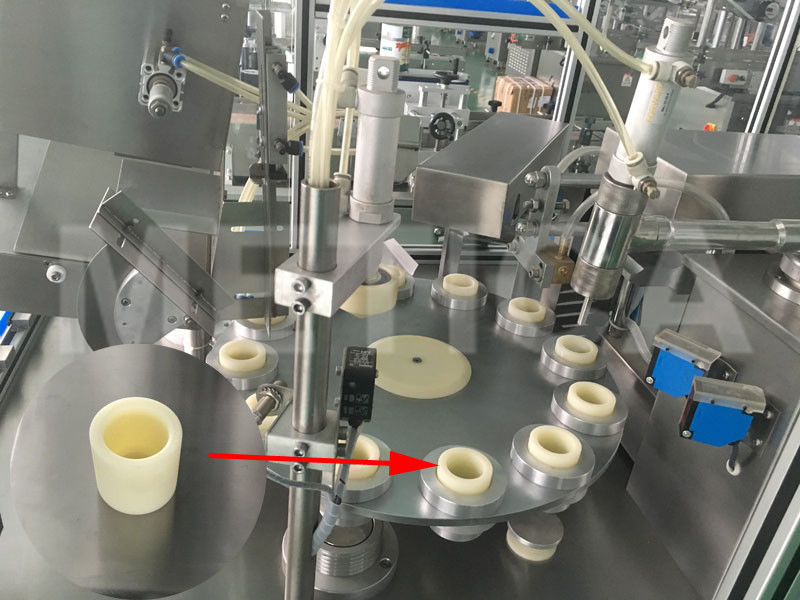

  • it has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up and change filling volume.
  • The filling volume is adjustable on touch screen. It can fill 5-50ml, 50-300ml liquid or sticky products.
  • The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark

Work flow:

  • Load tube automatically
  • Orientation automatically
  • Filling automatically
  • Ultrasonic sealing
  • Tail cutting automatically



Parameter:



Speed  1000-1500 bph
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >=99%
Ultrasonic power rate 1.5KW
Power supply 220V 50hz 1.5kw
Air supply 0.6 MPa
Machine size 1300*950*1700mm
Feature PLC, touch screen, ultrasonic sealing, hopper



Ultrasonic Hand Sanitizer Tube Filling Sealing Machine 30L-40L Hopper volume 0



Ultrasonic Hand Sanitizer Tube Filling Sealing Machine 30L-40L Hopper volume 1

Ultrasonic Hand Sanitizer Tube Filling Sealing Machine 30L-40L Hopper volume 2

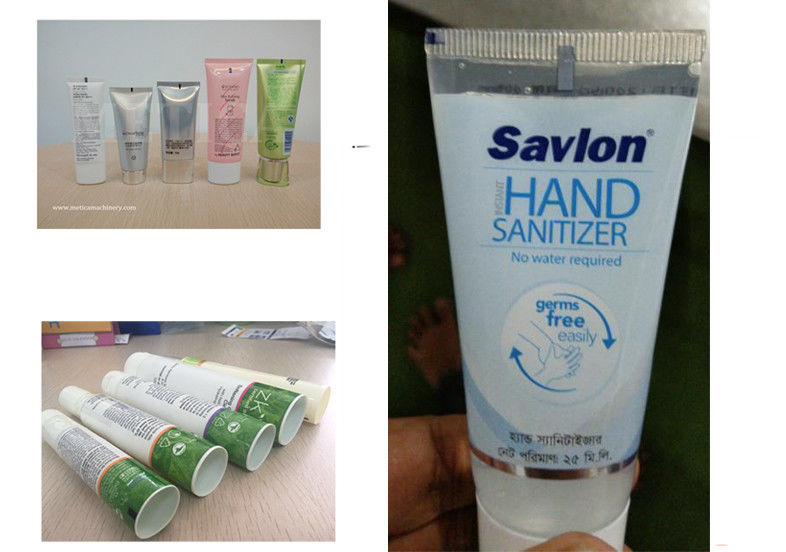

Samples display:

Ultrasonic Hand Sanitizer Tube Filling Sealing Machine 30L-40L Hopper volume 3
