Automatic Rotary Type High Speed Sticker Round glass jar and plastic Bottle Labeling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-200H
Minimum Order Quantity: 1 SET
Price: USD 8000-15000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 5-10 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: New Designed Rotary Type High Speed Labeling Machine Application: Beverage,Food,Chemical,Medical,Commodity
Capacity: 9000-12000 BPH Labeling Accuracy: +/-1mm
Machine Size: 2000*1200*1500 Mm Warranty: 1 Year
Voltage: 220V, 50/60HZ Automatic Grade: Automatic Labeling
Weight: Around 300kg Type: High Speed Labeling Machine For Round Bottle
Function: Sticker Round Bottle Labeling Machine,stick Labels For Round Bottles Packaging Type: Bottles,cans,jars Etc...

Product Description

Automatic Rotary Type High Speed Sticker Round Glass Jar And Plastic Bottle Labeling Machine



Labeling Application

  • Label Adhesive Paper Sticker to round bottles or Cylinder Products
  • Widely used in chemical, cosmetics, pharmaceuticals, food industries and so on...
  • Products Applicable: round, cylindrical, tapered bottle or products
  • Labels Applicable: adhesive paper sticker



Labeling Machines Features

  • New designed labeling work station, labeing speed up to 200BPM
  • Labels wipped on the products by a turning soft belt
  • With Rail and Dispenser for Bottles Feeding
  • Automatic Labeling,work independently or connected to a production line, save labors
  • Easy to operate on Touch Screen, labeling controlled by PLC, no products, no labeling
  • Labeling Steadily, strong S/S frame construction, all the electronics parts are imported from Germany, Japan, France, USA
  • High Labeling Speed and Labeling Accuracy
  • Customization is available



Options Function for the Labeling Machine

  • Coder Printer to print batch number, production date, expiry date and so on on the label when labeling
  • Clear Label sensor for round labeling





Labeling Machine Technical Parameters



Production capacity 9000-12000 BPH
Labeling precision +-1 mm(exclude product and label error)
Product size applicable 20mm≤product diameter ≤280mm; Height≤200mm
Label size appilcable 10mm≤width≤150mm; Length≥10mm
Power supply 220V 50/60Hz, 1KW
Weight 300KG
Machine size 2000*1200*1500mm³
Feature PLC, touch screen control

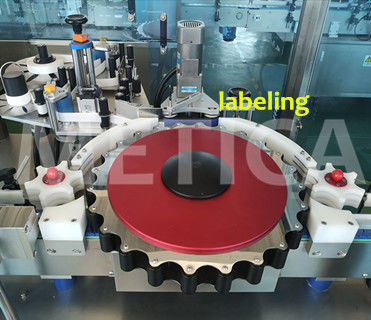

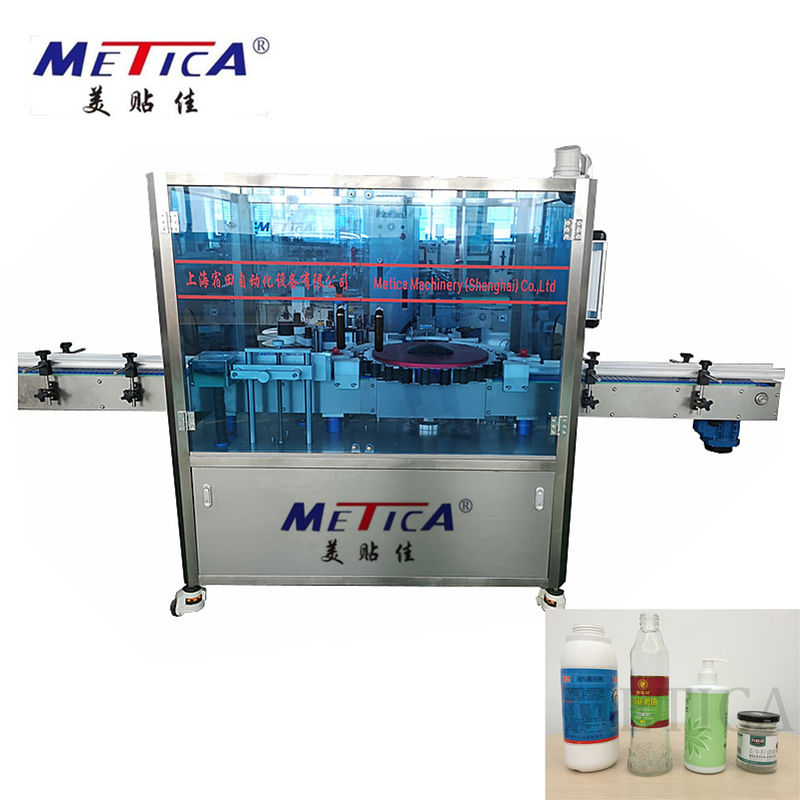

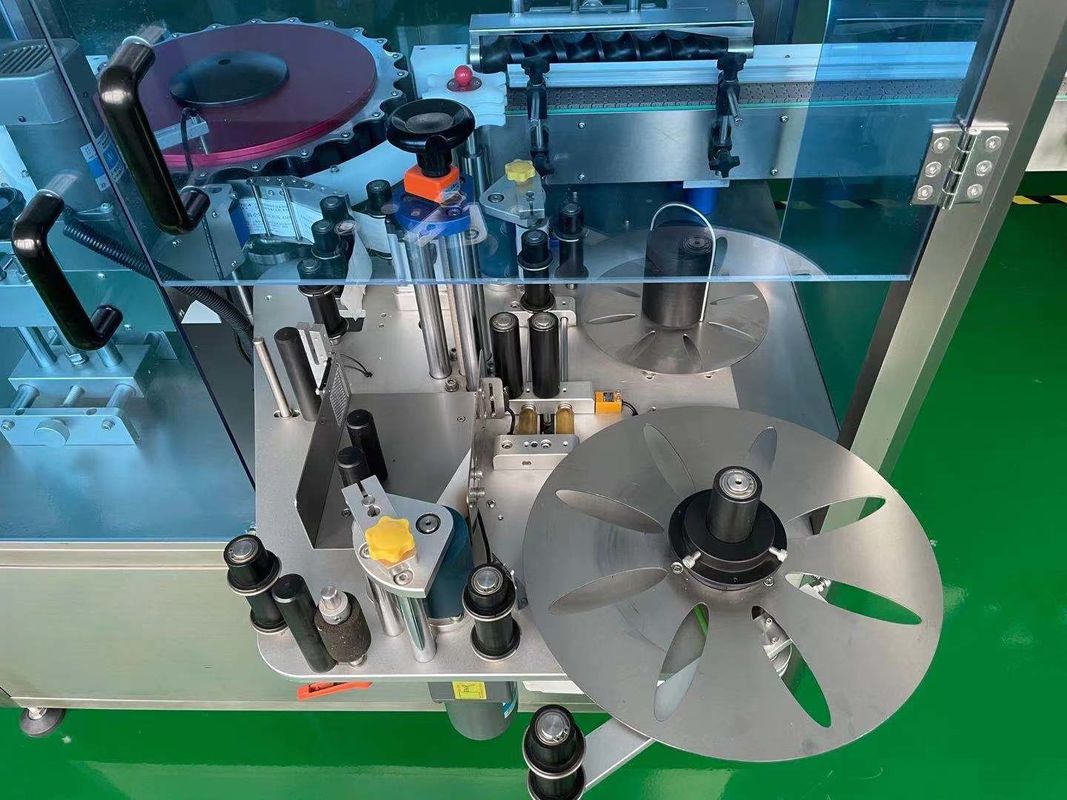

Automatic Rotary Type High Speed Sticker Round glass jar and plastic Bottle Labeling Machine 0Automatic Rotary Type High Speed Sticker Round glass jar and plastic Bottle Labeling Machine 1Automatic Rotary Type High Speed Sticker Round glass jar and plastic Bottle Labeling Machine 2





Samples display:

Automatic Rotary Type High Speed Sticker Round glass jar and plastic Bottle Labeling Machine 3Automatic Rotary Type High Speed Sticker Round glass jar and plastic Bottle Labeling Machine 4
