products

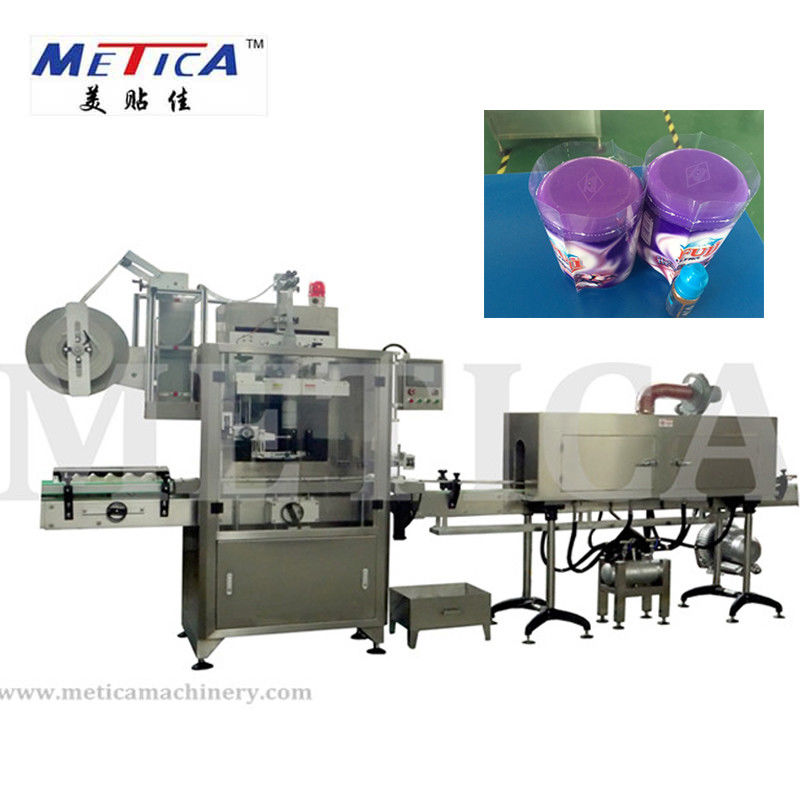

Automatic Labeling Machine Automatic PET Bottle PVC Shrink Sleeve Bottle Labeling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTSL-100
Minimum Order Quantity: 1 SET
Price: USD 8000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Shrink Sleeve Labeling Machine For Bottle Capacity: Max 9000BPH-12000BPH
Labeling Accuracy: +/-1mm Machine Size: 3000mm*860mm*1800mm
Warranty: 1 Year Automatic Grade: Automatic Shrink Sleeve Labeling
Weight: Around 500kg Type: Sleeve Labeling Machine
Packaging Type: Bottles,Case,Cartons,cans,jars Bottle Type: Round Square Flat Pet Bottle
Application: Food,Beverage,Medical,Chemical,Commodity Etc... Label Material: Plastic And Film Labels

Product Description

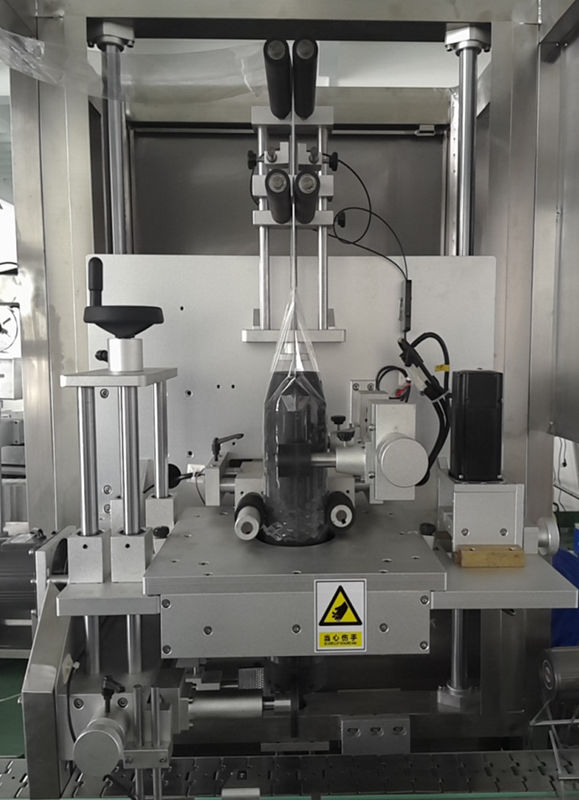

Automatic Labeling Machine Automatic PET Bottle PVC Shrink Sleeve Bottle Labeling Machine





Application

  • Shrink sleeve labels are widely used for Labeling the shrinkable film( PVC/PP/PET/OPS/PLA) on square bottle and round bottle



Product Feature:

  • 1.The MTSL-150 Auto shrink sleeve for bottles is made of stain-steel and high quality Aluminum alloy,struction in reason,tighten,adjustment conveniently.
  • 2.Not need ground feet bolts,move conveniently,flexible assort production field.

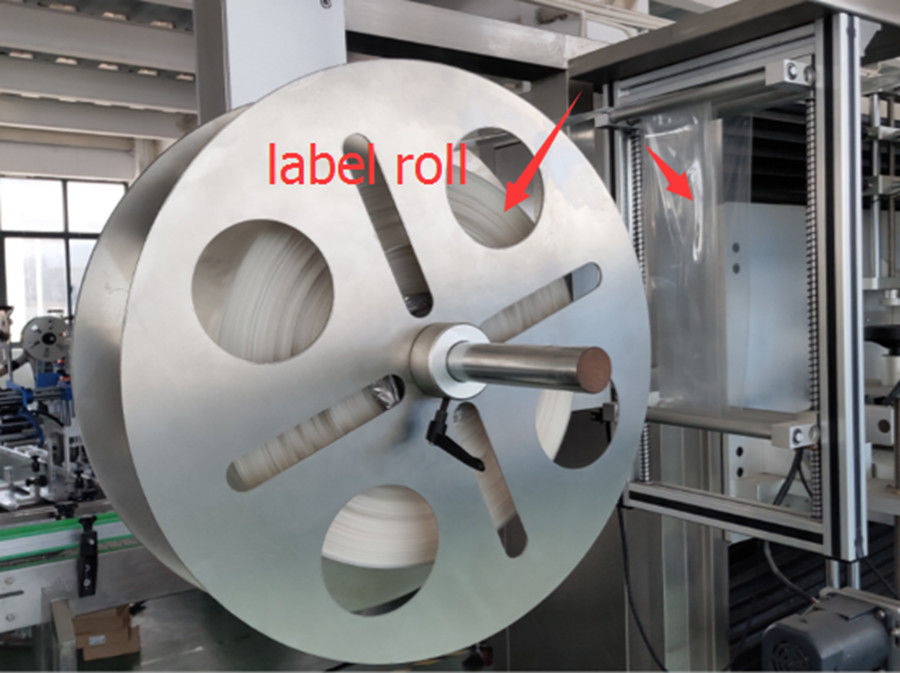

  • 3.Shrink film volume label frame,according different volume label paper pipe adjusted range
  • 4.Transmission machine can be adjusted conveniently without tools,which make it more suitable for bottle sizes.
  • 5.Forced insertion design proves reasonable and convenient.
  • 6.Volume label cut of measure system ensure small error
  • 7.Special designed knife plate is changefree with the related specifications.
  • 8.Newel nip system,chang and installation rapidly without tools.
  • 9.Disport bottle screw.located strap.transport chain adopts synchronization adjust model,adjust facility.
  • 10.Introduce Japanese servo motor and high-delicacy photo electricity,the length of cutting label is precision.

Parameter

Main machine size 3000mm*860mm*1800mm
Machine body&Weight Stainless Steel/Painted Steel, 500KGS(around)
Power AC 3-PHASE 220V/380V
Main machine power 2.5KW
Production speed Max 9000BPH-12000BPH
Bottle diameter range Φ20mm-Φ130mm
Knife plate range Φ20mm-Φ50mm;Φ50mm-Φ95mm; Φ95-Φ130mm
Label height 25mm-300mm
Label material PVC/PP/PET/OPS/PLA
Label thickness 0.03mm-0.13mm
Paper tube inner diameter 5''-10'' is available

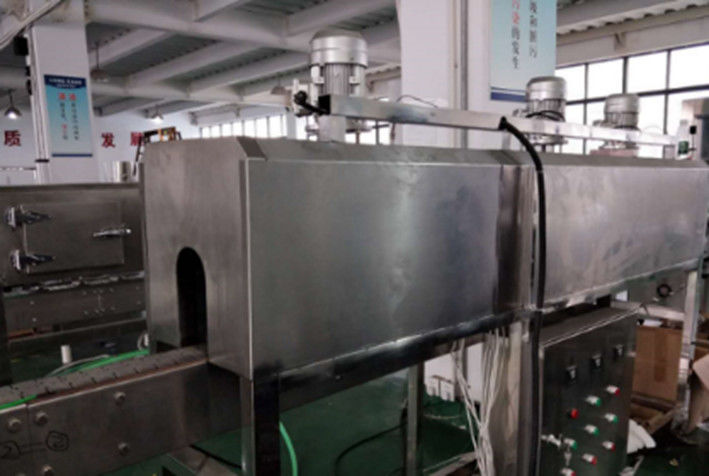

Shrink tunnel Heat or steam shrink tunnel is optional

Automatic Labeling Machine Automatic PET Bottle PVC Shrink Sleeve Bottle Labeling Machine 0Automatic Labeling Machine Automatic PET Bottle PVC Shrink Sleeve Bottle Labeling Machine 1Automatic Labeling Machine Automatic PET Bottle PVC Shrink Sleeve Bottle Labeling Machine 2Automatic Labeling Machine Automatic PET Bottle PVC Shrink Sleeve Bottle Labeling Machine 3



Samples display:

Automatic Labeling Machine Automatic PET Bottle PVC Shrink Sleeve Bottle Labeling Machine 4
