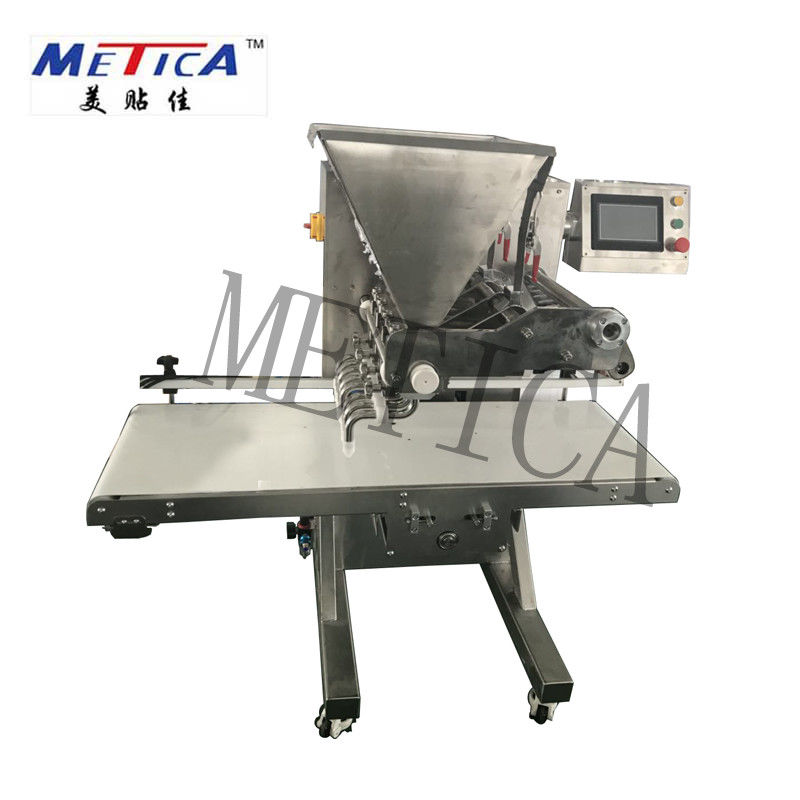

Multifunctional Dough Pastry Filling Machine 8 Nozzles 2000BPH-3000BPH

Multifunctional Dough Pastry Filling Machine 8 Nozzles 2000BPH-3000BPH

Multifunctional Dough Pastry Filling Machine

Pastry Filling Machine 2000BPH

Dough Filling Machine 8 Nozzles

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTMD-8

Contact Us
Request A Quote
Product Details
Name:
Cake Filling Machine With 8 Nozzles
Application:
For Food Industry...
Capacity:
2000-3000 BPH(8 Nozzles)
Filling Accuracy:
>99%
Machine Size:
1500*900*1500 Mm
Warranty:
1 Year
Automatic Grade:
Automatic
Voltage:
220V, 50HZ
Packaging Type:
Bottles,Cans,Barrel
Filling System:
Servo Motor Driven
Other Name:
Cake Dough Filling Machine
Highlight:

Multifunctional Dough Pastry Filling Machine

,

Pastry Filling Machine 2000BPH

,

Dough Filling Machine 8 Nozzles

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 13000-16000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
25-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

Automatic Dough Filling Machine For Cake And Multi-Functional Cake Filling Machine Bottle Filling Machine



Application

  • 1) The machine is designed for bakery decoration, fill batter, custard and cake etc.,
  • 2) PLC and touch screen control, easy to adjust the filling volume
  • 3) The machine can be operated independently or connected to other production equipment.
  • 4) In addition to the standard applicable products, it can be increased, widened and lengthened according to customer requirements.
  • 5) It can also be specially customized according to the special product and the special position of some products.



Spec and Feature

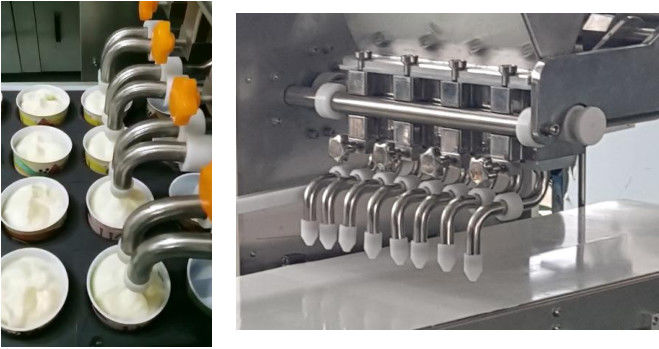

  • The machine adopt 8 filling nozzles, each filling nozzle can be combined or can be filled separately.
  • Easy to change nozzles for different types of decorations.
  • Adopt PLC + touch screen control system. Easy to adjust the filling volume.
  • E-stop button can stop machine right away once the machine has any problem.
  • Adopt servo motor drive piston filling method, can fill high viscosity product with high efficient.
  • High precision filling volume. Also filling volume can be customized according to customer requirements.



Technical Parameters



Production capacity 2000-3000 BPH (8 nozzles)
Filling method piston + servo motor driven
Filling accuracy +/- 1%
Power supply 220V 50/60Hz, 0.5kw
Air supply 0.4-0.6 MPa
Machine size 1500*900*1500 mm
Application product size Diameter: 20 mm - 100 mm
Feature PLC, touch screen



Multifunctional Dough Pastry Filling Machine 8 Nozzles 2000BPH-3000BPH 0

Multifunctional Dough Pastry Filling Machine 8 Nozzles 2000BPH-3000BPH 1Multifunctional Dough Pastry Filling Machine 8 Nozzles 2000BPH-3000BPH 2Multifunctional Dough Pastry Filling Machine 8 Nozzles 2000BPH-3000BPH 3



Samples display:

Multifunctional Dough Pastry Filling Machine 8 Nozzles 2000BPH-3000BPH 4Multifunctional Dough Pastry Filling Machine 8 Nozzles 2000BPH-3000BPH 5
