5-50ml Small Bottle Filling And Capping Machine High Intellectualization

5-50ml Small Bottle Filling And Capping Machine High Intellectualization

Small Bottle Filling And Capping Machine

50ml Bottle Filling And Capping Machine

bottle filling capping machine High Intellectualization

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

CE

Model Number:

MTCCFC-100

Contact Us
Request A Quote
Product Details
Name:
5-50ml Credit Card Square Bottle Filling Capping Machine
Application:
For Pocket Spray Bottle And Credit Card Square Bottle
Capacity:
1500-2000 BPH(can Be Customized)
Filling Accuracy:
>=99%
Machine Size:
1200*1350*1650 Mm
Warranty:
One Year
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Type:
Filling Machine, Capping Machine In One
Bottle Type:
Pocket Spray Bottle And Credit Square Bottle
High Light:

Small Bottle Filling And Capping Machine

,

50ml Bottle Filling And Capping Machine

,

bottle filling capping machine High Intellectualization

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 8000-20000/SET
Packaging Details
Fumigation-free wooden boxes that meet international standards
Delivery Time
25-30 days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description

5-50ml Pocket Spray Bottle Hand Sanitizer Liquid Filling Machine For Monoblock Filling And Capping Machine



Application

  • The filling capping machine is mainly used for plastic perfume spray bottle and square shape credit card bottles
  • Suitable for small volume 5-50 ml liquid automatic filling and capping, like hand sanitizer and perfume and so on

Spec and Feature

  • The whole machine is designed especially for 5-50ml liquid filling, capping
  • The line speed is 20-30 bottles per minute
  • Famous branded electrical parts guarantee the line working stable and a longer working life
  • Adopts peristaltic pump, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • Suitable for single, mass production, but no more than 3 kinds
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1-2 workers



Work flow:

  • Manually load cards and caps
  • Automatic filling with 2 filling nozzles
  • One press cap station
  • Push out cards

Note: We can make fully automatic machine with higher speed for you as well



Parameter:

Speed  1500-2000bph (customizable)
Filling accuracy  >=99%
Filling volume 5-50ml(customizable)
Filling method

peristaltic pump

Power supply 220V 50hz 2kw
Bottles applicable cartridge,credit card square flat bottle and similar
Caps applicable press caps

Application

Liquid
Feature PLC, touch screen

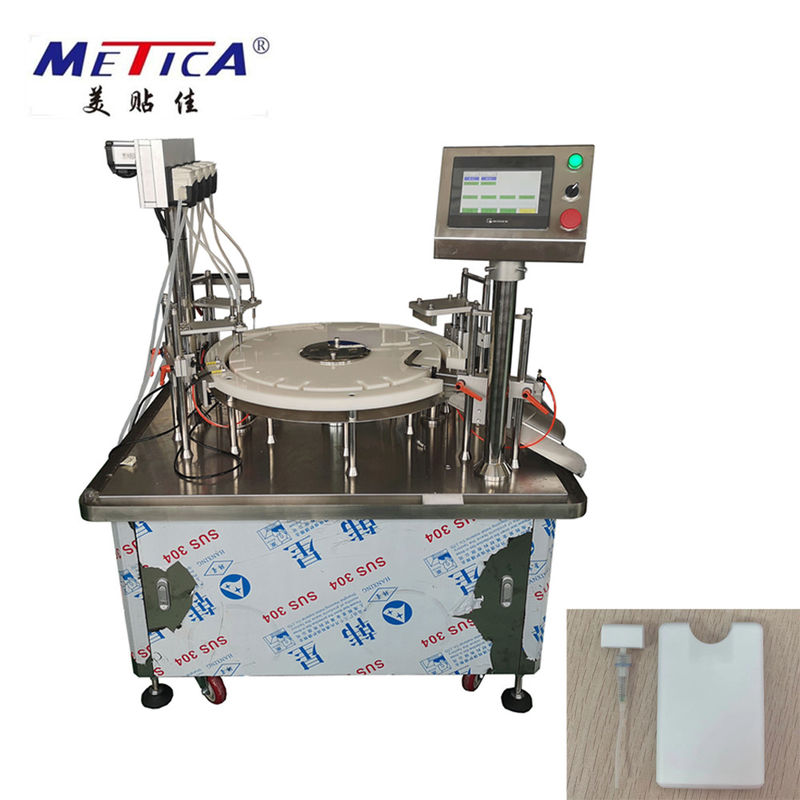

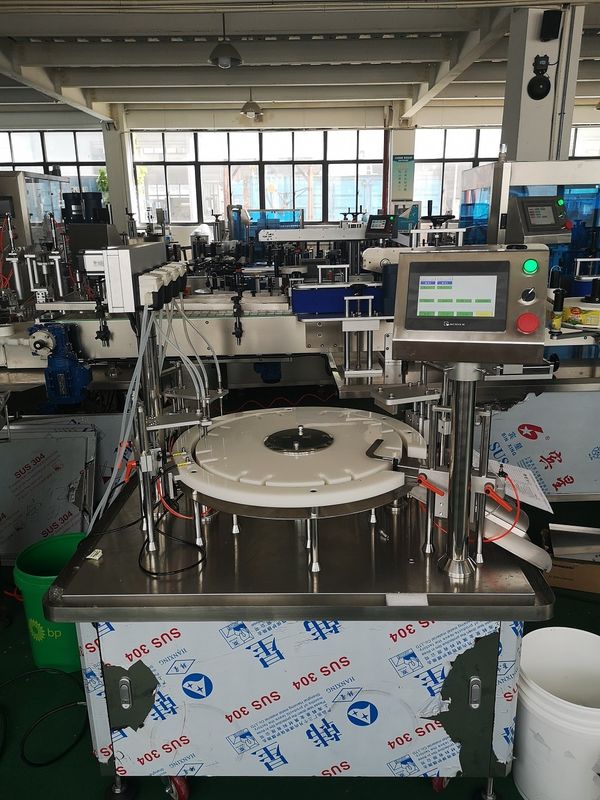

5-50ml Small Bottle Filling And Capping Machine High Intellectualization 0

5-50ml Small Bottle Filling And Capping Machine High Intellectualization 1

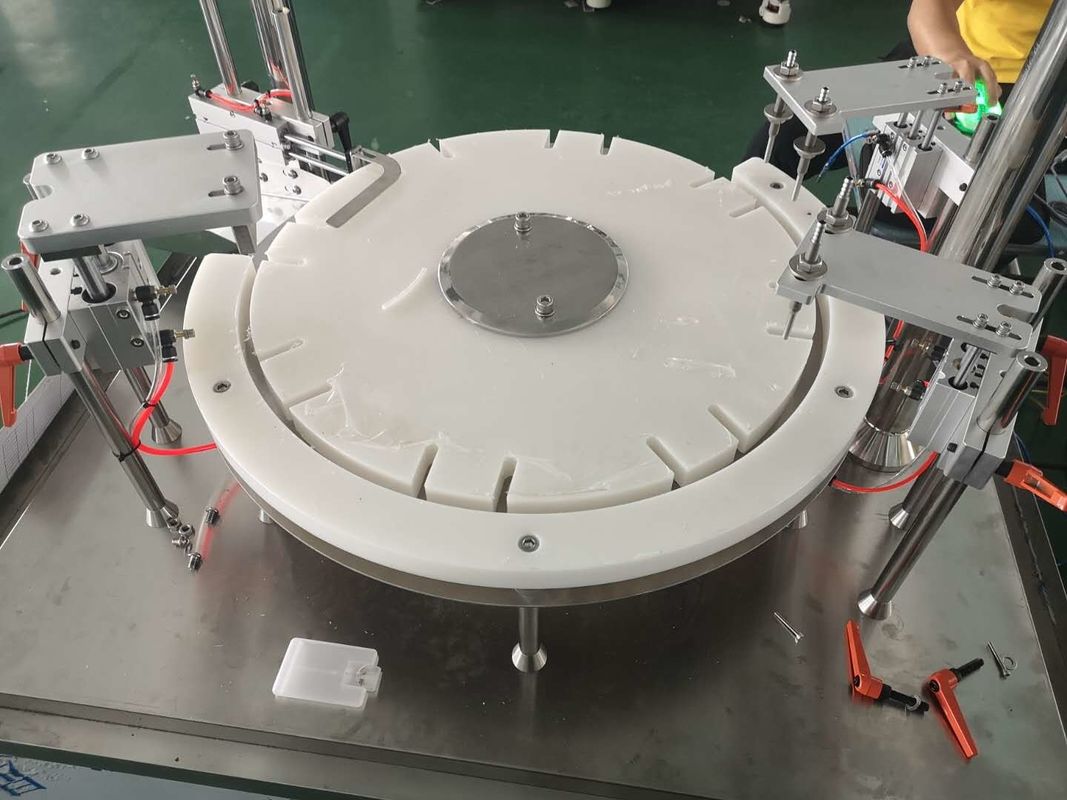

Bottle and cap feeder of automatic machine:

5-50ml Small Bottle Filling And Capping Machine High Intellectualization 2

5-50ml Small Bottle Filling And Capping Machine High Intellectualization 3

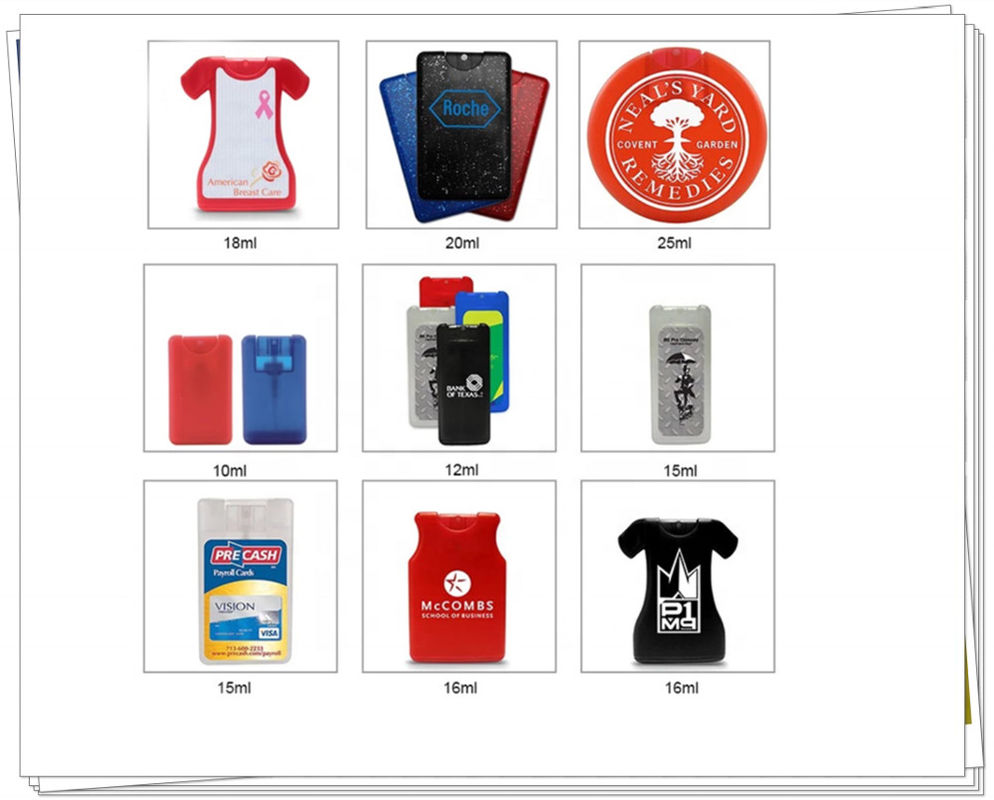

Samples display:

5-50ml Small Bottle Filling And Capping Machine High Intellectualization 4

5-50ml Small Bottle Filling And Capping Machine High Intellectualization 5
