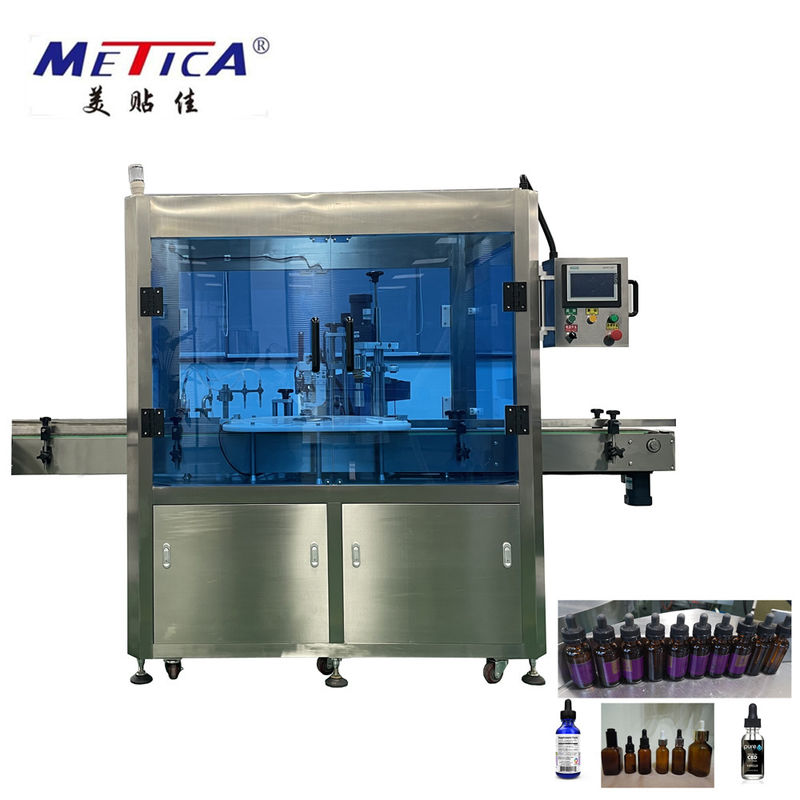

Glass Bottle Monoblock Filling And Capping Machine 99% Filling Accuracy

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Glass Dropper Bottle Filling Capping Machine Application: For Glass Dropper Bottle Filling And Capping
Capacity: 1500-2000BPH(can Be Customized) Filling Accuracy: >=99%
Machine Size: 250*135*165 Cm Warranty: One Year
Type: Filling Machine, Capping Machine Monoblock Automatic Grade: Automatic Filling And Capping
Filling Volume: 10-50ml(customizable) Weight: Around 300kg
High Light:

99% Monoblock Filling And Capping Machine

,

300kg glass bottle filling and capping machine

,

2000BPH Monoblock Filling And Capping Machine


Product Description

Automatic Glass Dropper Bottle Filling Machine Cbd Oil Cartridge And Monoblock Filling And Capping Machine



Application

  • The machine is good for Glass dropper bottle, Plastic and similar bottles.
  • The machine is used for all kinds of liquid products filling and capping, mainly small bottle with volume 10-50 ml.
  • E-Cigarette, Health Care Oil, Eye Drop, Glue, Perfume, Essential Oil and similar products is available.

Spec and Feature

  • The whole machine is designed especially for 10-50ml liquid filling, capping
  • The line speed is 20-30 bottles per minute
  • Famous branded electrical parts guarantee the line working stable and a longer working life
  • Adopts peristaltic pump or piston pump, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • Suitable for single, mass production.
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1 workers



Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping
  • We can make fully automatic machine with higher speed for you as well





Speed  1500-2000bph (customizable)
Filling accuracy  >=99%
Filling volume 10-50ml(can be customized)
Filling method

servo motor + piston or peristaltic pump

Power supply 220V 50hz 2kw
Bottles applicable glass dropper bottle, plastic bottle
Caps applicable press caps/ screw caps/Dropper cap

Application

Liquid or viscosity liquid
Feature PLC, touch screen, fully automatic

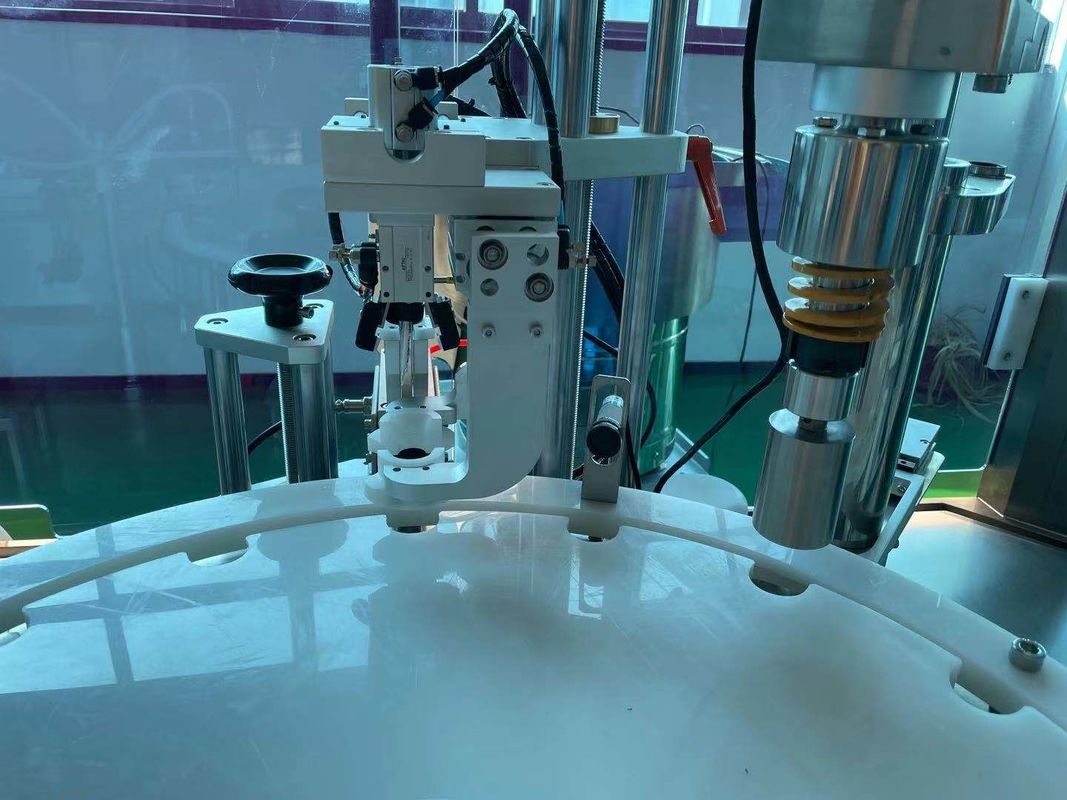

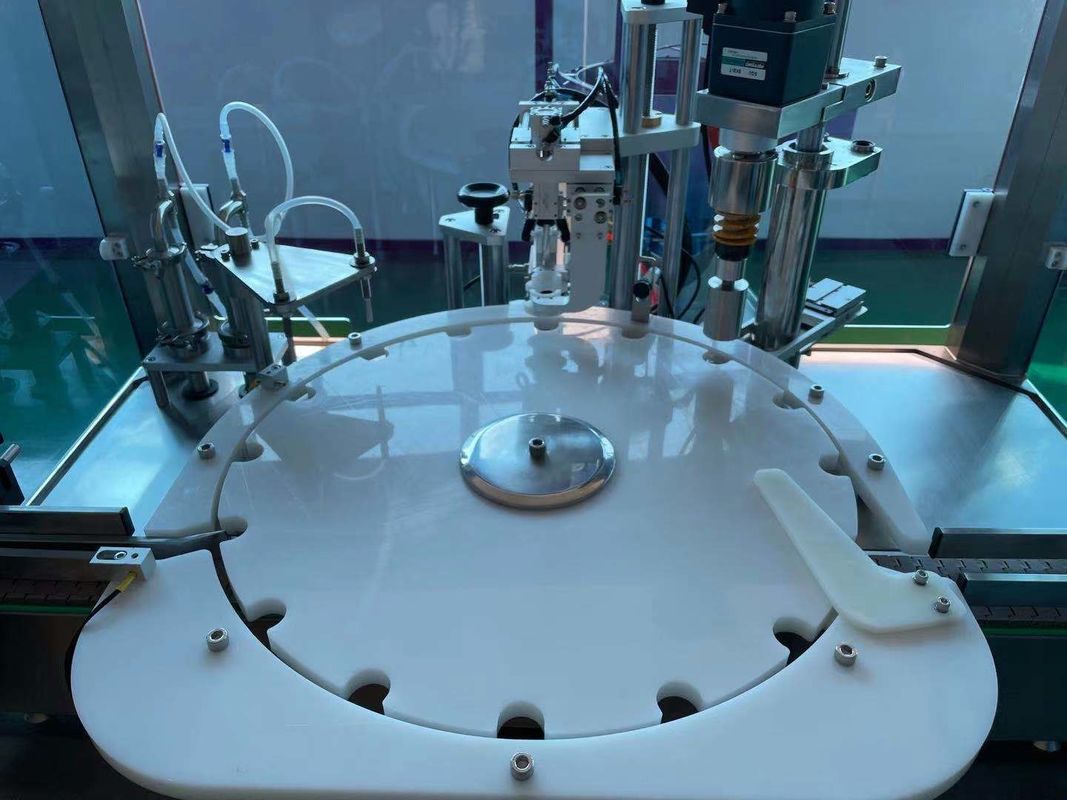

Glass Bottle Monoblock Filling And Capping Machine 99% Filling Accuracy 0

Glass Bottle Monoblock Filling And Capping Machine 99% Filling Accuracy 1

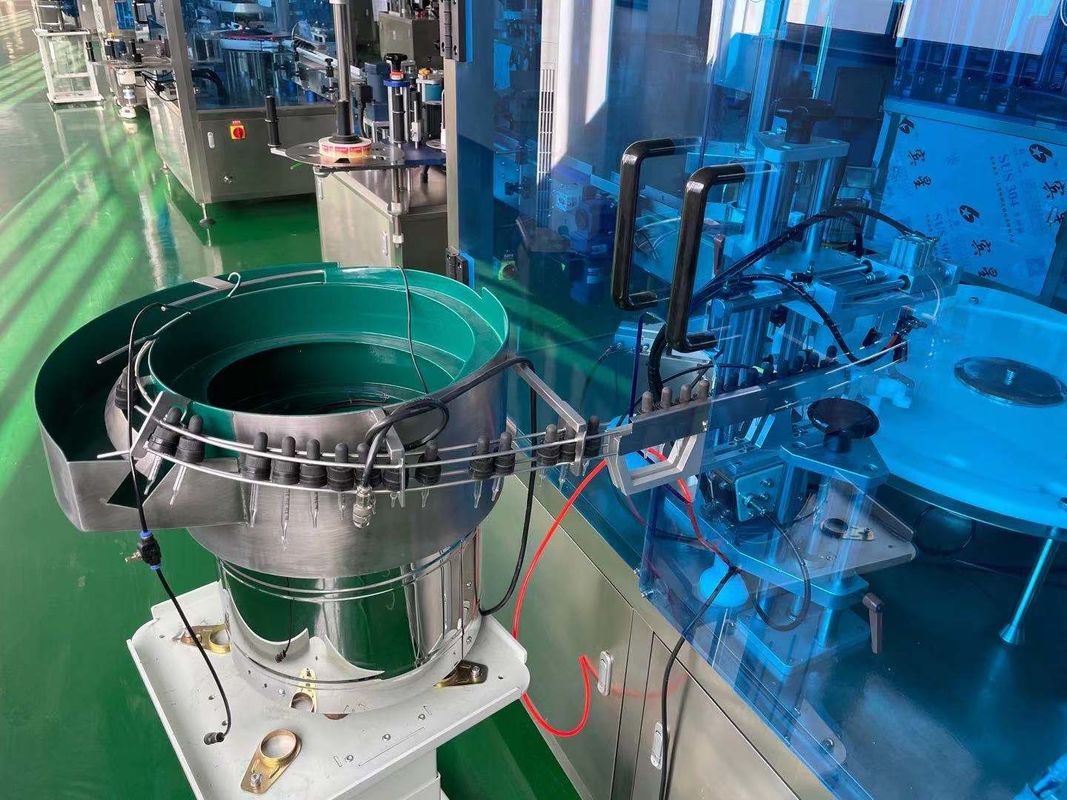

Cap feeder:

Glass Bottle Monoblock Filling And Capping Machine 99% Filling Accuracy 2



Samples display:



Glass Bottle Monoblock Filling And Capping Machine 99% Filling Accuracy 3Glass Bottle Monoblock Filling And Capping Machine 99% Filling Accuracy 4

Glass Bottle Monoblock Filling And Capping Machine 99% Filling Accuracy 5
