Semi Automatic Manual Tube Filling Sealing Machine 30BPH-1500BPH Capacity

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTDF-20
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Ultrasonic Soft Tube Sealing Machine Application: Cosmetics And Food, Chemical Etc
Capacity: 30-1500BPH Qualified Rate: >=99%
Machine Size: 660*550*400mm Warranty: 1 Year
Feature: Ultrasonic Sealing Voltage: 220V, 50/60Hz
Automatic Grade: Semi-Automatic Condition: New
Type: Tube Sealing Machine
High Light:

30BPH Manual Tube Filling Sealing Machine

,

220V Manual Tube Filling Sealing Machine


Product Description

Manual Ultrasonic Plastic Soft Tube Sealing Machine And Tube Filling Machine And Sealing Machine



Application:

  • This machine is designed specially for soft tube filling and sealing. (hand feed tubes)
  • It works for both liquid and sticky products like cream, honey, shampoo, coffee, tooth paste and so on
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on. As long as the materials is not very thick, same machine can work for both plastic and plastic aluminium composite tube.



Spec and Feature

  • Manual Operation and Cut
  • Ultrasonic Sealing
  • Positioning Device applied



Parameter:



Speed  30-1500 bph
Qualified accuracy >=99%
Ultrasonic power rate 1.0KW
Sealing length <70mm
Sealing width <5mm
Power supply 220V 50hz 1kw
Air supply 0.6 MPa
Machine size 660*550*400mm
Feature Ultrasonic sealing



Semi Automatic Manual Tube Filling Sealing Machine 30BPH-1500BPH Capacity 0





Semi Automatic Manual Tube Filling Sealing Machine 30BPH-1500BPH Capacity 1Semi Automatic Manual Tube Filling Sealing Machine 30BPH-1500BPH Capacity 2Semi Automatic Manual Tube Filling Sealing Machine 30BPH-1500BPH Capacity 3

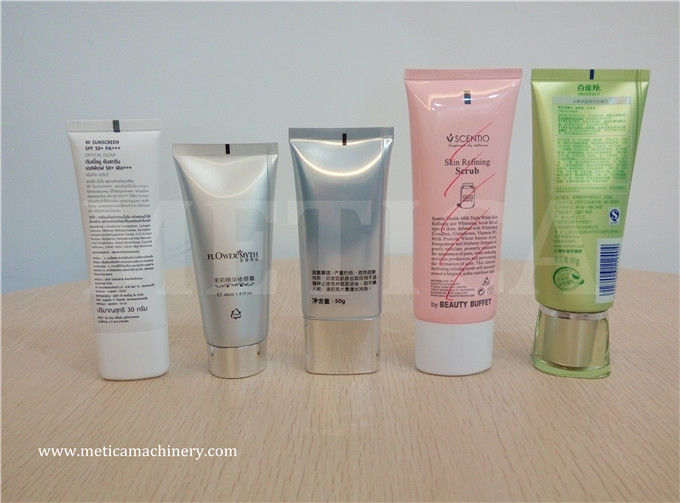

Samples display:

Semi Automatic Manual Tube Filling Sealing Machine 30BPH-1500BPH Capacity 4
