1500Bph Plastic Tube Filling And Sealing Machine 1.5KW For Hand Sanitizer

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-20
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Automatic Hand Sanitizer Gel Soft Tube Filling And Sealing Machine Capacity: 1500 BPH
Qualified Rate: >=99% Machine Size: 1300*950*1700 Mm
Warranty: One Year Feature: Ultrasonic Sealing, Load Tube Automatically
Hopper Volume: 40L Voltage: 220V, 50/60Hz
Automatic Grade: Fully Automatic Filling And Sealing Condition: New
Type: Filling Machine,ultrasonic Soft Tube Sealing Machine Application: Food,Medical,Chemical
High Light:

1500Bph Plastic Tube Filling And Sealing Machine

,

Plastic Tube Filling And Sealing Machine 1.5KW

,

220V plastic tube filling machine


Product Description

MTGF-20 Automatic Ultrasonic Hand Sanitizer Gel Plastic Tube Filling And Sealing Machine



Application:

  • This machine include filling, sealing and tail cutting function.
  • It works for both liquid and sticky products like cream, lotion and similar products.
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on.
  • As long as the materials is not very thick, same machine can work for both plastic and plastic aluminium composite

Feature:

  • It has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up and change filling volume.
  • The filling volume is adjustable on touch screen. It can fill 5-50ml, 50-300ml liquid or sticky products.
  • The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark
  • We can also make machine according to customers requirement.

Workflow:

  • 1. Put tube on the tube box by hand
  • 2. Automatic load tube
  • 3. Tube orientation mechanism to locate the tubes position
  • 4. Automatic filling into tube
  • 5. Automatic sealing by ultrasonic
  • 6. Automatic tube tail cutting
  • 7. Push out the tube



Parameter:



Speed  1500 bph
Filling volume 5-50ml or 50-300ml( can be customized)
Filling accuracy >99%
Tube applicable Plastic tube and aluminum plastic composite tube
Ultrasonic power rate 1.5KW
Power supply 220V 50hz 1.5kw
Air supply 0.6 MPa
Machine size 1300*950*1700mm
Feature PLC, touch screen, Fully automatic run

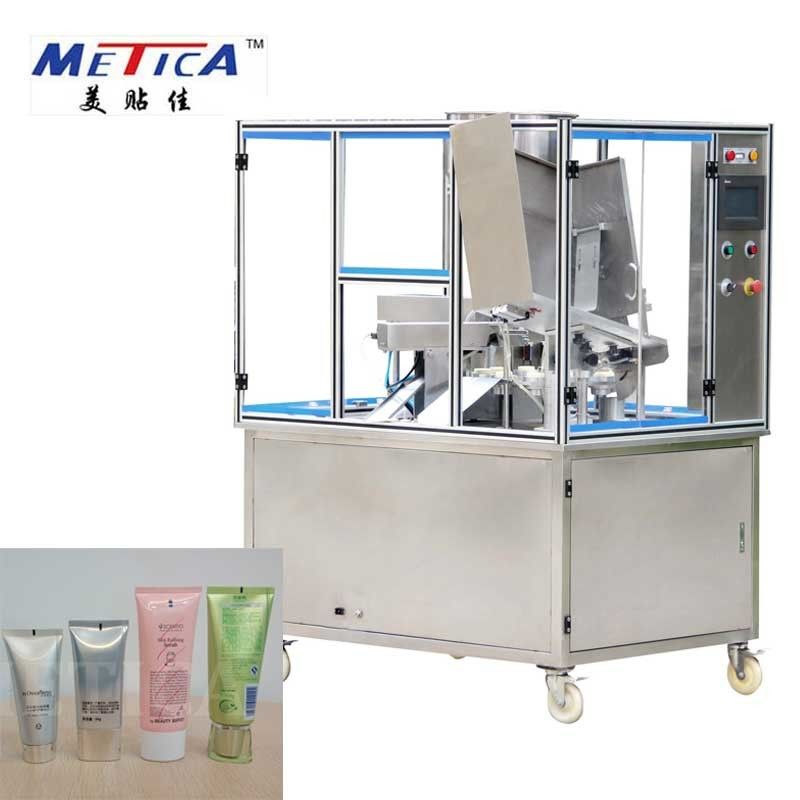

1500Bph Plastic Tube Filling And Sealing Machine 1.5KW For Hand Sanitizer 0

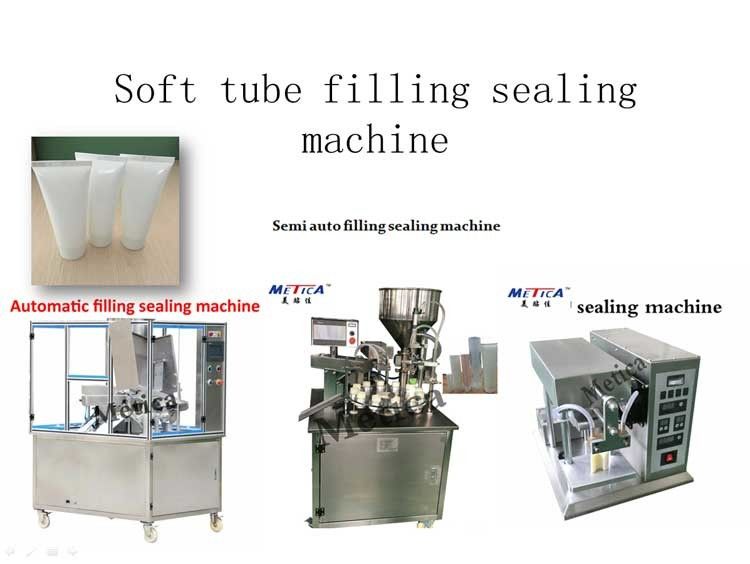

1500Bph Plastic Tube Filling And Sealing Machine 1.5KW For Hand Sanitizer 1

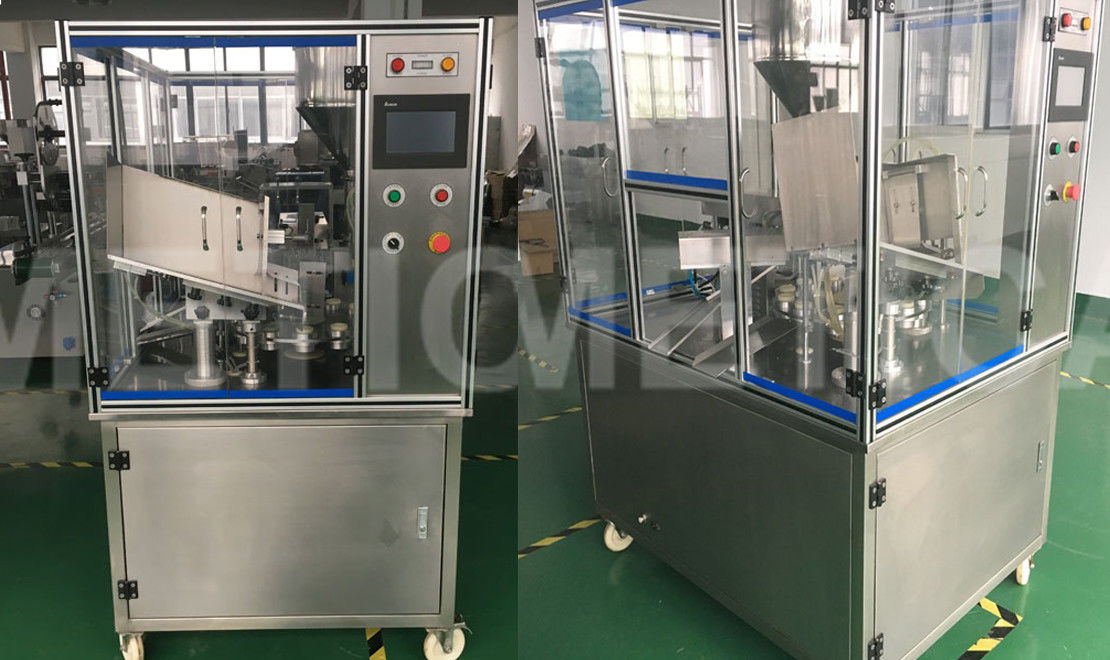

1500Bph Plastic Tube Filling And Sealing Machine 1.5KW For Hand Sanitizer 2

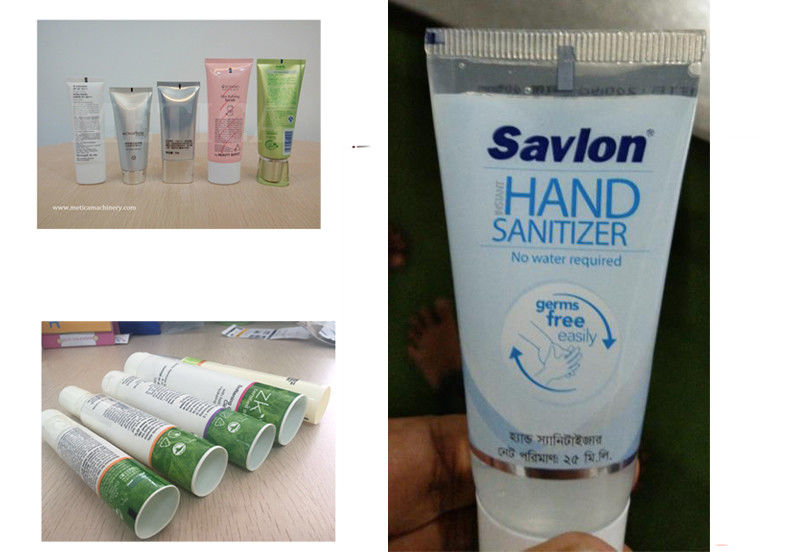

Samples display:

1500Bph Plastic Tube Filling And Sealing Machine 1.5KW For Hand Sanitizer 3
