Semi Auto Toothpaste Filling And Sealing Machine 25BPM 40L Hopper Volume

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-6A
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Toothpaste Tube Filling And Sealing Machine Capacity: 25BPM(related To Filling Volume)
Filling Qualified Rate: >=99% Machine Size: 800*900*1700 Mm
Warranty: 1 Year Feature: PLC And Touch Screen
Hopper Volume: 40L Packaging Material: Plastic Soft Tube, Aluminum Plastic Composite Tube Etc..
Driven Type: Electric Application: Food,Medical,Chemical,Cosmetic Etc..
Other Name: Ultrasonic Tube Filling Sealing Machine Sealing System: Ultrasonic Sealing
Type: Filling Machine, Tube Sealing Machine
High Light:

25BPM Toothpaste Filling And Sealing Machine

,

40L Toothpaste Filling And Sealing Machine


Product Description

Semi Automatic Ultrasonic Toothpaste Soft Tube Filling Machine And Sealing Machine



Application:

  • The machine good for toothpaste tube filling and sealing.
  • This machine is designed for plastic soft tube filling and sealing. (load tubes by hand), include tail cutting function as well.
  • It works for both liquid and sticky products like cream, honey, toothpaste, lotion etc..
  • It is applicable to all kinds of plastic and plastic composite soft tube, with coder for date and so on.
  • One machine can work for both plastic and plastic aluminium composite tube



Feature:

  • The filling volume is adjustable on touch screen. It can fill 5-50ml,30-300ml liquid or sticky products.
  • Ultrasonic sealing system, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark
  • it has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on touch screen, easy to set up.

Workflow:

  • 1. Load tube by hand
  • 2. Tube orientation mechanism to locate the tubes position
  • 3. Automatic filling into tube
  • 4. Automatic sealing by ultrasonic
  • 5. Automatic tube tail cutting
  • 6. Push out the tube



Parameter:



Speed  25 BPM(can be customized)
Filling volume 5-50 ml or 50-300ml(customizable)
Filling accuracy >=99%
Ultrasonic power rate 1.0KW
Power supply 220V 50/60hz 1kw
Air supply 0.6MPa
Machine size 800*900*1700mm
Feature PLC, Touch screen

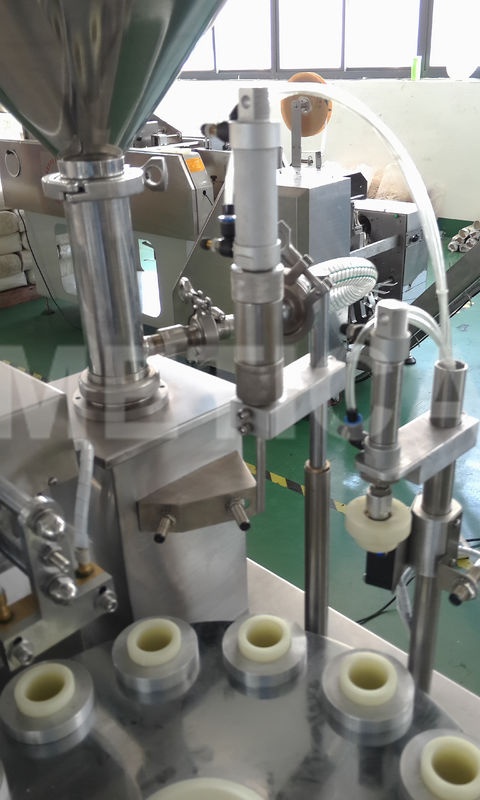

Semi Auto Toothpaste Filling And Sealing Machine 25BPM 40L Hopper Volume 0

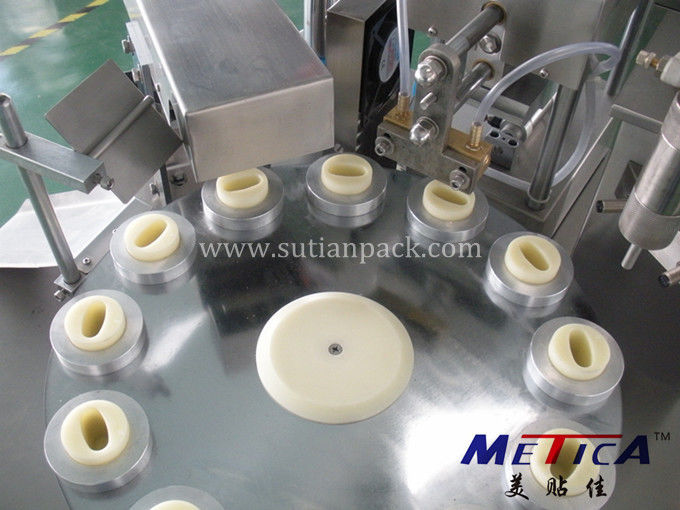

Semi Auto Toothpaste Filling And Sealing Machine 25BPM 40L Hopper Volume 1

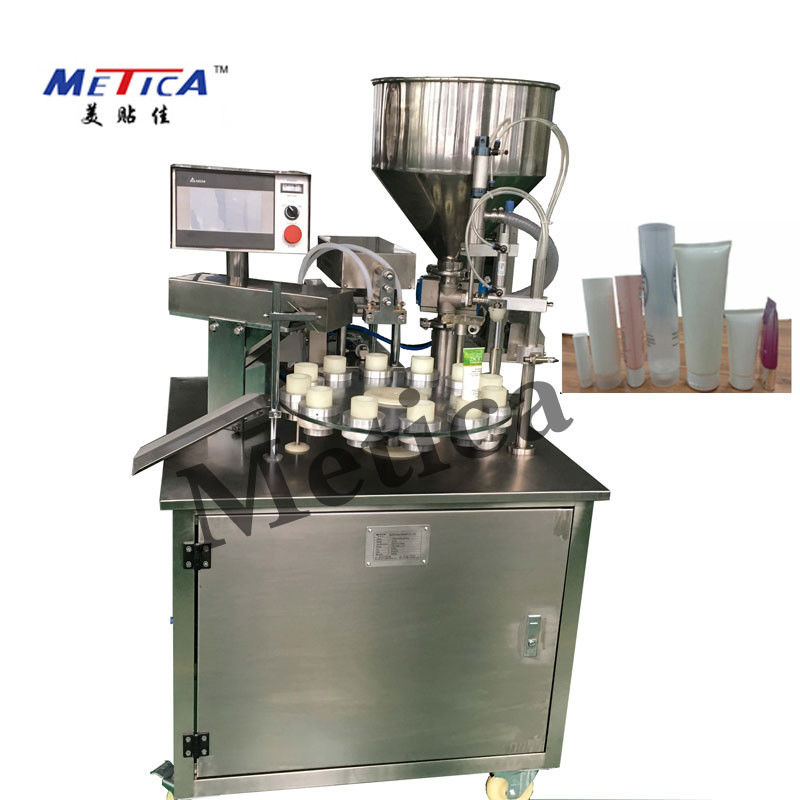

Semi Auto Toothpaste Filling And Sealing Machine 25BPM 40L Hopper Volume 2

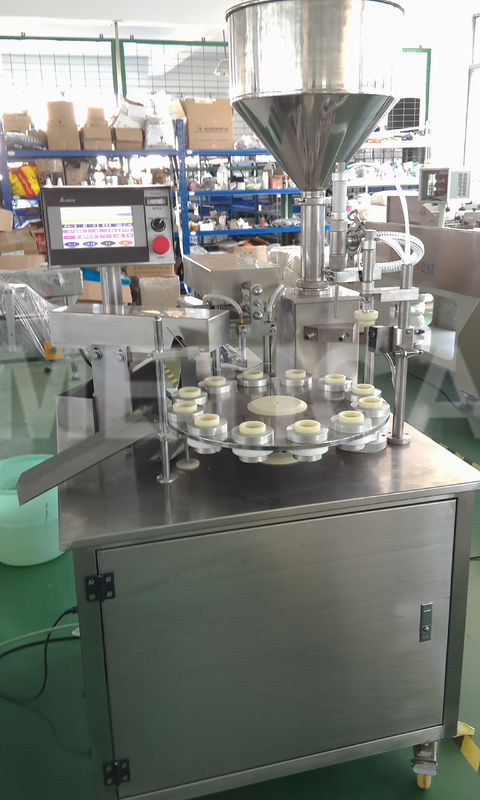

Semi Auto Toothpaste Filling And Sealing Machine 25BPM 40L Hopper Volume 3



Samples display:

Semi Auto Toothpaste Filling And Sealing Machine 25BPM 40L Hopper Volume 4
