25BPM 1kw Plastic Tube Filling Sealing Machine For Lotion And Hand Cream

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MT-6A
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Ultrasonic Lotion Tube Filling And Sealing Machine Capacity: 25BPM
Qualified Rate: >=99% Machine Size: 80*90*170 Cm
Warranty: One Year Feature: Ultrasonic Sealing, PLC And Touch Screen
Hopper Volume: 30 To 40L Packaging Material: Plastic Soft Tube, Aluminum Plastic Tube Etc..
Driven Type: Electric And Pneumatic Application: Food,Medical,Chemical,Cosmetic
Other Name: Ultrasonic Lotion And Hand Cream Filling Sealing Machine
High Light:

1kw Plastic Tube Filling Sealing Machine

,

25BPM Plastic Tube Filling Sealing Machine

,

METICA lotion filling machine


Product Description

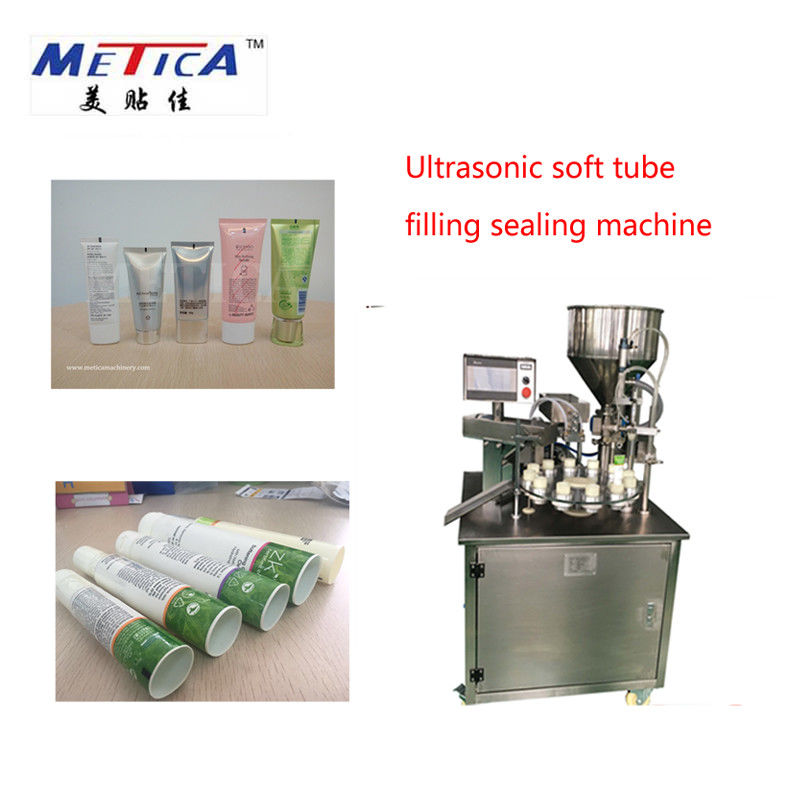

Ultrasonic Lotion And Hand Cream Soft Tube Filling Machine And Sealing Machine



Application:

  • The machine good for hand cream tube and lotion tube filling and sealing.
  • This machine is designed specially for plastic soft tube filling and sealing. (load tubes by hand), include tail cutting as well.
  • It works for both liquid and sticky products like cream, honey, toothpaste, lotion etc..
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on.
  • Same machine can work for both plastic and plastic aluminium composite



Feature:

  • The filling volume is adjustable on touch screen. It can fill 5-50ml,30-300ml liquid or sticky products.
  • Ultrasonic sealing system, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark
  • it has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up



Parameter:



Speed  25 BPM(can be customized)
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >=99%
Ultrasonic power rate 1.0KW
Power supply 220V 50hz 1kw
Air supply 0.4-0.6MPa
Machine size 800*900*1700mm
Feature PLC, Touch screen

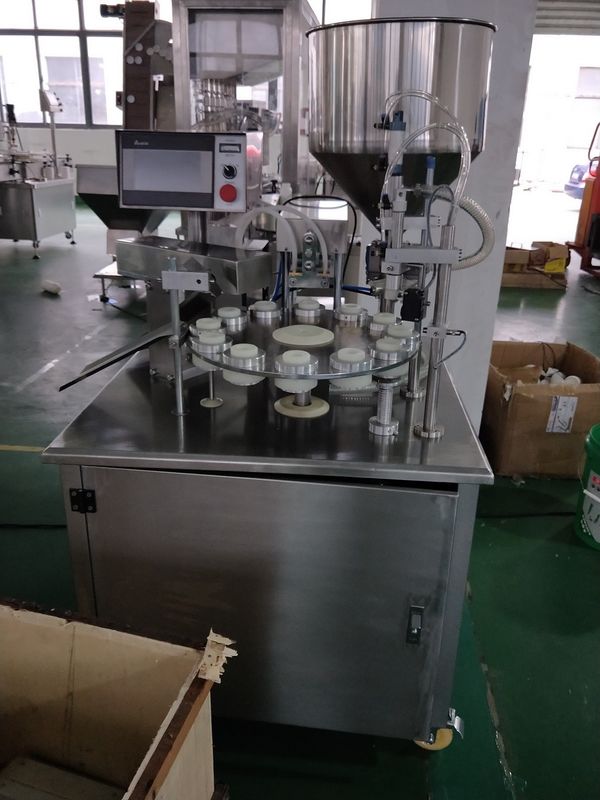

25BPM 1kw Plastic Tube Filling Sealing Machine For Lotion And Hand Cream 0

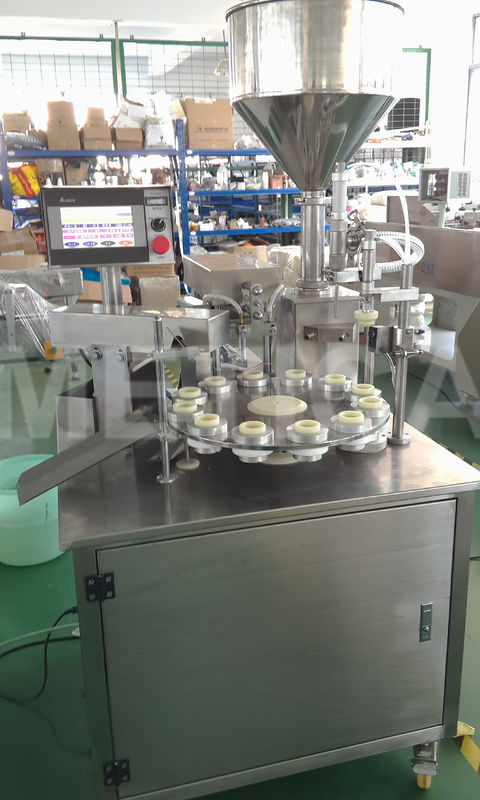

25BPM 1kw Plastic Tube Filling Sealing Machine For Lotion And Hand Cream 1

25BPM 1kw Plastic Tube Filling Sealing Machine For Lotion And Hand Cream 2

25BPM 1kw Plastic Tube Filling Sealing Machine For Lotion And Hand Cream 3

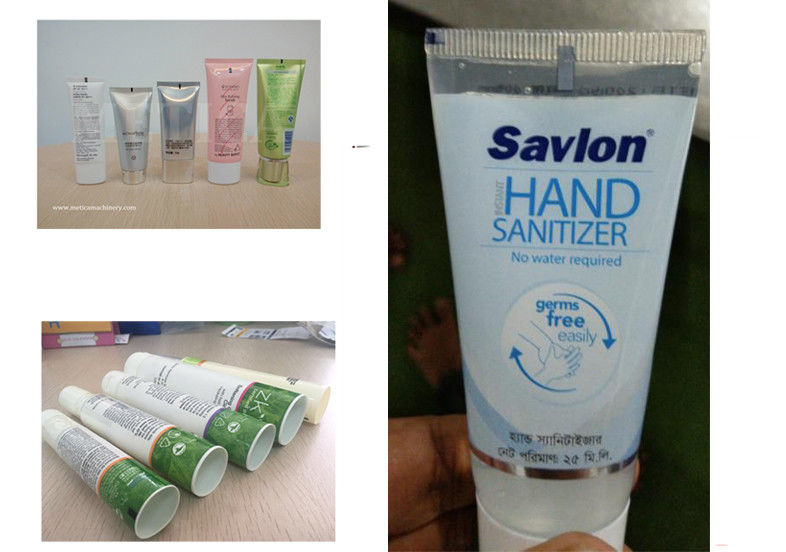

Samples display:

25BPM 1kw Plastic Tube Filling Sealing Machine For Lotion And Hand Cream 4
