products

PLC programmable Small Scale Bottle Filling Machine , Viscous Liquid Filling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFM-1100
Minimum Order Quantity: 1 SET
Price: USD 13000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Viscosity Liquid And Paste Filling Machine Application: For Filling Viscosity Liquid Into Bottle
Capacity: 300-800BPH(customizable) Filling Accuracy: >=99%
Machine Size: 240*135*173 Cm Warranty: One Year
Automatic Grade: Automatic Driven Type: Electric And Pneumatic
Packaging Type: Bottles,Cans,Barrel Etc... Function: For Filling Sauce, Juice, Oil Etc..
Voltage: 220V/50HZ
High Light:

Programmable Small Scale Bottle Filling Machine

,

800BPH Small Scale Bottle Filling Machine

,

Programmable Viscous Liquid Filling Machine


Product Description

Economical Pneumatic Type Automatic Viscosity Liquid And Paste Bottle Filling Machine



Application

  • Widely used in chemical, daily chemical, petro chemical, medicine, pesticide, food, beverage industries etc.
  • To fill liquid products, such as tomoato sauce, milk, edible oil,chemical liquid, pesticide liquid, drink etc.
  • Automatic type, can work with other machine, such as capping machine, labeling machine etc.



Spec and Feature

  • It is the economical filling machine. Save time, material cost and labor cost.
  • Simple structure; easy to move and operate, use and maintain.
  • The filling quantity is adjustable and more accurate.
  • It uses PLC programmable control. Complete pneumatic machine, much safer.
  • Also adopts piston controlling filling material flow to meet the request of kinds of measurement filling.
  • Structure compact, used for different bottles and changeable bottle.
  • We adjust the machine instead of replacement parts when we change bottle condition.
  • It adopts mainly machinery linear motion way for design.
  • It adopts Frequency controlled drive, and transportation exit is adjustable, so it could meet different packaging machinery pipeline request.



Paremeter

Speed  300-800bph (customizable)
Filling accuracy  >99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + air cylinder
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen

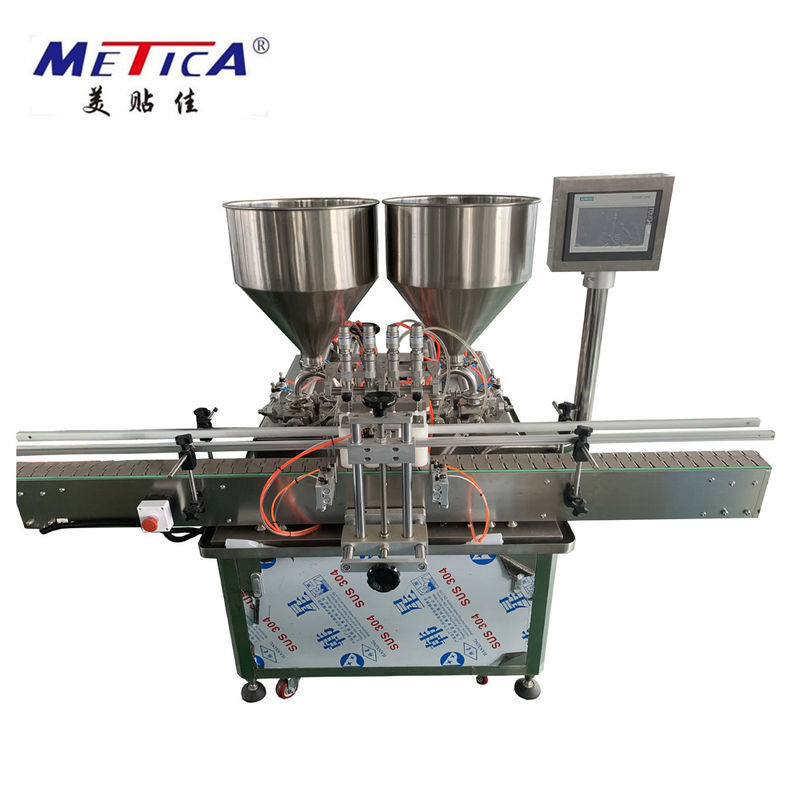

PLC programmable Small Scale Bottle Filling Machine , Viscous Liquid Filling Machine 0

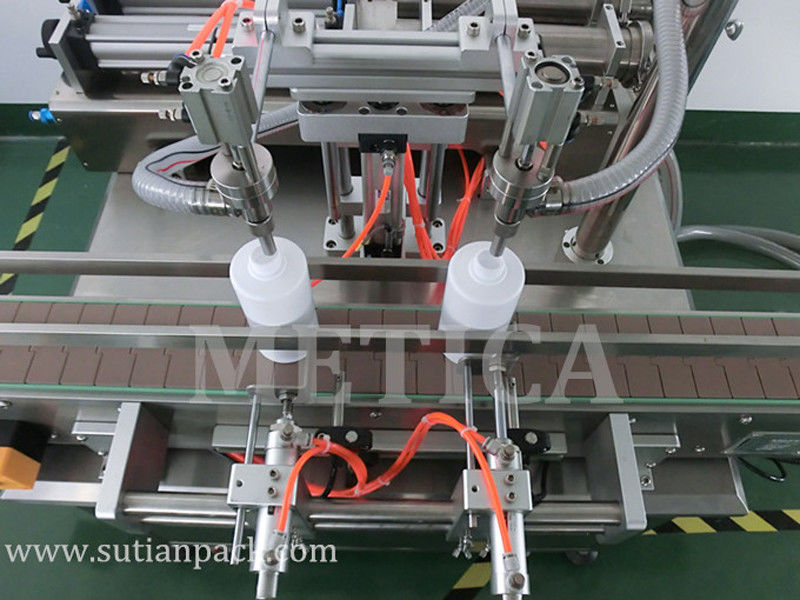

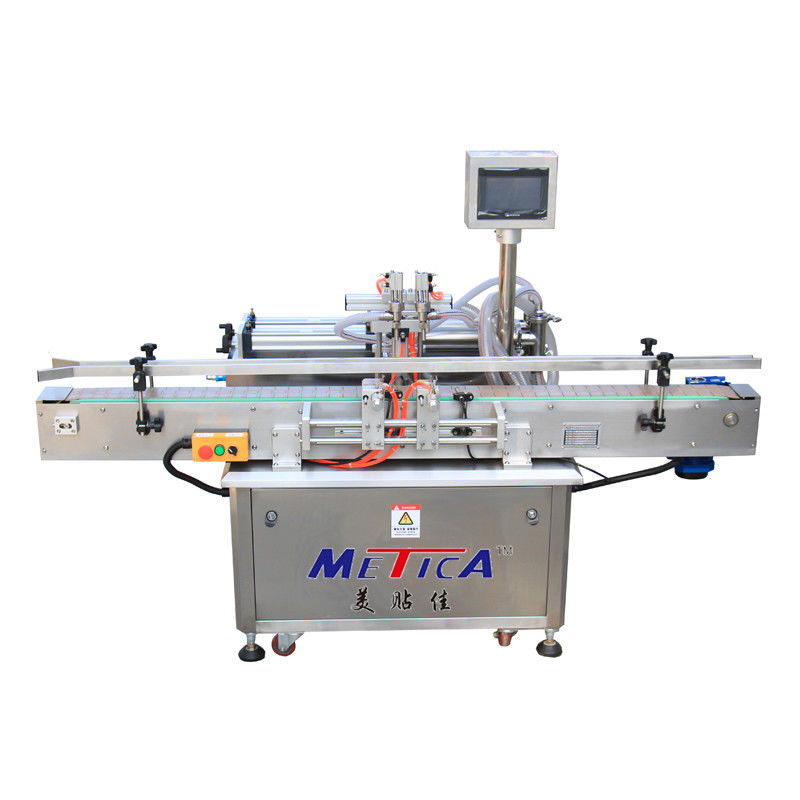

PLC programmable Small Scale Bottle Filling Machine , Viscous Liquid Filling Machine 1PLC programmable Small Scale Bottle Filling Machine , Viscous Liquid Filling Machine 2PLC programmable Small Scale Bottle Filling Machine , Viscous Liquid Filling Machine 3

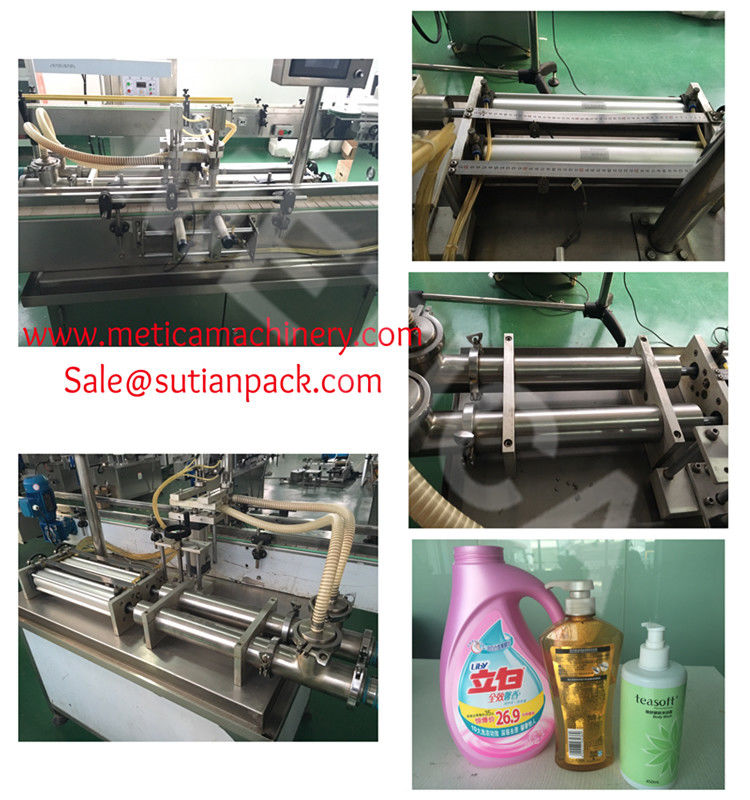

Samples display:



PLC programmable Small Scale Bottle Filling Machine , Viscous Liquid Filling Machine 4PLC programmable Small Scale Bottle Filling Machine , Viscous Liquid Filling Machine 5

PLC programmable Small Scale Bottle Filling Machine , Viscous Liquid Filling Machine 6
