Pepper Chili Powder Filling And Capping Machine 15BPM-60BPM Speed

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTPF-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Pepper / Chili Powder Filling Machine Application: For Food And Cosmetic Products
Capacity: 900-2000 BPH(customizable) Filling Accuracy: >=99%
Machine Size: 300*125*230 Cm Warranty: One Year
Automatic Grade: Automatic Filling Driven Type: Electric
Voltage: 220V, 50/60HZ Type: Filling Machine For Powder
High Light:

Powder Filling And Capping Machine 15BPM

,

METICA Powder Filling And Capping Machine


Product Description



Automatic Pepper / Chili Powder And Condiment Bottle Filling Machine

Application

  • This machine used for powder products filling into bottle. Such as spice, pepper and coco powder, also can be used for cosmetic.
  • The filling heads designed according to capacity and product feature. (Can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.



Spec and Feature

  • Adopts servo motor driven filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts one or two filling nozzles, the more filling nozzles, the higher capacity.
  • Filling volume is adjustable in certain filling volume scope.
  • Single nozzle is micro adjustable.
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join the production line.



Technical Parameters

Speed 15-60 BPM(can be customized)
Filling accuracy +/- 2%
Filling volume 10-500 g(can be customized)
Filling method servo motor driven
Power supply 220V 50/60 Hz, 3 kw
Air supply 0.8MPa
Machine size 300*125*230 cm
Bottle applicable A wide shape range
Application Powder products filling
Feature PLC, touch screen

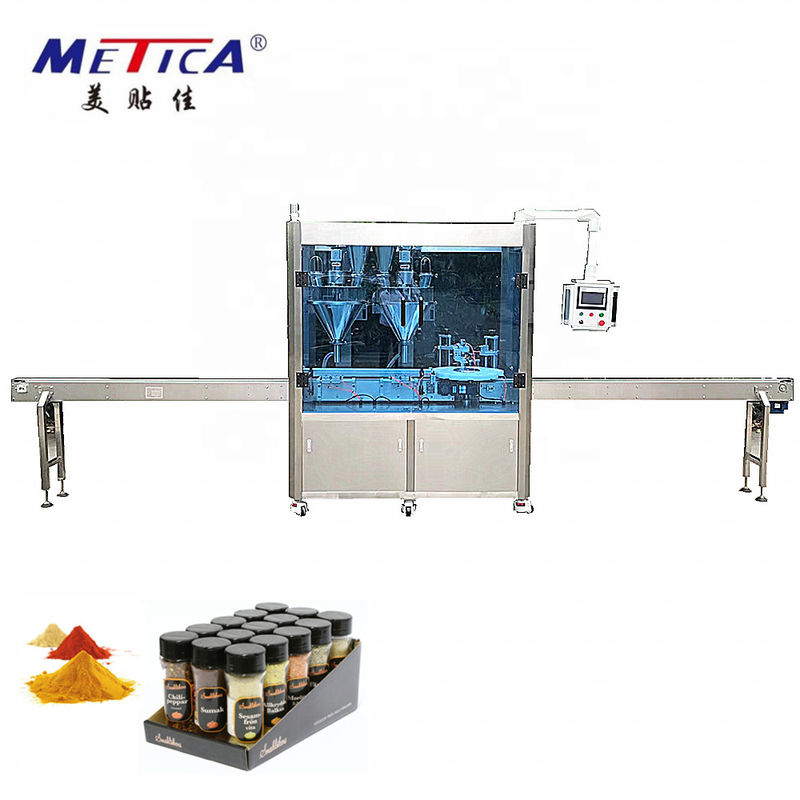

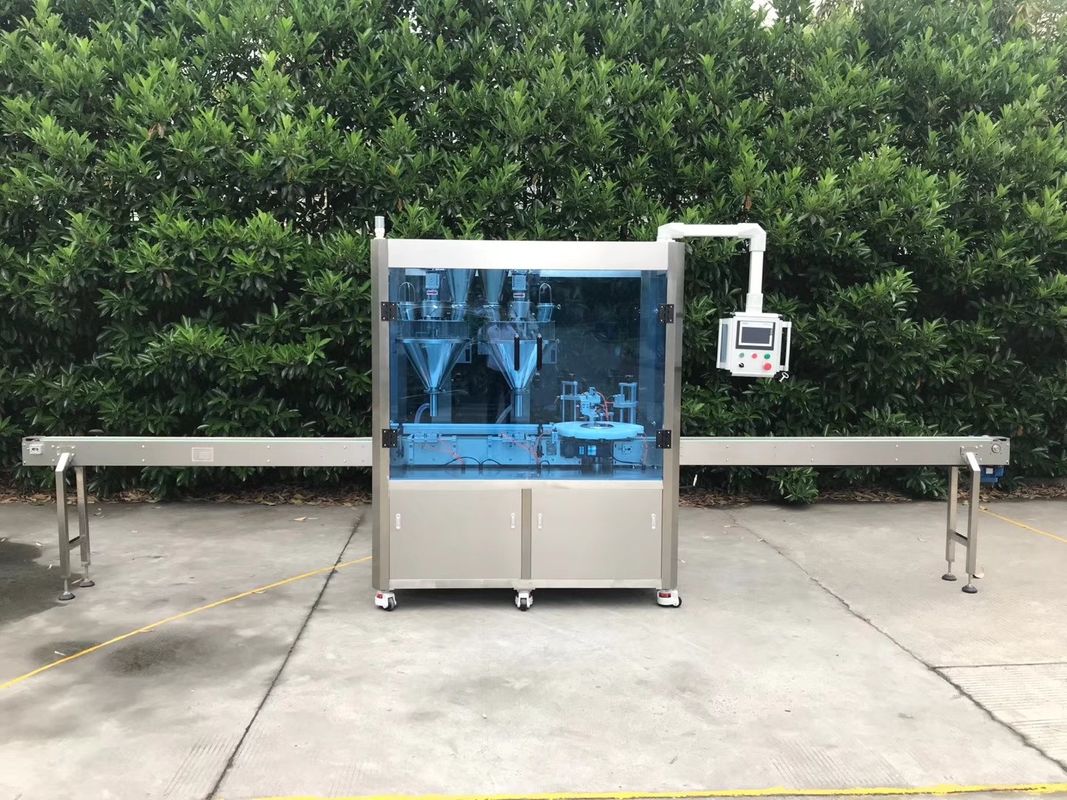

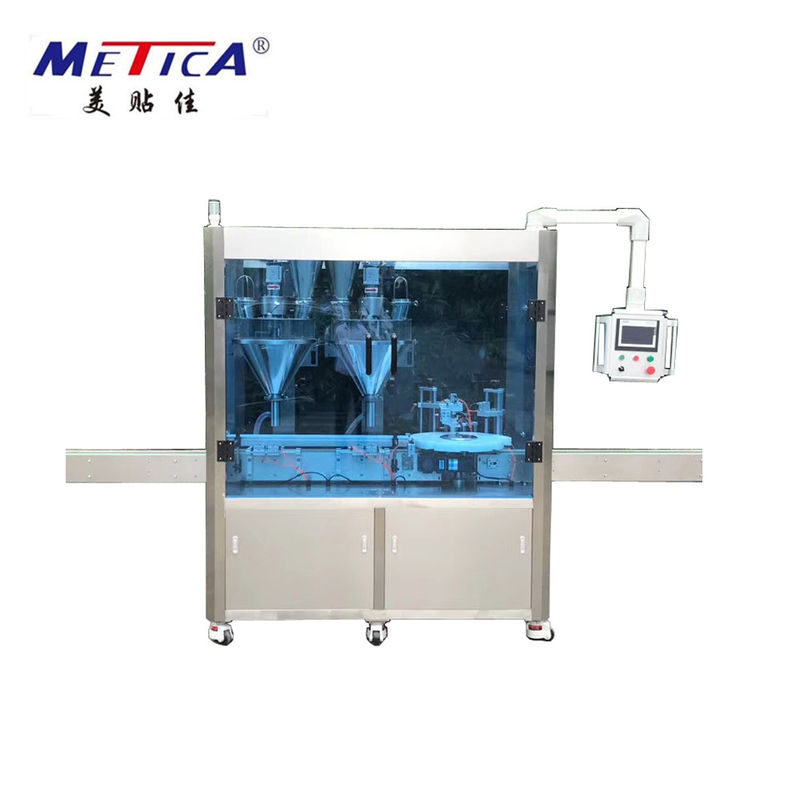

Pepper Chili Powder Filling And Capping Machine 15BPM-60BPM Speed 0Pepper Chili Powder Filling And Capping Machine 15BPM-60BPM Speed 1

Pepper Chili Powder Filling And Capping Machine 15BPM-60BPM Speed 2Pepper Chili Powder Filling And Capping Machine 15BPM-60BPM Speed 3





Pepper Chili Powder Filling And Capping Machine 15BPM-60BPM Speed 4Pepper Chili Powder Filling And Capping Machine 15BPM-60BPM Speed 5

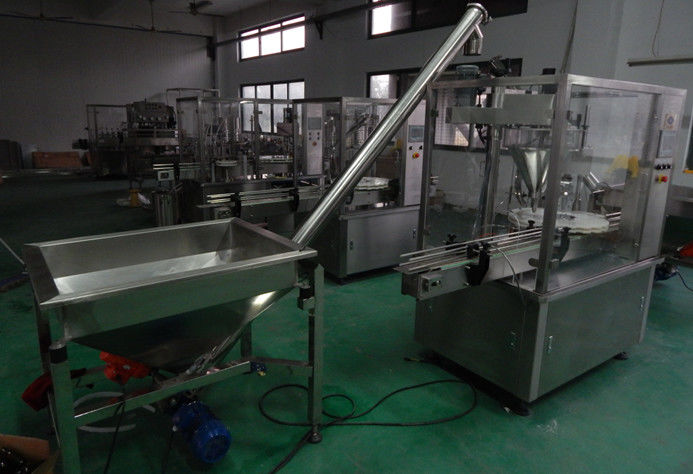

Project Examples

Pepper Chili Powder Filling And Capping Machine 15BPM-60BPM Speed 6
