6 Heads Small Bottle Washing Machine 220V Speed Adjustable For 10-100ml

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTAW-6
Minimum Order Quantity: 1 SET
Price: USD 7000-10000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Bottle Washing Machine By Air Capacity: 1200-3000BPH(customizable)
Qualified Rate: >99% Machine Size: 250*100*190cm
Warranty: 1 Year Driven Type: Electric And Pneumatic
Voltage: 220V/50HZ Condition: New
Type: Bottle Washing Machine By Air Packaging Type: Bottles,Cans, Jars
Application: Beverage,Food,Medical,Chemical,Commodity
High Light:

3000BPH Small Bottle Washing Machine

,

220V 100ml Small Bottle Washing Machine


Product Description

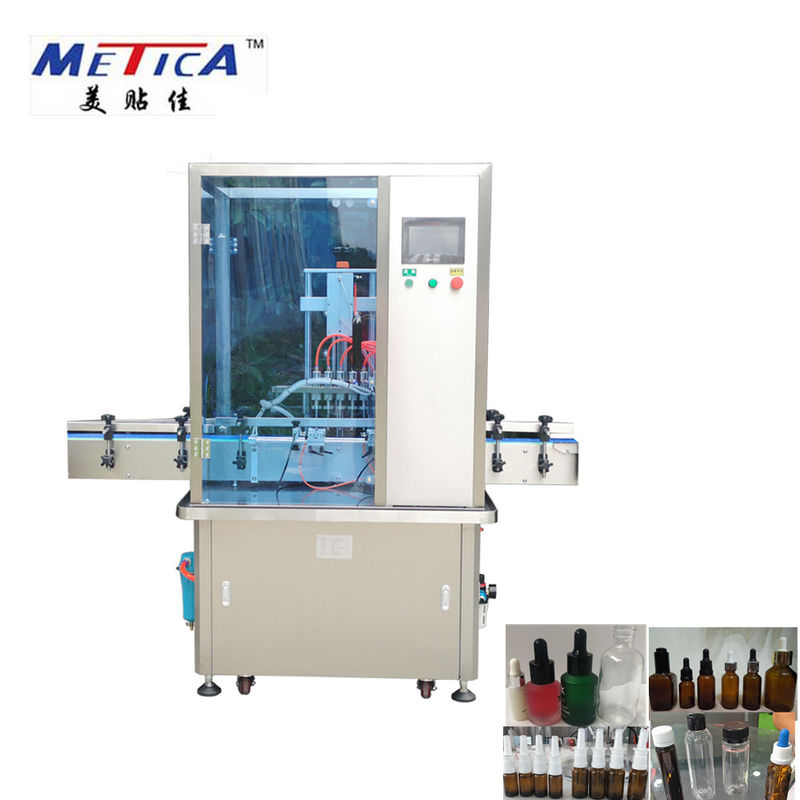

10-100ml Easy To Operate Automatic 6 Heads Glass/Plastic Jar/Bottle Washing Machine



Application:

  • This is a new designed linear type bottle washing machine,washing bottle by air.
  • The machine are widely used in the pharmaceutical and cosmetic industries to clean small particles inside the bottle.



Feature:



The machine is designed to wash bottles with air:

  • 4/6/8/10 nozzles
  • blowing and suction in one
  • height adjustable for bottles
  • Speed and timing adjustable
  • It needs to link to air compressor



Workflow:

  • Bottles conveyed to the washing nozzles position
  • Nozzles dive and seal the bottle first
  • Then blowing to wash
  • Suction the air out from bottles



Parameter:



Speed  1200-4000 bph (customizable)
Qualified rate >99%
Bottles applicable D: 10-100mm (can be customized)
Power supply 220V 50hz 2kw
Air supply 0.4-0.6MPa
Wshing nozzle 4/6/8 nozzles
Bottle applicable a wide shape range



6 Heads Small Bottle Washing Machine 220V Speed Adjustable For 10-100ml 0

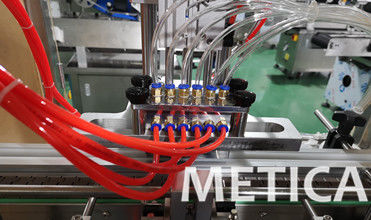

6 Heads Small Bottle Washing Machine 220V Speed Adjustable For 10-100ml 16 Heads Small Bottle Washing Machine 220V Speed Adjustable For 10-100ml 2

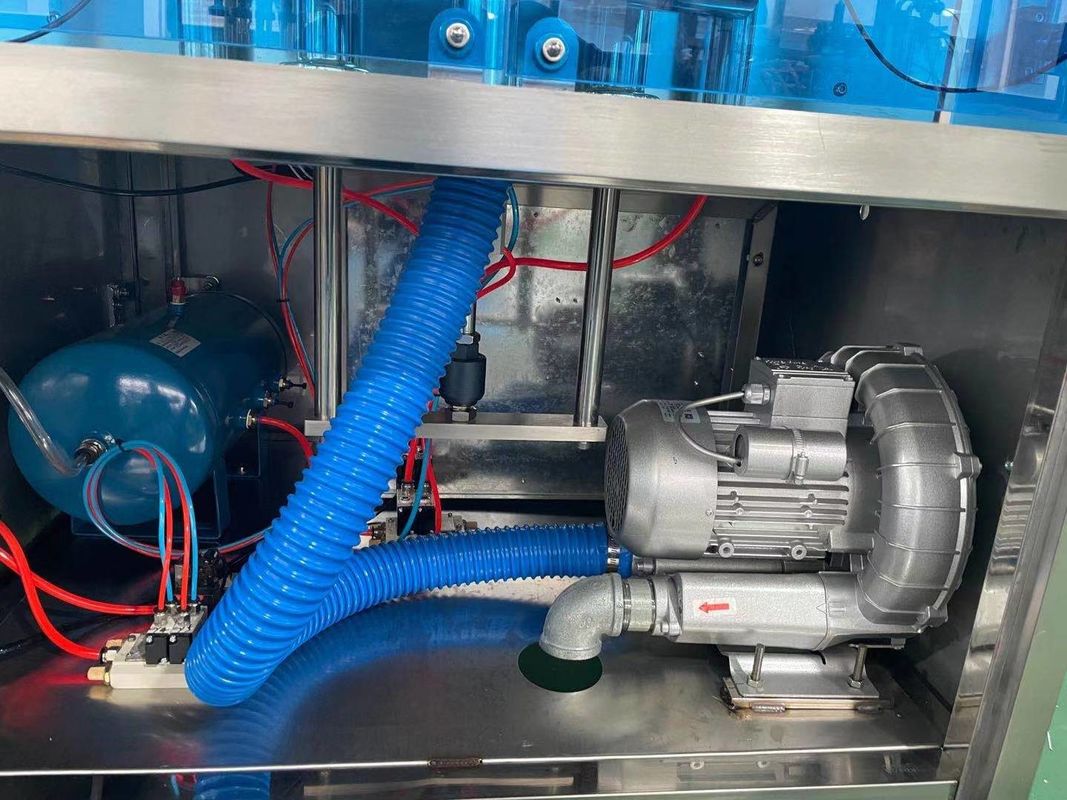

Fan for blowing and suction:

6 Heads Small Bottle Washing Machine 220V Speed Adjustable For 10-100ml 3

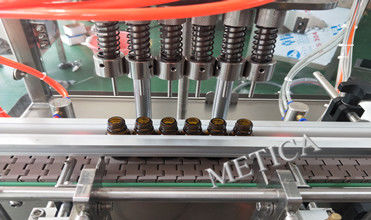

Samples display:

6 Heads Small Bottle Washing Machine 220V Speed Adjustable For 10-100ml 4
