Auto Cream Hand Sanitizer Bottling Machine 2000BPH-3000BPH Customized 500kg

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000-8
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Viscosity Liquid Filling Machine, Shampoo Filler Capacity: 2000-3000 BPH(customizable)
Filling Accuracy: >99% Machine Size: 3000*1400*2150 Mm
Warranty: 1 Year Automatic Grade: Automatic Filling
Type: Filling Machine For Bottle Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,small Square Bottle
Application: Beverage,Food,Chemical,Medical,Commodity Packaging Type: Bottles,Cans,Barrel And Similar Containers
Weight: 500kg
High Light:

Hand Sanitizer Bottling Machine 2000BPH

,

Hand Sanitizer Bottling Machine 500kg


Product Description

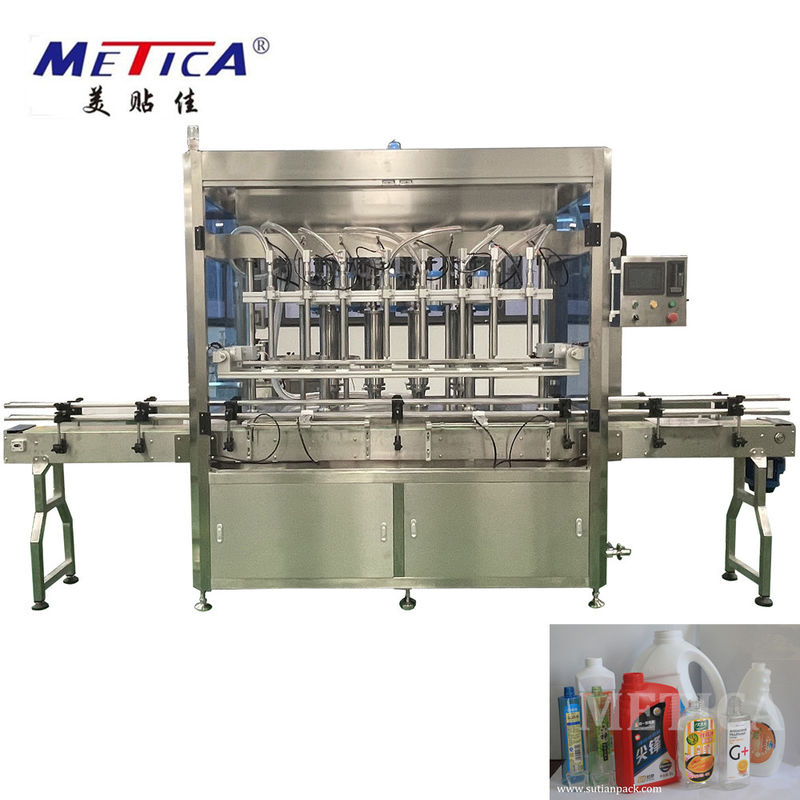

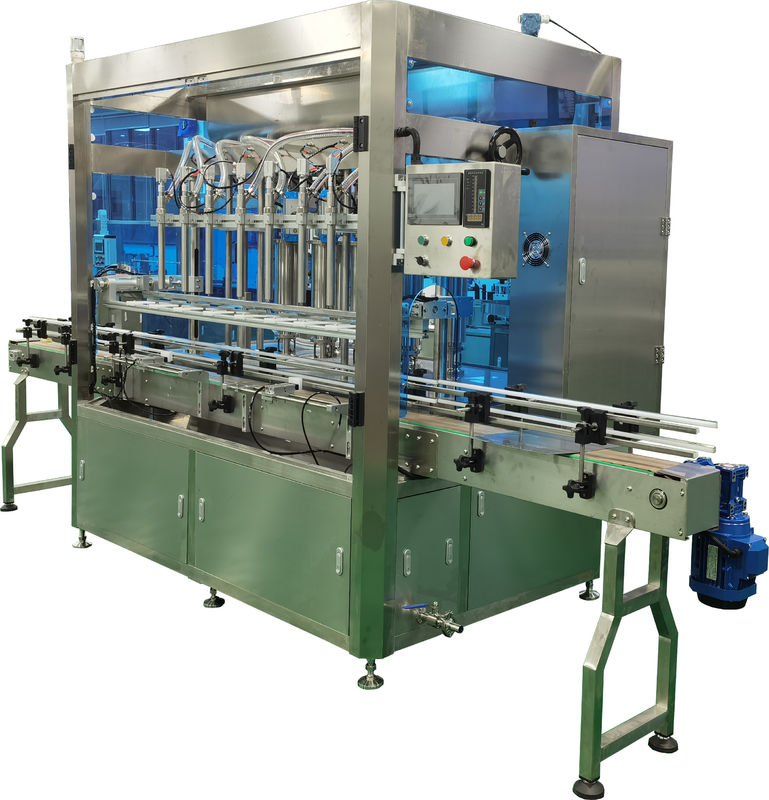

Automatic Cream / Shampoo / Hand Sanitizer Bottling Machine Bottle Filling Machine



Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as shampoo. hand sanitizer, lotion and cream products.
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.



Spec and Feature

  • Adopts piston+servo motor driven. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 4/6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line



Parameter:

Speed

2000-3000bph (customizable)
Filling accuracy  >99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(can be customized)
Filling method piston + servo motor driven method, diving
Power supply 220V 50hz 3kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter etc.

Auto Cream Hand Sanitizer Bottling Machine 2000BPH-3000BPH Customized 500kg 0

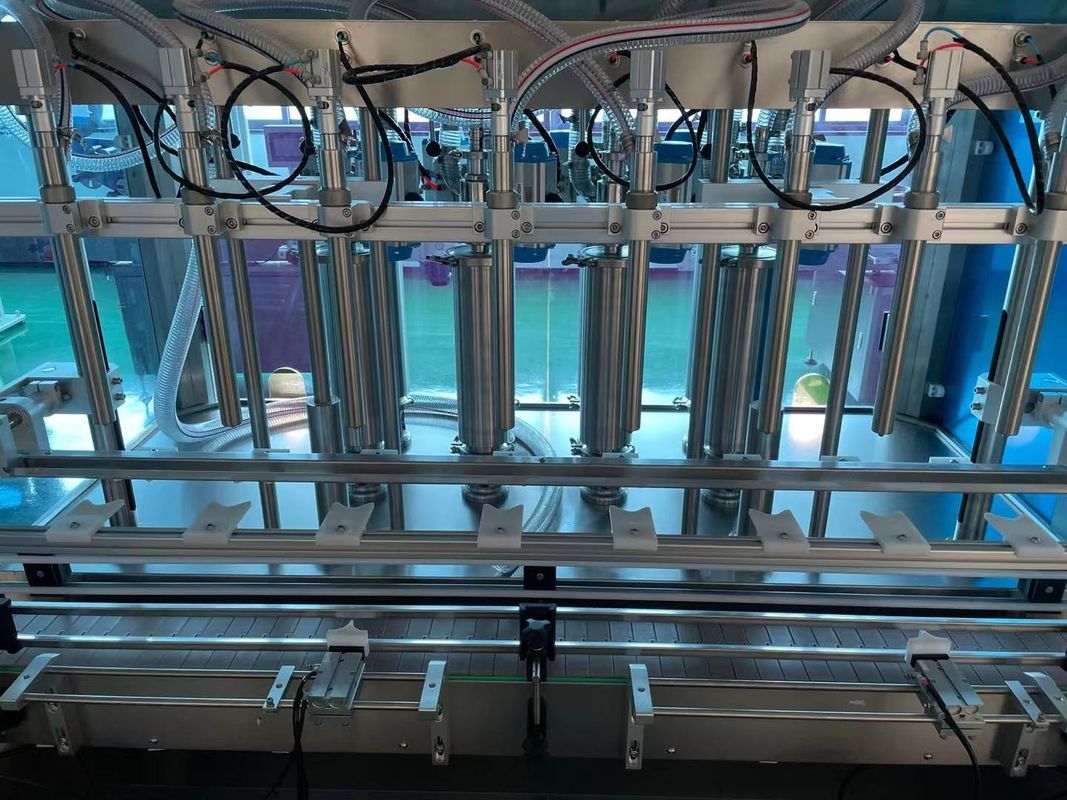

Filling nozzles:

Auto Cream Hand Sanitizer Bottling Machine 2000BPH-3000BPH Customized 500kg 1



Filling cylinder and tank:

Auto Cream Hand Sanitizer Bottling Machine 2000BPH-3000BPH Customized 500kg 2





Samples display:

Auto Cream Hand Sanitizer Bottling Machine 2000BPH-3000BPH Customized 500kg 3

Auto Cream Hand Sanitizer Bottling Machine 2000BPH-3000BPH Customized 500kg 4
