50hz 3kw Edible Oil Bottle Filling Machine Operation Stability Rustproof

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000-8
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Liquid Filling Machine, Sauce/jam/ Oil Bottling Machine Capacity: 2000-3000 BPH(customizable)
Filling Accuracy: >99% Machine Size: 3000*1400*2150 Mm
Warranty: 1 Year Automatic Grade: Automatic
Type: Filling Machine,General Bottle Type: Plastic Bottle And Glass Bottle,PET Plastic Bottle / Glass Bottle,small Square Bottle,flat Bottle,round Bottle
Application: Beverage,Food,Chemical,Medical,Commodity Packaging Type: Bottles,Cans,Barrel
High Light:

3kw Edible Oil Bottle Filling Machine

,

50hz Edible Oil Filling Machine

,

Edible Oil Bottle Filling Machine rustproof


Product Description

Automatic tomoato sauce / edible oil / jam Bottling Machine Bottle Filling Machine



Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as sauce/paste/jam/edible oil and viscosity liquid filling.
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.



Spec and Feature

  • Adopts piston+servo motor driven. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 4/6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line



Parameter:

Speed

2000-3000bph (customizable)
Filling accuracy  >99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + servo motor driven method
Power supply 220V 50hz 3kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter

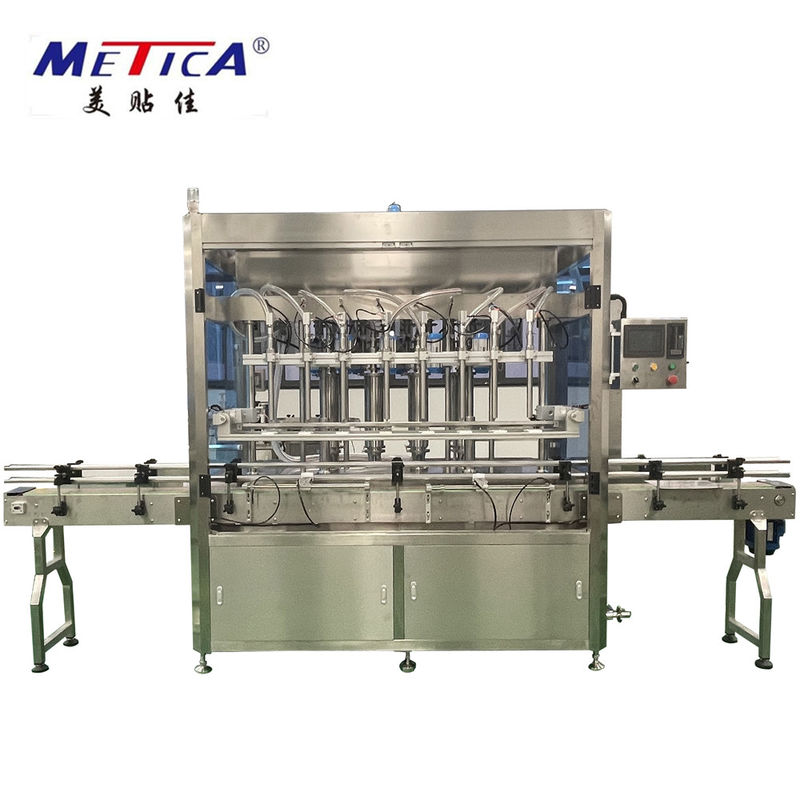

50hz 3kw Edible Oil Bottle Filling Machine Operation Stability Rustproof 0

Filling nozzles:

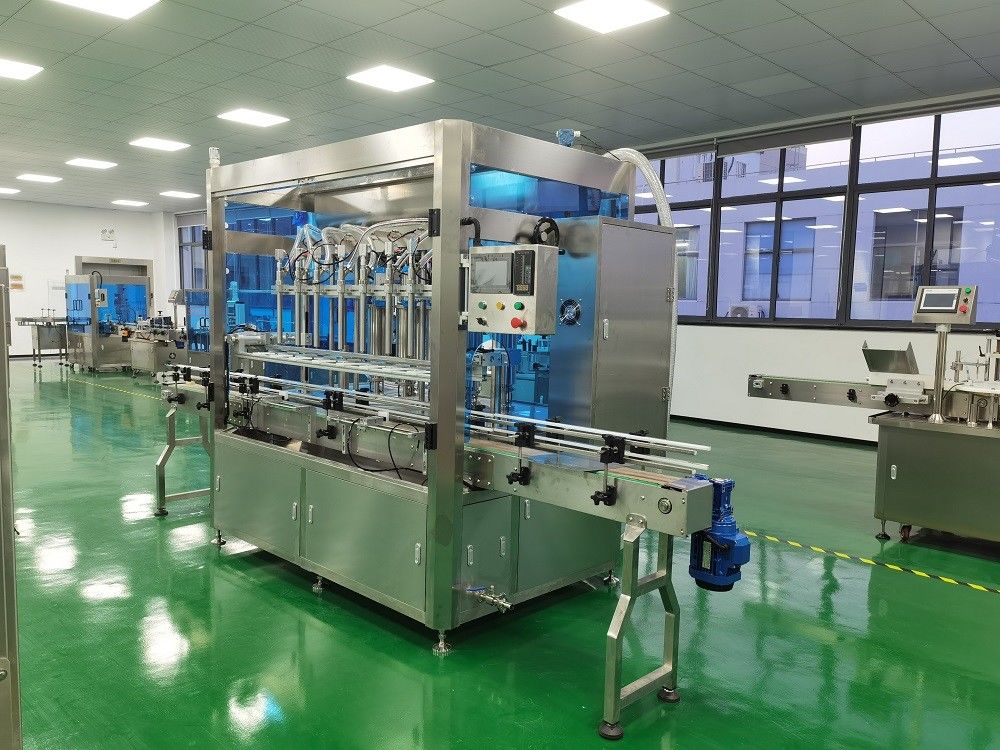

50hz 3kw Edible Oil Bottle Filling Machine Operation Stability Rustproof 1



Filling cylinder and tank:

50hz 3kw Edible Oil Bottle Filling Machine Operation Stability Rustproof 2





Samples display:

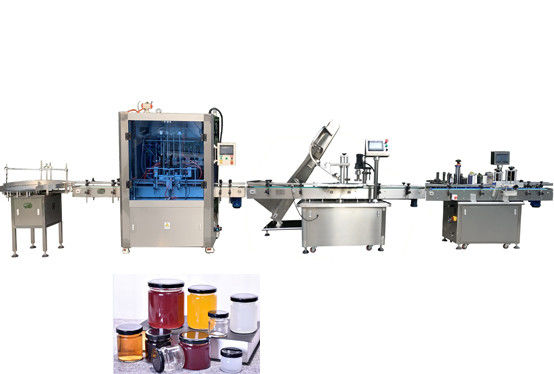

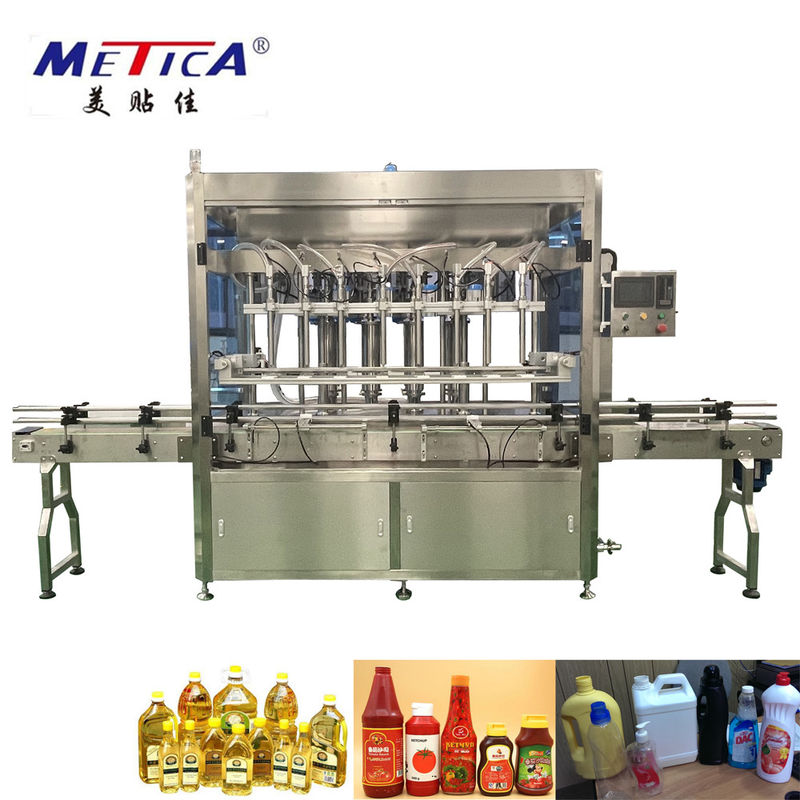

50hz 3kw Edible Oil Bottle Filling Machine Operation Stability Rustproof 350hz 3kw Edible Oil Bottle Filling Machine Operation Stability Rustproof 4

50hz 3kw Edible Oil Bottle Filling Machine Operation Stability Rustproof 5
