220V 50HZ Linear Bottle Washing Machine 1500BPH-3000BPH For Pharmaceutical

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTAW-6
Minimum Order Quantity: 1 SET
Price: USD 7000-10000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Air Washing Machine For Bottle Application: Suit For Washing Plastic Bottle And Glass Bottle
Capacity: 1500-3000 BPH(customizable) Qualified Rate: >99%
Machine Size: 2500*1000*1900mm Warranty: 1 Year
Driven Type: Electric Voltage: 220V/50HZ
Condition: New Type: Bottle Washing Machine
Packaging Type: Bottles,Cans
High Light:

50HZ Linear Bottle Washing Machine

,

220V Linear Bottle Washing Machine

,

Linear Washing Machine 1500BPH


Product Description

Automatic Linear Type Glass Bottle And Plastic Bottle Washing Machine



Application:

  • This is a new designed linear type bottle washing machine,washing bottle by air.
  • The machine are widely used in the pharmaceutical and cosmetic industries to clean small particles inside the bottle.



Feature:



The machine is designed to wash bottles with air:

  • 4/6/8/10 nozzles
  • blowing and suction in one
  • height adjustable for bottles
  • Speed and timing adjustable
  • It needs to link to air compressor



Workflow:

  • Bottles conveyed to the nozzles position
  • Nozzles dive and seal the bottle
  • Blowing to wash
  • Suction the air out from bottles



Parameter:



Speed  2000-4000 bph (customizable)
Qualified rate >99%
Bottles applicable D: 10-100mm (customizable)
Power supply 220V 50hz 1kw
Air supply 0.3-0.6MPa
Wshing nozzle 4/6/8 nozzles is optional
Bottle applicable a wide shape range

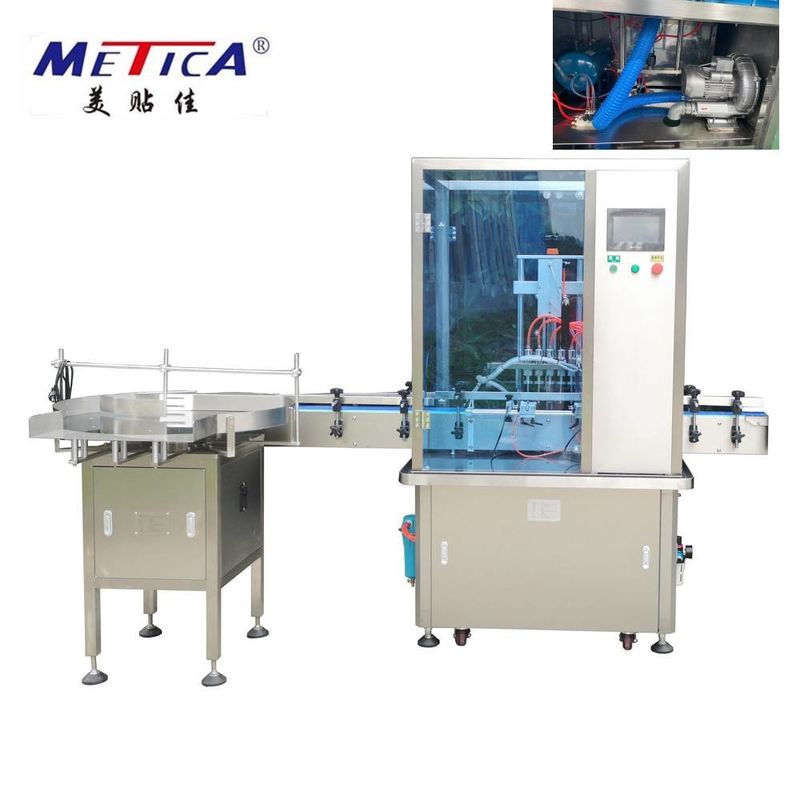

220V 50HZ Linear Bottle Washing Machine 1500BPH-3000BPH For Pharmaceutical 0

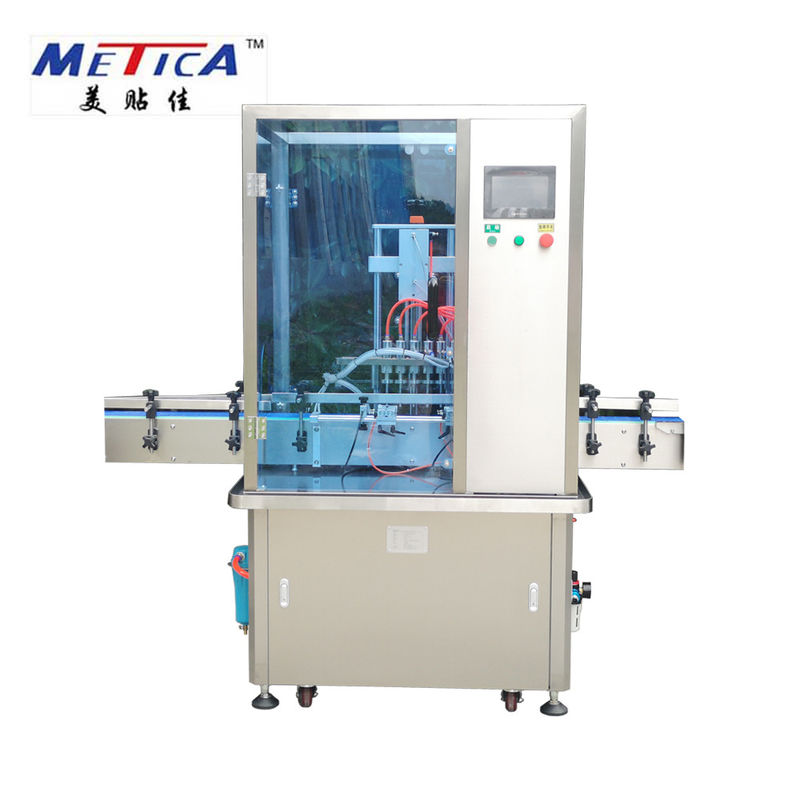

220V 50HZ Linear Bottle Washing Machine 1500BPH-3000BPH For Pharmaceutical 1220V 50HZ Linear Bottle Washing Machine 1500BPH-3000BPH For Pharmaceutical 2

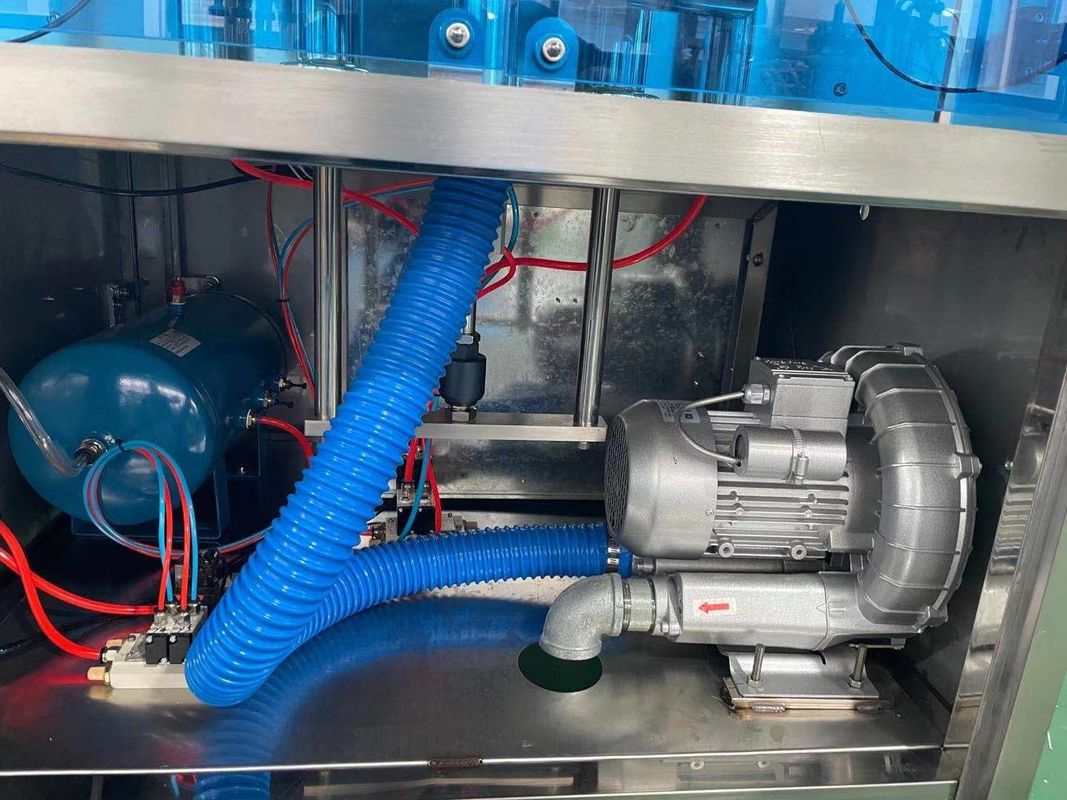

Fan for blowing and suction:

220V 50HZ Linear Bottle Washing Machine 1500BPH-3000BPH For Pharmaceutical 3





Samples display:

220V 50HZ Linear Bottle Washing Machine 1500BPH-3000BPH For Pharmaceutical 4
