Automatic Tube Filling And Sealing Machine 1.5KW 1500BPH Capacity

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-20
Minimum Order Quantity: 1 SET
Price: USD 7000-9000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 15-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Automatic Soft Tube Filling And Sealing Machine Application: Cosmetics And Food Industry
Capacity: 1500 BPH Qualified Rate: >99%
Machine Size: 130*95*170 Cm Warranty: 1 Year
Feature: Ultrasonic Sealing, Load Tube Automatically Hopper Volume: 40 L ( Can Be Customized)
Voltage: 220V, 50/60Hz Automatic Grade: Fully Automatic
Condition: New Type: Filling Machine,ultrasonic Soft Tube Sealing Machine
High Light:

Automatic Tube Filling And Sealing Machine 1.5KW

,

Tube Filling And Sealing Machine 1500BPH


Product Description

Full Automatic Cosmetics Soft Tube Filling Machine And Sealing Machine



Application:

  • This machine include filling, sealing and tail cutting function. Fully automatic run.
  • It works for both liquid and sticky products like cream, lotion and similar products.
  • It is applicable to all kinds of plastic and plastic combined soft tube, with coder for date and so on.
  • As long as the materials is not very thick, same machine can work for both plastic and plastic aluminium composite

Feature:

  • It has tube orientation mechanism to locate the tubes position
  • It is controlled by PLC and operate on color touch screen, easy to set up and change filling volume.
  • The filling volume is adjustable on touch screen. It can fill 5-50ml, 50-300ml liquid or sticky products.
  • The sealing way is ultrasonic, it works stable, and have advantages over heating sealing: low temperature, no impact from materials stuck to the tubes, reduce the empty space in the tube, sealing result is better.
  • It can print date or batch number as required. The number of letter can be set as required.
  • It has automatic tube positioning and identify function. It automatically identify front and back side by the color mark
  • We can also make machine according to customers requirement.



Parameter:



Speed  1500 bph
Filling volume 5-50ml or 50-300ml(customizable)
Filling accuracy >99%
Tube applicable Plastic tube and aluminum plastic tube
Ultrasonic power rate 1.5KW
Power supply 220V 50hz 1.5kw
Air supply 0.6 MPa
Machine size 1300*950*1700mm
Feature PLC, touch screen, Full automatic

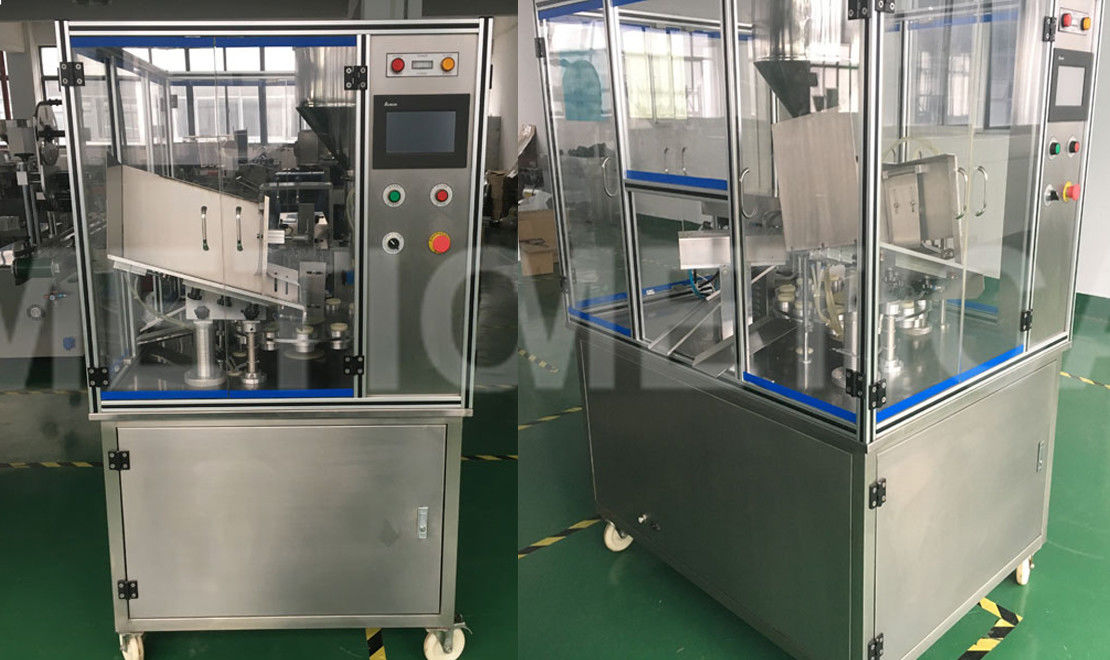

Automatic Tube Filling And Sealing Machine 1.5KW 1500BPH Capacity 0

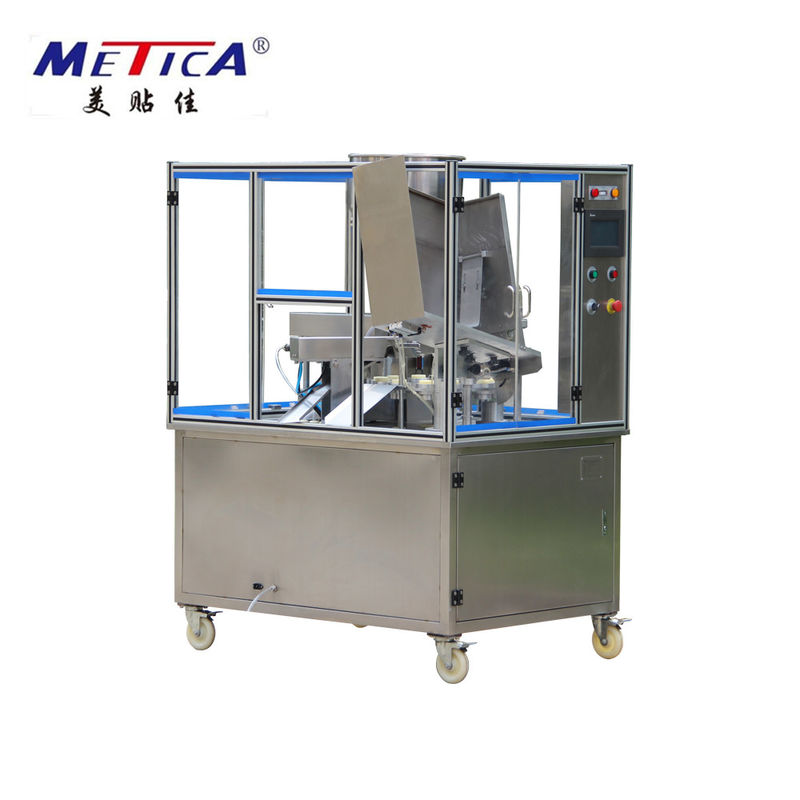

Automatic Tube Filling And Sealing Machine 1.5KW 1500BPH Capacity 1

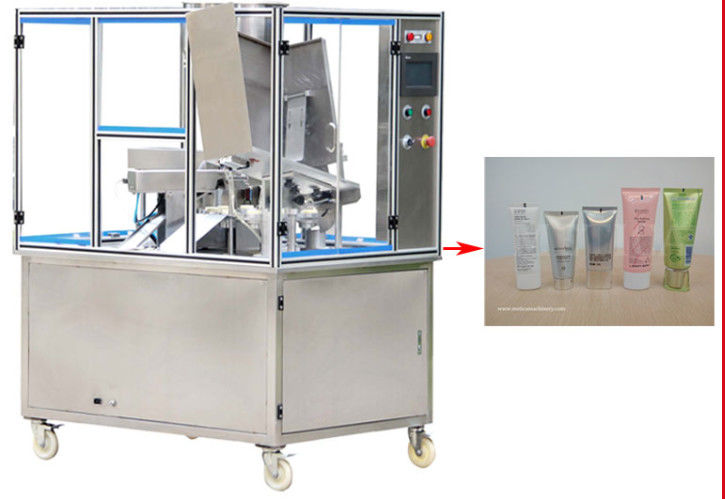

Automatic Tube Filling And Sealing Machine 1.5KW 1500BPH Capacity 2

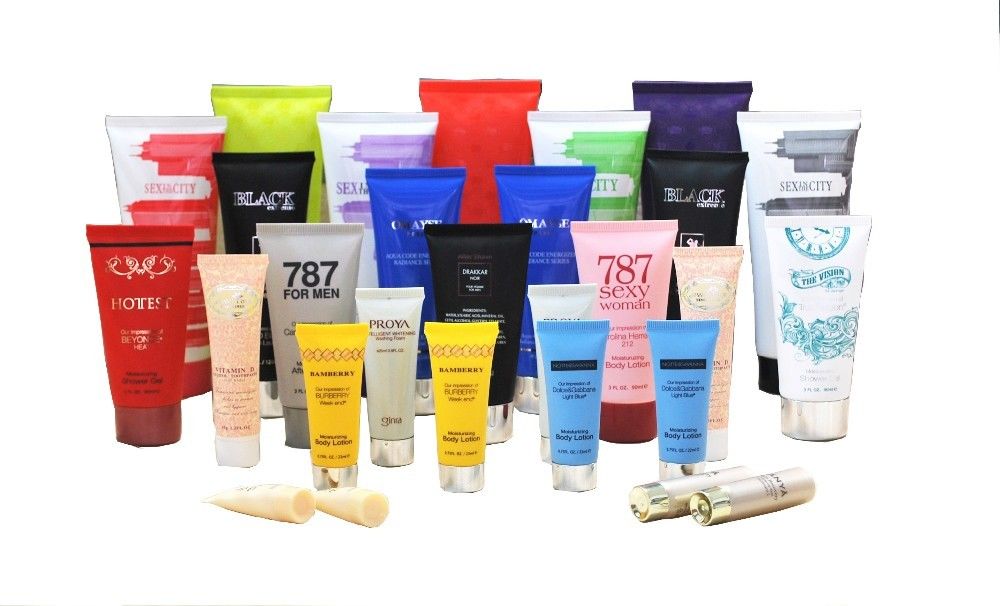

Samples display:

Automatic Tube Filling And Sealing Machine 1.5KW 1500BPH Capacity 3
