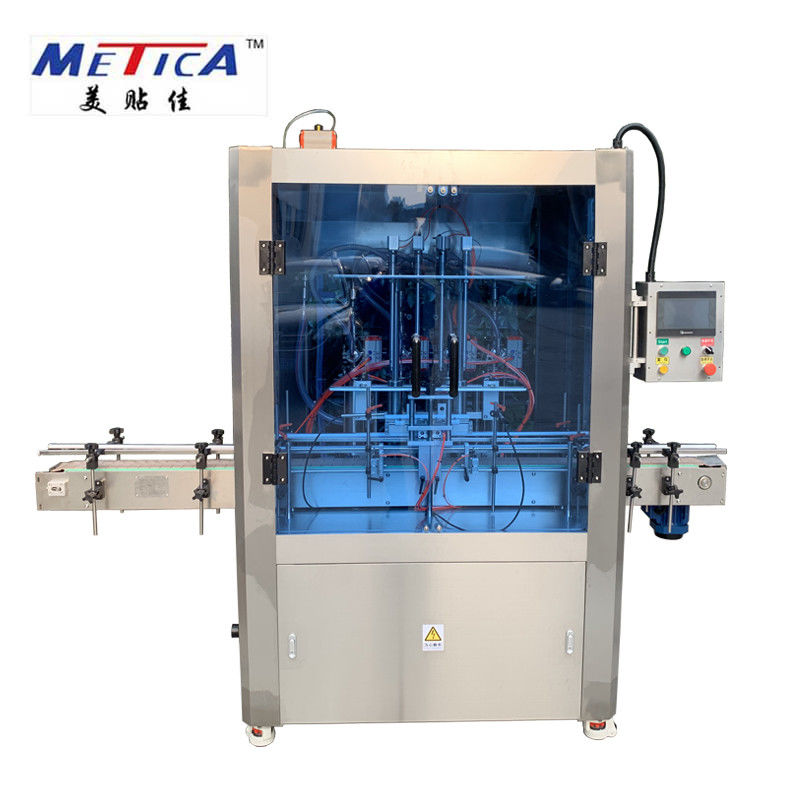

Automatic liquid and paste filling machine with servo motor system liquid filler

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTGF-1000
Minimum Order Quantity: 1 SET
Price: USD 13000-16000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Liquid Filling Machine Application: For Filling Liquid Or Viscosity Liquid Into Bottle
Capacity: 700-1500 BPH(customizable) Filling Accuracy: >99%
Machine Size: 2400*1350*1730 Mm Warranty: 1 Year

Product Description

Application

  • This machine used for all kinds of liquid and high viscosity liquid product,such as Disinfectant and Medical Alcohol, sauce / paste / jam / edible oil and viscosity liquid filling.
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.
  • The filling heads designed for many heads (can be designed depend on the product capacity), will not be break the machine when the speed is high or act quickly.

Spec and Feature

  • Adopts piston + servo motor driven. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts four filling nozzles, can change to 6/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • Diving filling method is available
  • High filling speed and filling precision, no bubble,stable
  • Filling volume is adjustable in certain filling volume scope
  • Single nozzle is micro adjustable
  • International branded electronic parts applied, good performance
  • Compact models, operation stability, simple operation, easy cleaning
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line



Speed  700-1500bph (customizable)
Filling accuracy  >99%
Filling volume 100-1000ml, 200-2000ml, … 500-5000ml(customizable)
Filling method piston + servo motor driven
Power supply 220V 50hz 2kw
Bottles applicable a wide shape range

Application

Liquid or viscosity products
Feature PLC, touch screen, tank, level meter







Automatic liquid and paste filling machine with servo motor system liquid filler 0



Automatic liquid and paste filling machine with servo motor system liquid filler 1

Automatic liquid and paste filling machine with servo motor system liquid filler 2

Automatic liquid and paste filling machine with servo motor system liquid filler 3

Automatic liquid and paste filling machine with servo motor system liquid filler 4





Samples display:



Automatic liquid and paste filling machine with servo motor system liquid filler 5Automatic liquid and paste filling machine with servo motor system liquid filler 6

Automatic liquid and paste filling machine with servo motor system liquid filler 7
