Name: 2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles
Brand: Metica Machinery (Shanghai) Co., Ltd.
SKU: MTFC-1000
Price: 15,000.00 USD
Availability: InStock

Home > Products > Monoblock Filling And Capping Machine >

2000BPH 50-500ml PLC Control Monoblock Filling Capping Machine for Roll-on Bottles

500ml Deodorant Liquid Filling Capping Machine

PLC Automatic Filling Capping Machine

2000BPH Monoblock Filling And Capping Machine

Place of Origin:

Shanghai

Brand Name:

METICA

Certification:

Model Number:

MTFC-1000

Request A Quote

Product Details

Name:

Roll-on Bottle Filling Capping Machine

Application:

Chemical,Medical,Commodity

Capacity:

1000-2000BPH

Filling Accuracy:

>=99%

Machine Size:

2500*1200*1650 Mm

Warranty:

One Year

Type:

Filling Machine, Capping Machine In One

Automatic Grade:

Automatic

Filling Volume:

50-500ml

Weight:

400kg

Bottle Type:

Plastic Bottle And Glass Bottle

Function:

Roll-on Bottle Filling And Capping In One

Highlight:

500ml Deodorant Liquid Filling Capping Machine

PLC Automatic Filling Capping Machine

2000BPH Monoblock Filling And Capping Machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

USD 10000-20000/SET

Packaging Details

Fumigation-free wooden boxes that meet international standards

Delivery Time

25-30 days

Payment Terms

L/C,T/T

Supply Ability

100 SETS PER MONTH

PLC Auto Monoblock Filling And Capping Machine Dropper Bottle Filling Machine

Get Best Price

Video

3KW Fully Automatic Monoblock Filling Machine With Screw Capping For Syrup

Get Best Price

Video

10-100ml Cream Filling And Capping Machine High Intellectualization For Cosmetics

Get Best Price

Video

10 - 100ml Cosmetics Cream Bottling And Capping Machine High Intellectualization

Get Best Price

Contact Now

Product Description

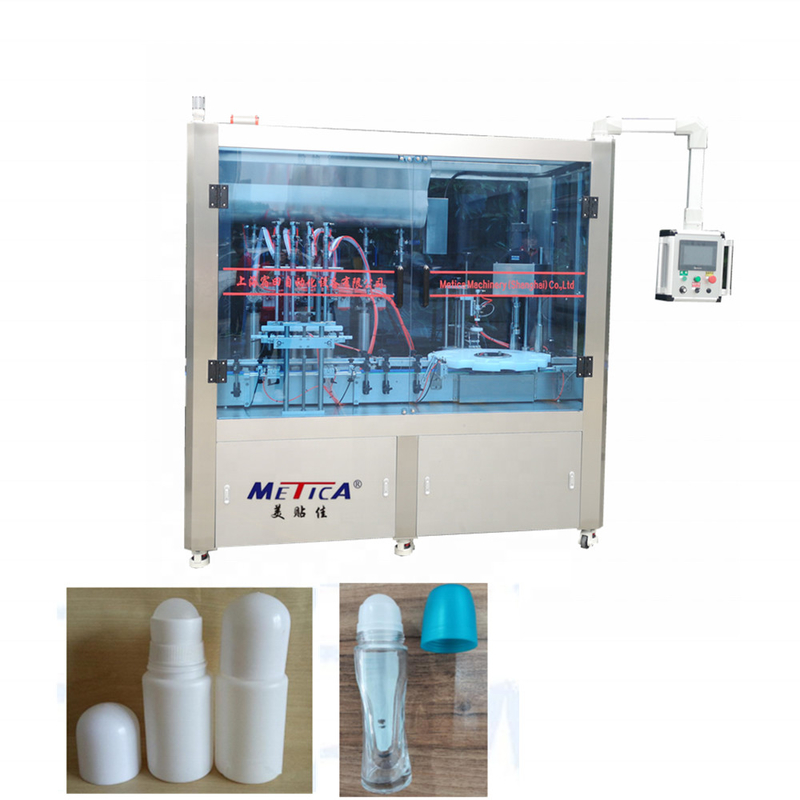

500ml Deodorant Liquid Monoblock Filling Capping Machine 2000BPH

Product Overview

50-500ml Deodorant Filling Plugging-In Capping In One Roll-On Bottle Monoblock Filling And Capping Machine

Brief Introduction

Widely used in pharmaceutical and health care industries for 10-500ml plastic or glass bottle filling and capping
Applications include alcohol, hand soap, oral liquid, topical agents, syrup, vaccine, and nail water

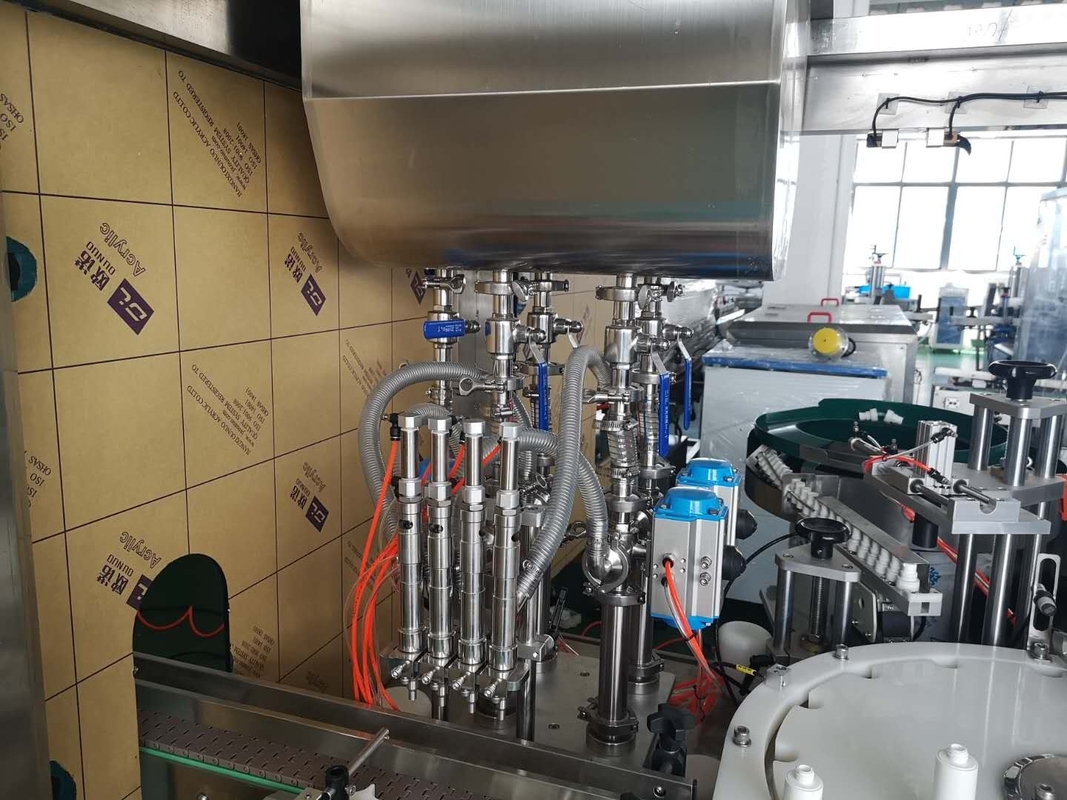

Features 4 nozzles piston type filling with rotating plate positioning capping method
No bubble, no spill operation with accurate filling and excellent performance
Easy to maintain and operate
Optional accessories: dust cover, glass pump, stainless steel pump, ceramic pump, or peristaltic pump

Specifications & Features

Different bottle types require changing the table and lifter parts
Optional anti-dripping tray available near filling nozzles
Four filling nozzles and one capping station with one capping head
PLC controlled for easy operation with touch screen interface
Applicable to both glass and plastic bottles
Widely used in cosmetics and health care industries
Cap compatibility: common screw cap, anti-theft ring screw cap, spiral cap, press-in-cap, aluminum cap

Technical Parameters

Parameter	Specification
Speed	1200-2000bph (customizable)
Filling Accuracy	>=99%
Filling Volume	100-500ml (can be customized)
Filling Method	Servo motor + piston
Power Supply	220V 50hz 2kw
Bottles Applicable	Glass dropper bottle, plastic bottle
Caps Applicable	Press caps / screw caps / Dropper cap
Application	Liquid or viscosity liquid
Feature	PLC, touch screen, fully automatic

Product Images

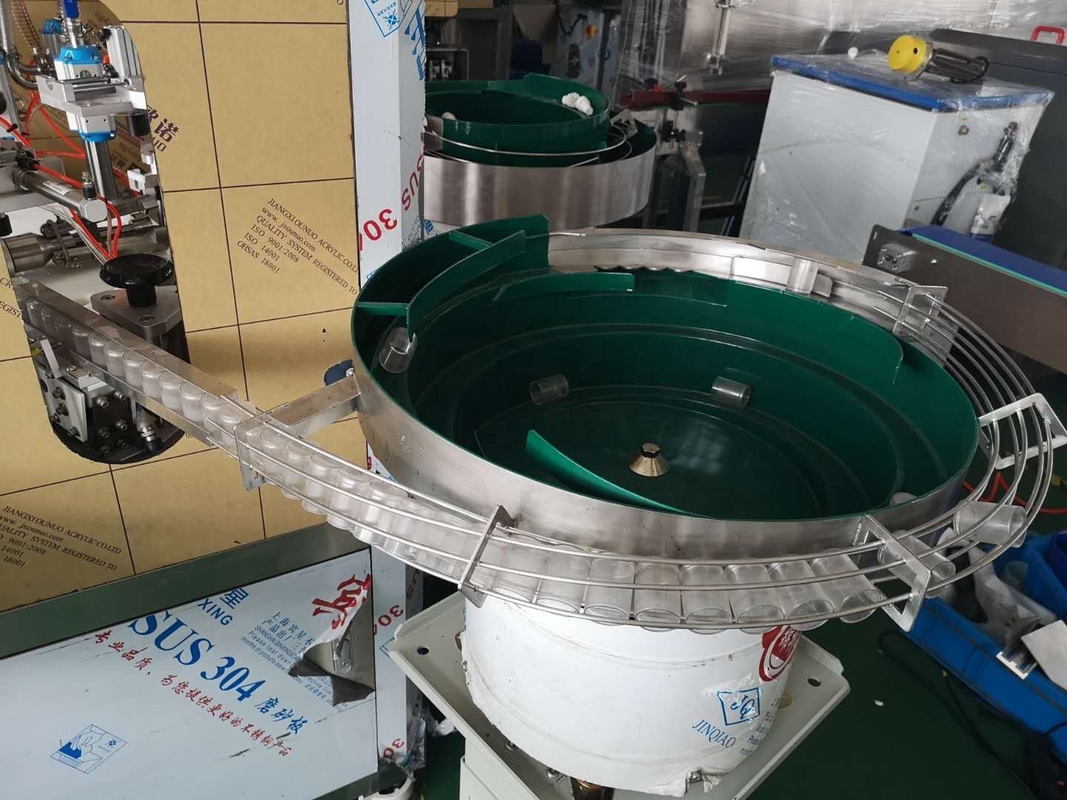

Cap Feeder

Samples Display

About Metica Machinery

Metica Machinery (Shanghai) Co., Ltd. established in 2008, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line.

We are located in Shanghai, very convenient in factory visiting, and goods shipping.

We have more than ten years experience in automatic packaging machinery. Since the date of establishment, our company has always been pursuing the best product quality and service. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can also provide customers with the manufacture and development of various non-standard machines. We make machines as per GMP Standard. In addition, we have obtained CE certificates.
