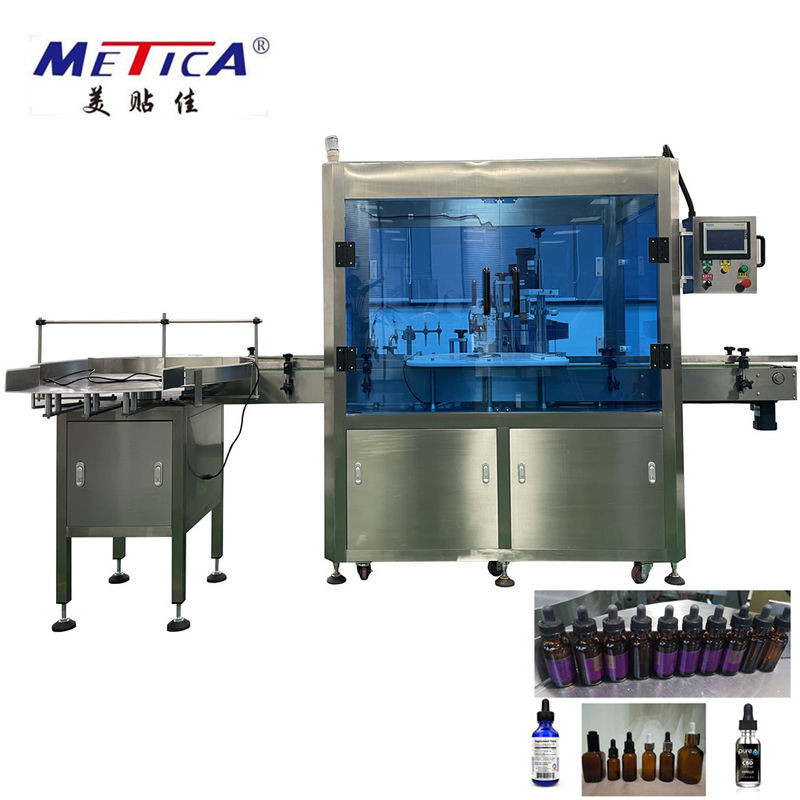

Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 8000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Essential Oil Bottle Filling Capping Machine Application: For Essential Oil Bottle Filling And Capping
Capacity: 1000-2000BPH(can Be Customized) Filling Accuracy: > 99%
Machine Size: 250*135*165 Cm³ Warranty: 1 Year Warranty
Type: Essential Oil Filling Machine, Capping Machine Monoblock Automatic Grade: Full Automatic Filling And Capping
Filling Volume: 10-50ml(customizable) Weight: Around 350kg

Product Description

Automatic Glass Dropper Bottle Filling Machine Cbd Oil Cartridge And Monoblock Filling And Capping Machine



Application

  • The machine is good for Glass dropper bottle, Plastic and similar bottles.
  • The machine is used for all kinds of liquid products filling and capping, mainly small bottle with volume 10-50 ml.
  • E-Cigarette, Health Care Oil, Eye Drop, Glue, Perfume, Essential Oil and similar products is available.

Spec and Feature

  • The whole machine is designed especially for 10-50ml liquid filling, capping
  • The line speed is 20-30 bottles per minute
  • Famous branded electrical parts guarantee the line working stable and a longer working life
  • Adopts peristaltic pump or piston pump, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • Suitable for single, mass production.
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1 workers



Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 1/2/4/6 filling nozzles
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping
  • We can make fully automatic machine with higher speed for you as well





Speed  1500-2000bph (customizable)
Filling accuracy  >=99%
Filling volume 10-50ml(can be customized)
Filling method

servo motor + piston or peristaltic pump

Power supply 220V 50hz 2kw
Bottles applicable glass dropper bottle, plastic bottle
Caps applicable press caps/ screw caps/Dropper cap

Application

Liquid or viscosity liquid
Feature PLC, touch screen, fully automatic



Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 0

Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 1



Cap feeder:

Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 2

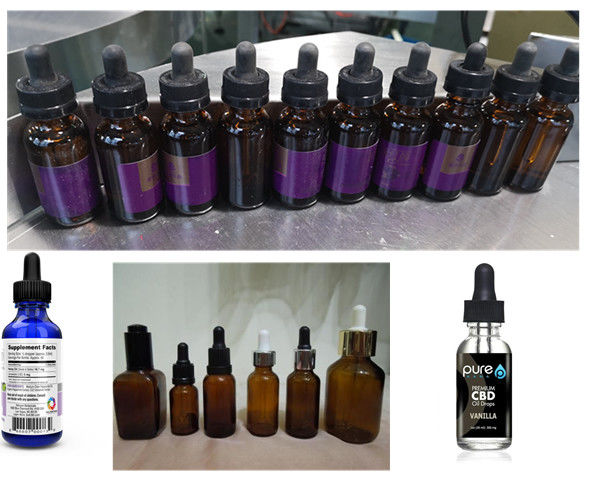

Samples display:



Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 3Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 4

Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 5



Service flow:

Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 6





Pre-sale Service:

Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 7



Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 8



Packing&Shipping:

Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 9



After-sale service:

Glass Dropper Bottle Monoblock Filling And Capping Machine Essential Oil Bottle Filling Machine 10



Metica Machinery (Shanghai) Co., Ltd. established in 2014, our company is a professional packaging machinery manufacturer integrating research, manufacture, sales and after-sales service. Our main products are labeling machine, filling machine, capping machine, sealing machine and packaging machine line. We are located in Shanghai, very convenient in factory visiting, and goods shipping. We have more than ten years experience in automatic packaging machinery. We make machines as per GMP Standard.
