30ml Automatic Bottle Filling And Capping Machine 2kw for Oil Cartridge

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTFC-1000
Minimum Order Quantity: 1 SET
Price: USD 10000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: 50ml Glass Dropper Bottle Filling Capping Machine Application: Beverage,Food,Chemical,Medical
Capacity: 1500-2000 BPH(can Be Customized) Filling Accuracy: More Than 99%
Machine Size: 250*135*165 Mm³ Warranty: One-year
Type: Filling Machine, Capping Machine Monoblock Automatic Grade: Automatic Filling,cap Loading And Capping
Filling Volume: 10-50ml(can Be Customized) Weight: About 300kg
High Light:

Automatic Bottle Filling And Capping Machine

,

30ml Bottle Filling And Capping Machine

,

2kw bottle filling capping machine


Product Description

30ml Glass Dropper Bottle Filling Machine Cbd Oil Cartridge And Essential Oil Monoblock Filling And Capping Machine



Application

  • The machine is good for Glass dropper bottle, Plastic and similar bottles.
  • The machine is used for all kinds of liquid products filling and capping, mainly small bottle with volume 10-50 ml.
  • E-Cigarette, Health Care Oil, Eye Drop, Glue, Perfume, Essential Oil and similar products is available.

Spec and Feature

  • The whole machine is designed especially for 10-50ml liquid filling, capping
  • The line speed is 20-30 bottles per minute
  • Adopts peristaltic pump or piston pump, high filling precision. No bottle, no fill, no drop, no leak
  • Touch screen, easy operate and adjust human interface. English operation interface
  • The machines have emergency stop Button and automatic interrupt device for safe operation
  • Labors need: 1 workers



Work flow:

  • Manually load bottles on conveyor or turntable(optional)
  • Automatic filling with 2 filling nozzles(customizable)
  • One cap loading station for loading cap automatically
  • One capping station for capping automatically
  • Push out bottle on conveyor after filling and capping





Speed  1500-2000bph (customizable)
Filling accuracy  more than 99%
Filling volume 10-50ml(can be customized)
Filling method

servo motor + piston or peristaltic pump

Power supply 220V 50hz 2kw
Bottles applicable glass dropper bottle, plastic bottle
Caps applicable press caps/ screw caps/Dropper cap

Application

Liquid or viscosity liquid
Feature PLC, touch screen, fully automatic

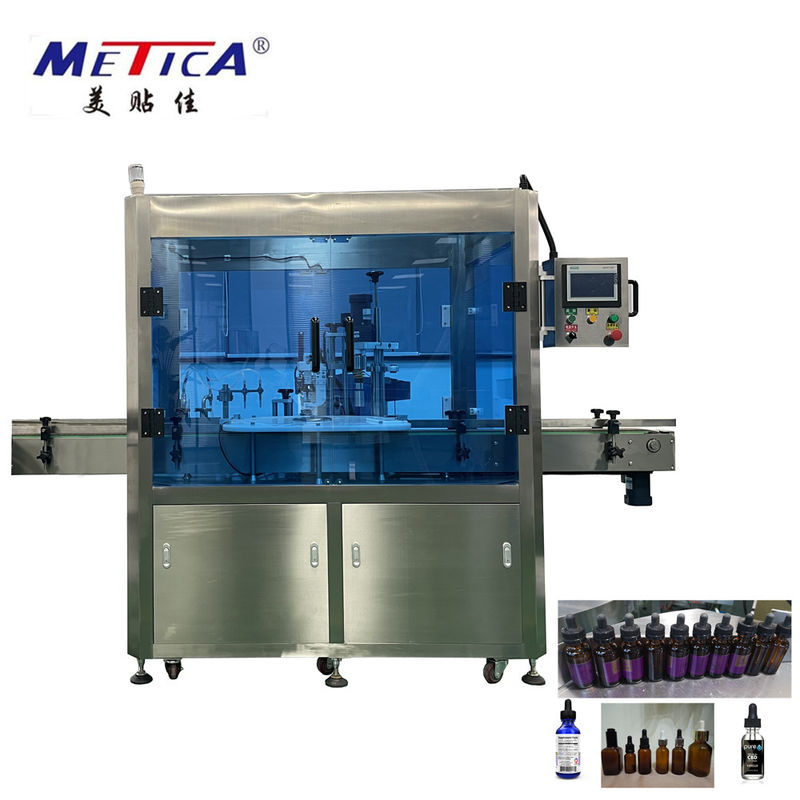

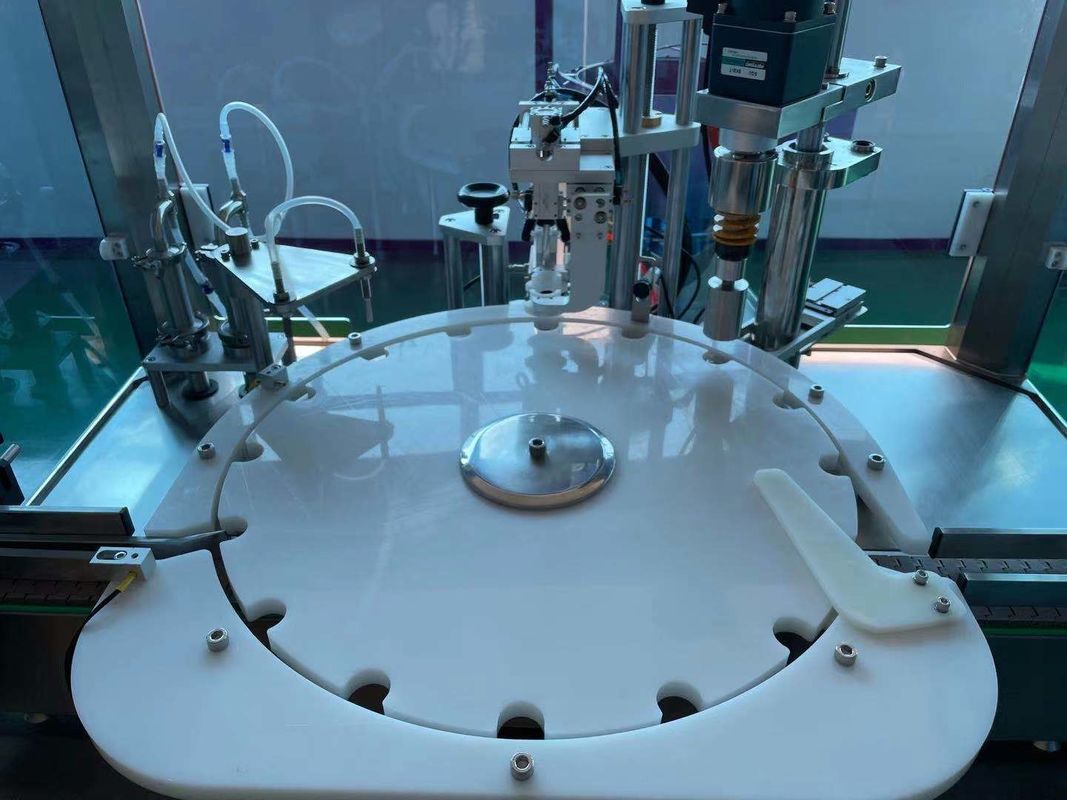

30ml Automatic Bottle Filling And Capping Machine 2kw for Oil Cartridge 0

30ml Automatic Bottle Filling And Capping Machine 2kw for Oil Cartridge 1

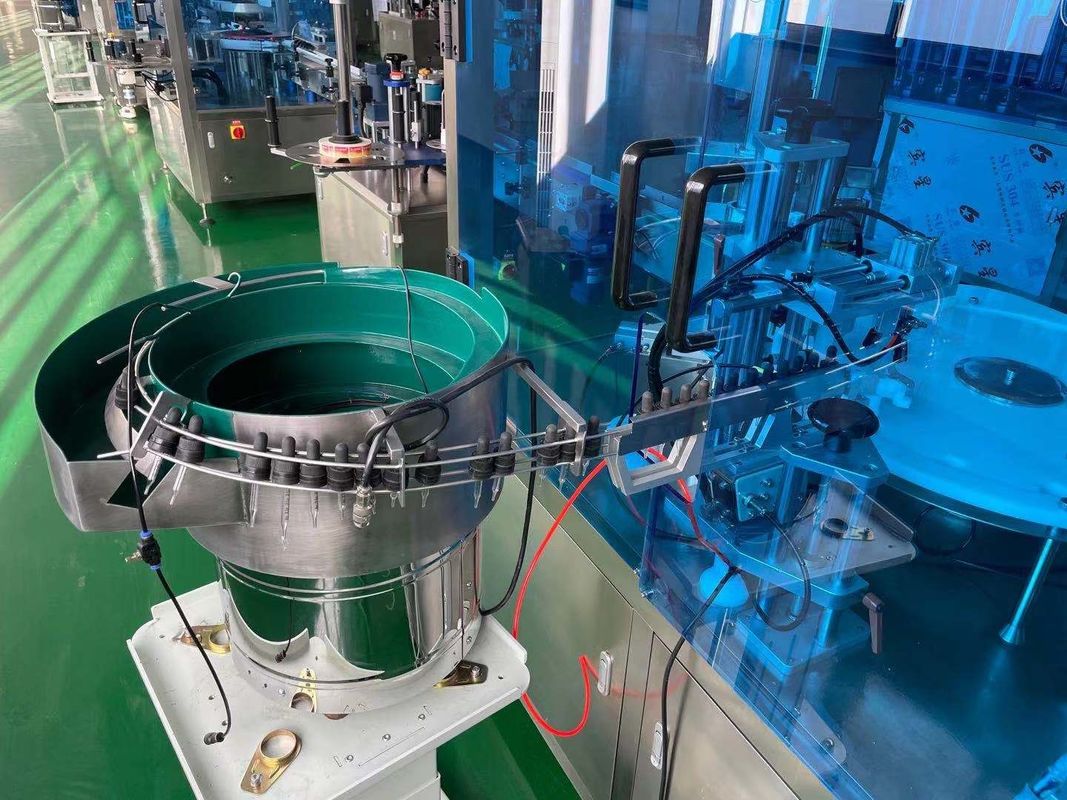

Cap feeder:

30ml Automatic Bottle Filling And Capping Machine 2kw for Oil Cartridge 2



Samples display:



30ml Automatic Bottle Filling And Capping Machine 2kw for Oil Cartridge 330ml Automatic Bottle Filling And Capping Machine 2kw for Oil Cartridge 4

30ml Automatic Bottle Filling And Capping Machine 2kw for Oil Cartridge 5
