High Speed Perfume Bottle Filling Machine 1500-2500BPH With 4 6 12 Nozzles

Basic Information
Place of Origin: Shanghai
Brand Name: METICA
Certification: CE
Model Number: MTVF-1000
Minimum Order Quantity: 1 SET
Price: USD 13000-20000/SET
Packaging Details: Fumigation-free wooden boxes that meet international standards
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 100 SETS PER MONTH
Detail Information
Name: Perfume And Foamy Liquid Filling Machine Application: For Foamy Liquid Products Perfume...
Capacity: 1500-2500 BPH (with 6 Filling Nozzles) Filling Accuracy: >99%
Machine Size: 240*135*173 Cm Warranty: 1 Year
Automatic Grade: Automatic Driven Type: Electric
Voltage: 220V, 50/60Hz (customizable) Packaging Type: Plastic Bottle And Glass Bottle Etc..
Filling System: Overflow Filling System
High Light:

2500BPH Perfume Bottle Filling Machine

,

12 Nozzles Perfume Bottle Filling Machine

,

2500BPH high speed bottle filling machine


Product Description

Automatic Vacuum Overflow Type Foamy Liquid With Low To Medium Viscosity Bottle Filling Machine



Application

  • This machine used for foamy liquid with low to medium viscosity,such as Perfumr, Disinfectant and Medical Alcohol, hand sanitizer
  •  If change the shape of bottle, just need adjust the convey belt protect hinder, the hinder bottle board, and the distance of filling heads. Simple and convenient, one machine can used many kinds of bottle.

Spec and Feature

  • Adopts vacuum overflow filling system. High precision filling machine, which can adjust the filling volume according to the different volume of bottles.
  • Adopts 6 filling nozzles, can change to 4/8/10/12/16 filling nozzles or more, the more filling nozzles, the higher capacity.
  • High filling speed and filling precision, no bubble,stable
  • PLC,Touch screen human-computer interface with simple operation
  • Can work alone or join a production line

Parameter:

Filling nozzles
4/6/8/10/12 nozzles
Filing methods
vaccum,overflow type
Application
foamy liquid with low to medium viscosity
Power/Air supply
220V 50/60Hz 1.5kw; 0.8mpa
Feature

PLC, touch screen,high accuracy

Filling volume 100-1000ml, 200-2000ml(can be customized)
Filling accuracy >99%






High Speed Perfume Bottle Filling Machine 1500-2500BPH With 4 6 12 Nozzles 0

High Speed Perfume Bottle Filling Machine 1500-2500BPH With 4 6 12 Nozzles 1High Speed Perfume Bottle Filling Machine 1500-2500BPH With 4 6 12 Nozzles 2High Speed Perfume Bottle Filling Machine 1500-2500BPH With 4 6 12 Nozzles 3

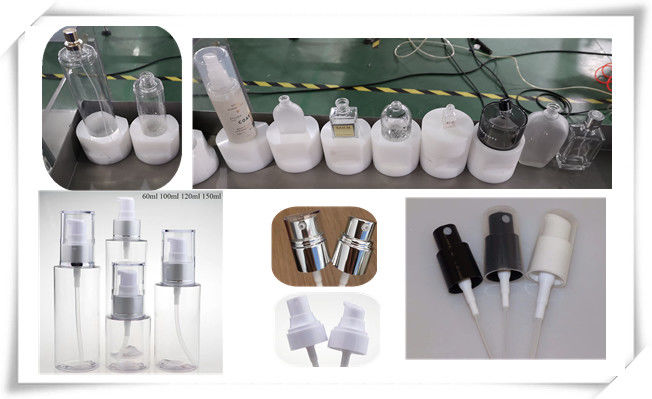

Samples display:

High Speed Perfume Bottle Filling Machine 1500-2500BPH With 4 6 12 Nozzles 4
