Place of Origin:
SHANGHAI, CHINA
Brand Name:
METICA
Certification:
CE
Model Number:
MTFCP-1000

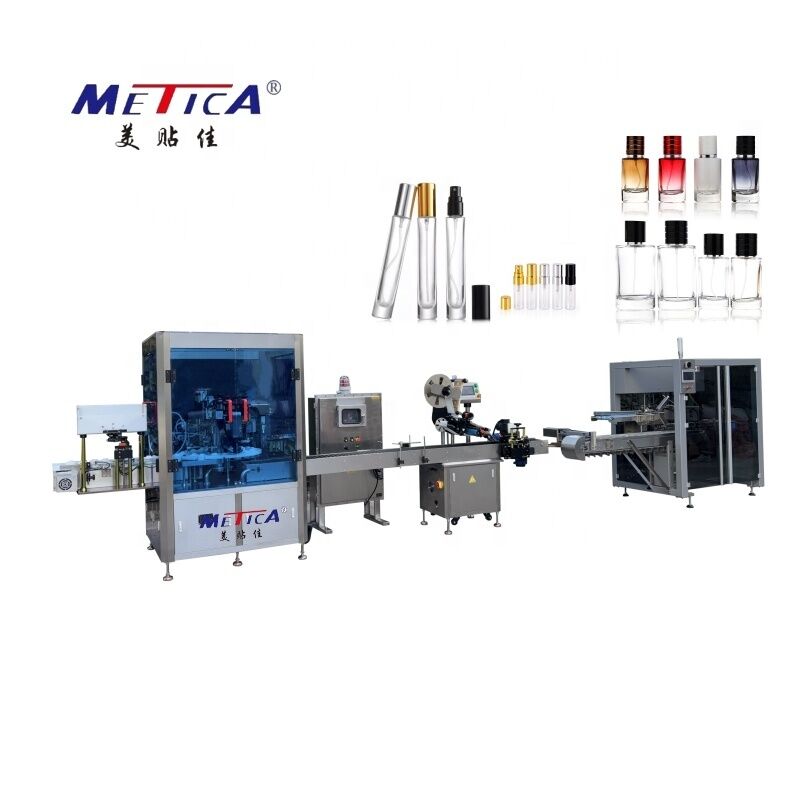

This explosion-proof automatic monoblock machine integrates perfume filling, crimping and labeling for alcohol-based fragrances. It adopts anti-drip filling nozzles to prevent dripping and material waste. The robust crimping system provides consistent, tight sealing for spray pumps. Quick-change molds require minimal adjustments during bottle size changeover. Stable and safe operation for glass perfume spray bottles in fragrance and cosmetic plants.
![]()
![]()
![]()
![]()
This monoblock machine is widely used for filling, crimping and labeling alcohol-based fragrances, perfumes and eau de toilette. It works well with various glass spray bottles commonly adopted in cosmetic, fragrance and private-label manufacturing. Suitable for small batch trial production as well as mass continuous production.
|
Technical Parameters |
|
|
Speed |
1200-1800bph (Related to product) |
|
Filling accuracy |
level stable |
|
Filling volume |
10-100ml |
|
Filling method |
Servo motor, gear pump, with suction |
|
Capping qualified |
>99% |
|
Power supply |
220V 50hz 4.5kw |
|
Air supply |
0.7mpa, 150LpM |
|
Machine size |
270*220*200cm |
|
Bottles applicable |
a wide shape range depend on base |
|
Caps applicable |
Crimping caps |
|
Materials applicable |
liquid or low viscosity products |
|
Workflow |
|
|
1 |
Bottles feeder into puck manually |
|
2 |
Bottle conveyor to the rinsing station for cleaning |
|
3 |
Bottle conveyor to the filling station for filling |
|
4 |
Spray caps feeder from the vibration plate |
|
5 |
Pump caps inert bottles, then crimping |
|
6 |
Outer caps feeder from the vibration plate |
|
7 |
Outer caps put on the bottles, then pressing |
|
7 |
Unlading bottles automatically |
|
|
|
